Crankcase Pressure Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

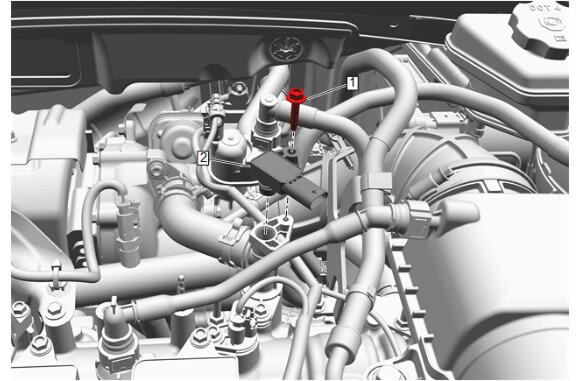

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Air Cleaner Outlet Resonator Replacement
1	Crankcase Pressure Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in)
2	Crankcase Pressure Sensor Procedure Disconnect the crankcase pressure sensor electrical wiring harness connector. Clean and inspect O-ring and apply engine oil. Adhesives, Fluids, Lubricants, and Sealers

Callout

Component Name

Crankcase Pressure Sensor Bolt

CAUTION:

Tighten
8.5 N.m (75 lb in)

Crankcase Pressure Sensor

Procedure

Disconnect the crankcase pressure sensor electrical wiring harness connector.
Clean and inspect O-ring and apply engine oil. Adhesives, Fluids, Lubricants, and Sealers
