Crankshaft Position Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

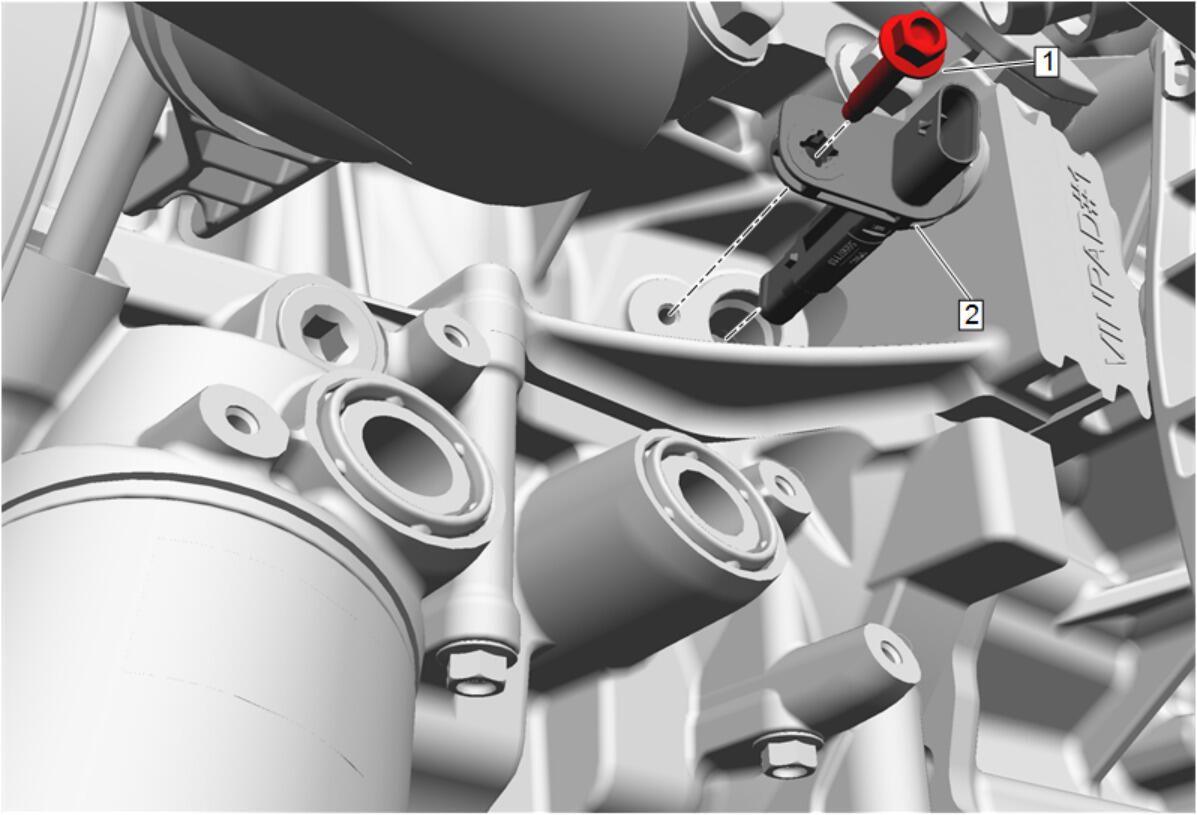

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Front Compartment Air Deflector Replacement (Base) , or Front Compartment Air Deflector Replacement (Oil Filter Access)
1	Crankshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in)
2	Crankshaft Position Sensor Procedure Disconnect the crankshaft position sensor electrical connector. Perform the crankshaft position variation learn. Crankshaft Position Variation Learn

Callout

Component Name

Crankshaft Position Sensor Bolt

CAUTION:

Tighten
8.5 N.m (75 lb in)

Crankshaft Position Sensor

Procedure

Disconnect the crankshaft position sensor electrical connector.
Perform the crankshaft position variation learn. Crankshaft Position Variation Learn
