Engine Oil Pressure Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

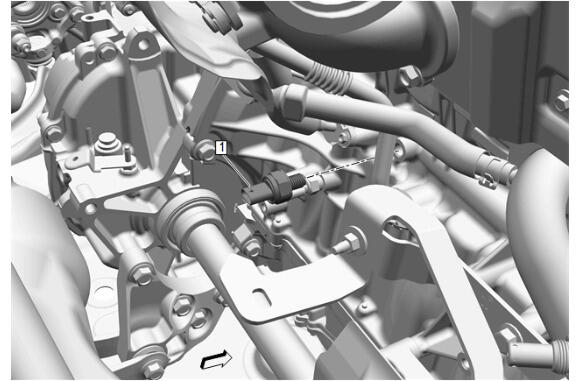

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
1	WARNING: Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury. Engine Oil Pressure Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure Disconnect the electrical connector.Tighten 35 N.m (26 lb ft)
