Engine Oil Temperature Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

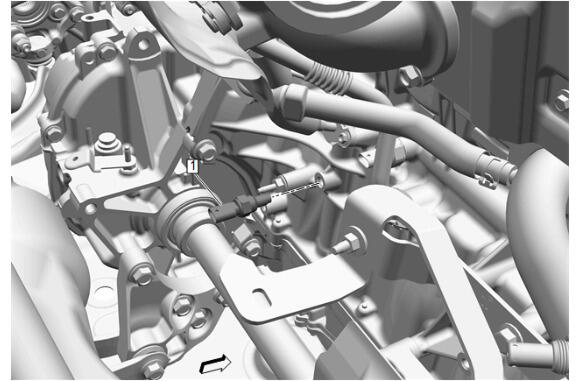

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
1	Engine Oil Temperature Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure  Disconnect the electrical connector. Tighten  20 N.m (15 lb ft)
