Installation Procedure

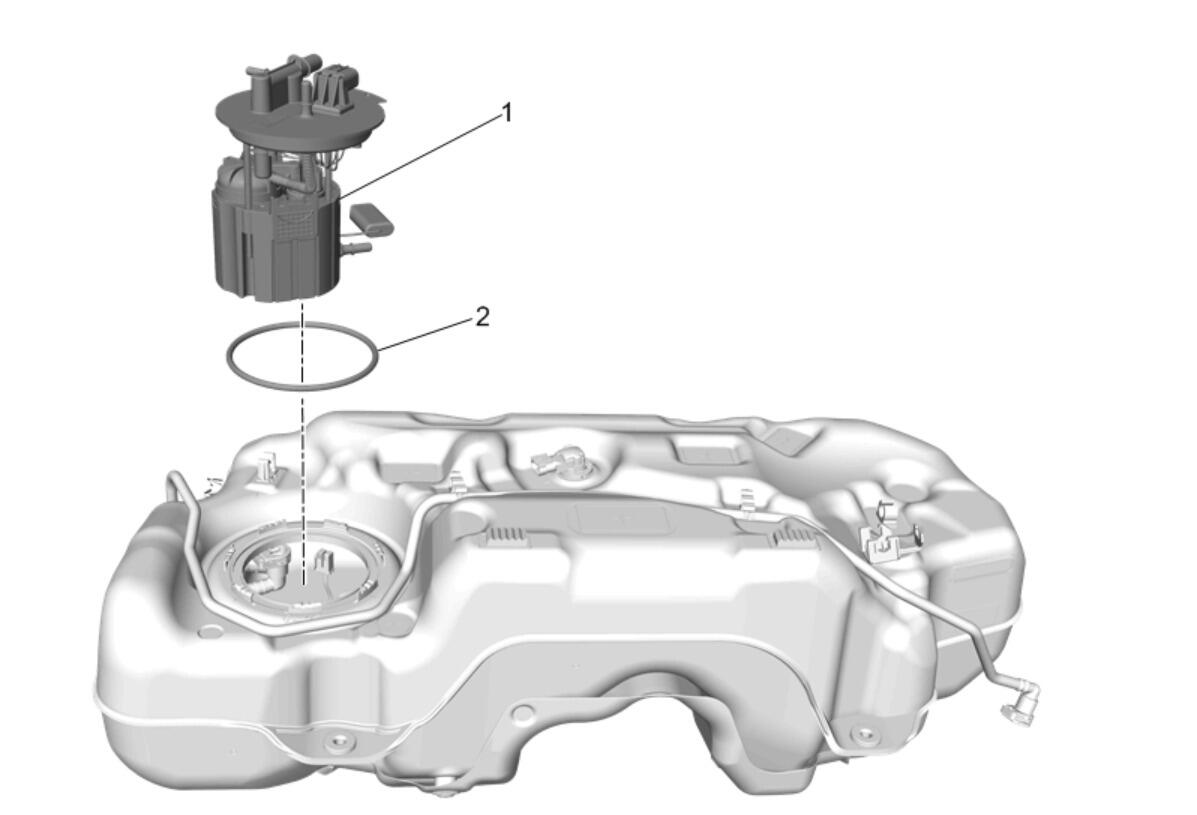

  1. GM5049548Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Seal (2) - Install NEW

  2. Fuel Tank Fuel Pump Module (1) - Install

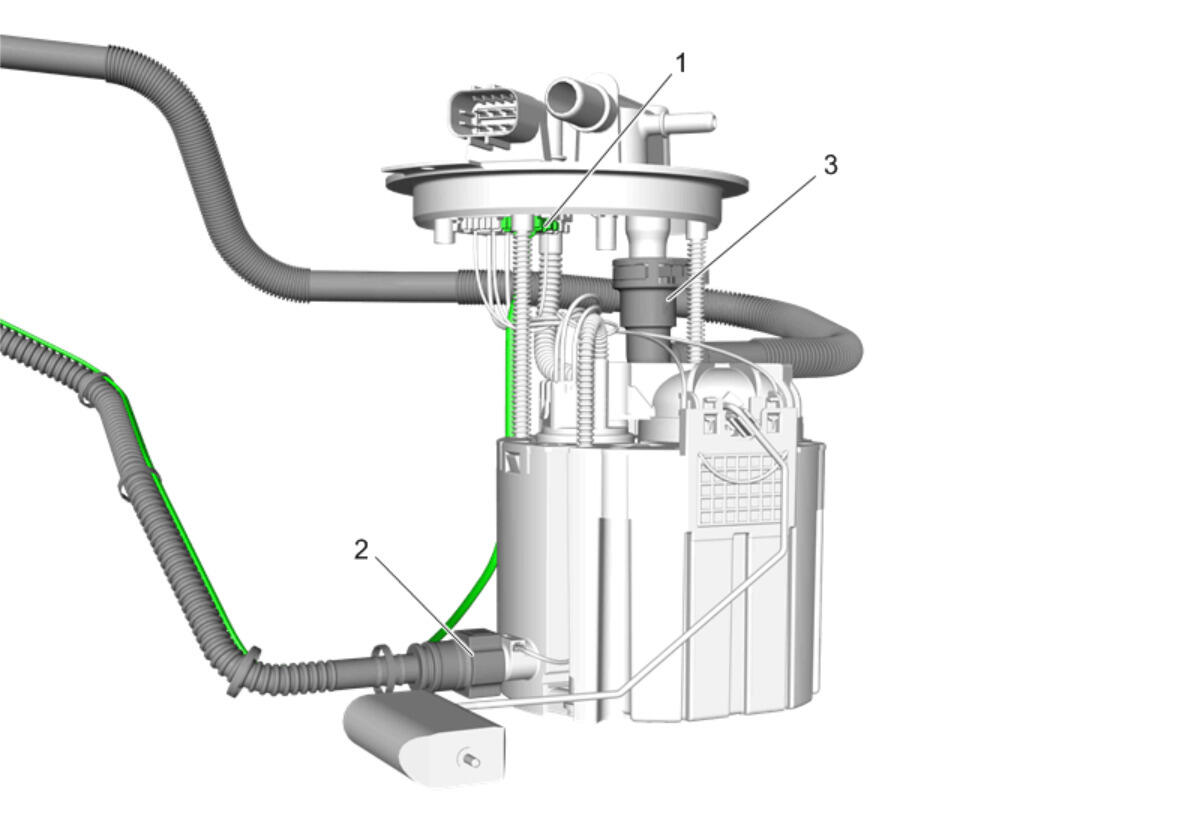

  3. GM5049555Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Vent Pipe (3) - Connect - Plastic Collar Quick Connect Fitting Service

  4. Transfer Pipe (2) - Connect - Plastic Collar Quick Connect Fitting Service
  5. Electrical Connector (1) - Connect

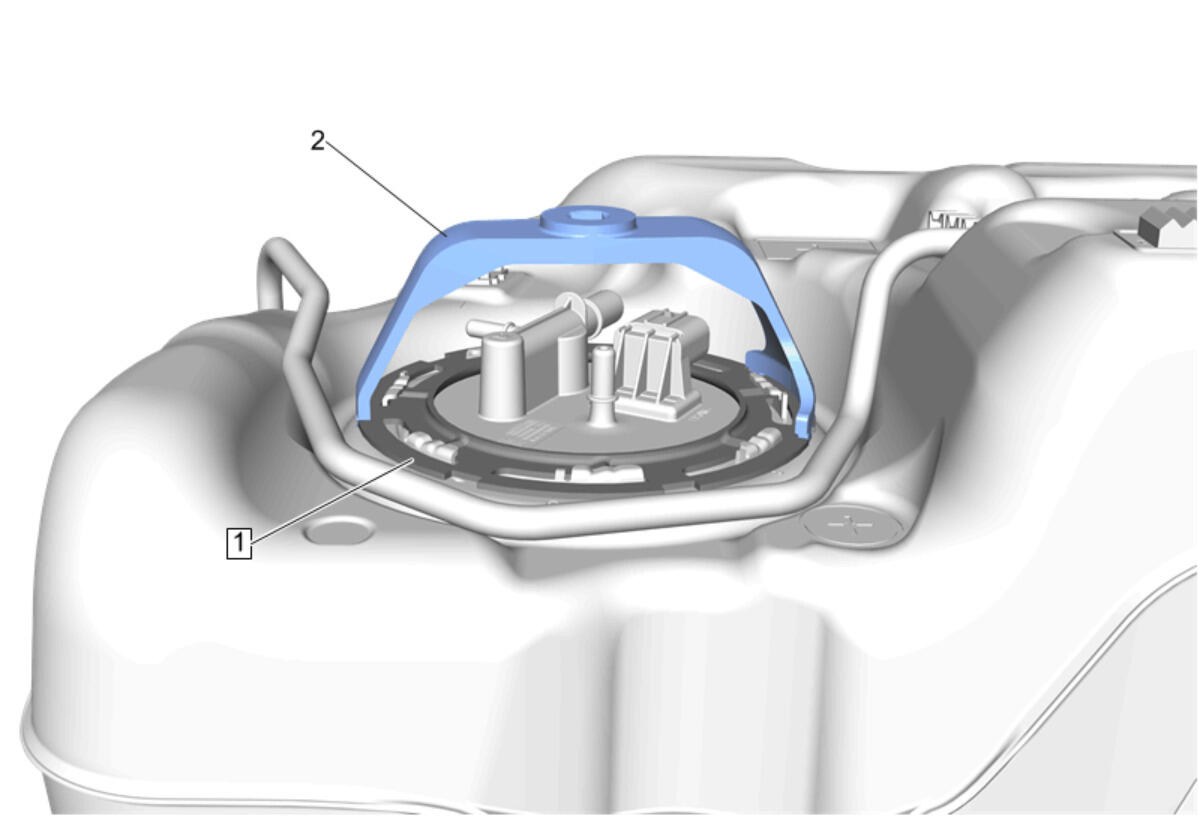

  6. GM5049678Courtesy of GENERAL MOTORS COMPANY

    Fuel Sender Retainer (1) - Install - CH - 45722  Fuel Sender Lock Ring Wrench (2)

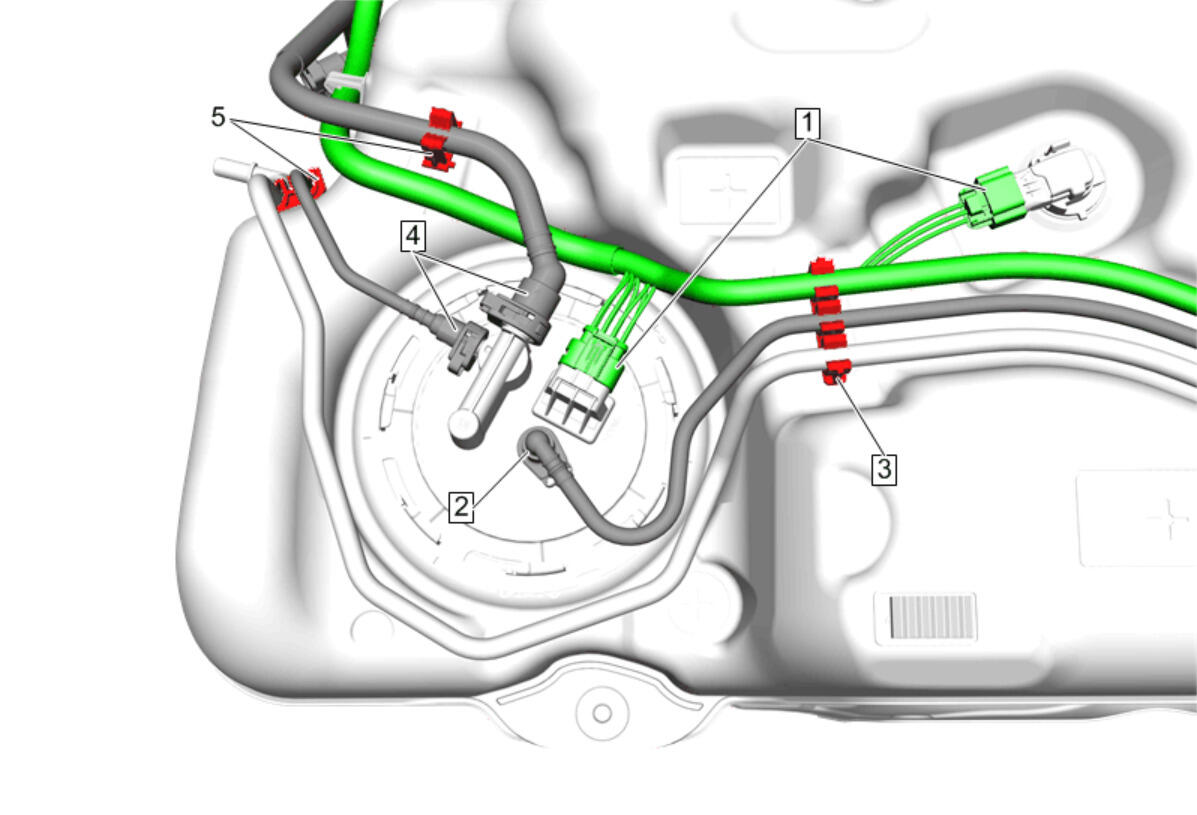

  7. GM5049535Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Vent Pipe (4) @ Retainer (5) - Install [2x]

  8. Fuel Tank Vent Pipe (4) - Connect [2x] - Plastic Collar Quick Connect Fitting Service
  9. Fuel Feed Pipe (2) @ Retainer (3) - Install
  10. Fuel Feed Pipe (2) - Connect - Plastic Collar Quick Connect Fitting Service
  11. Electrical Connector (1) - Connect [2x]
  12. Fuel Tank - Install - Fuel Tank Replacement
