Single Use Fasteners and Components

Throttle Body Seal [2x]

Courtesy of GENERAL MOTORS COMPANY

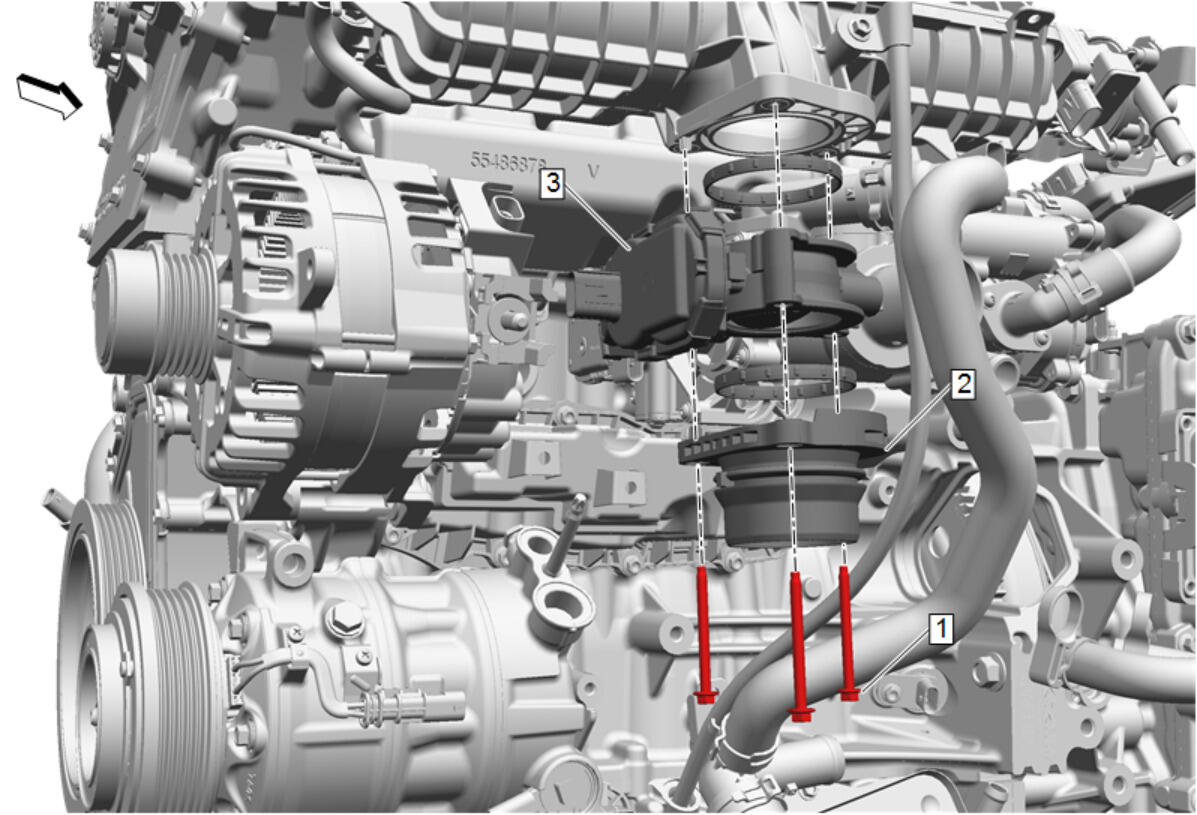

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Lifting and Jacking the Vehicle Charge Air Cooler Outlet Air Hose @ Throttle Body - Reposition - Charge Air Cooler Outlet Air Hose Replacement
1	Throttle Body Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in)
2	Throttle Body Adapter
3	Throttle Body Procedure Disconnect the electrical connectors. Install NEW throttle body gasket/seals. Perform the throttle body idle air flow compensation reset. Throttle Body Idle Air Flow Compensation Reset
