Installation Procedure

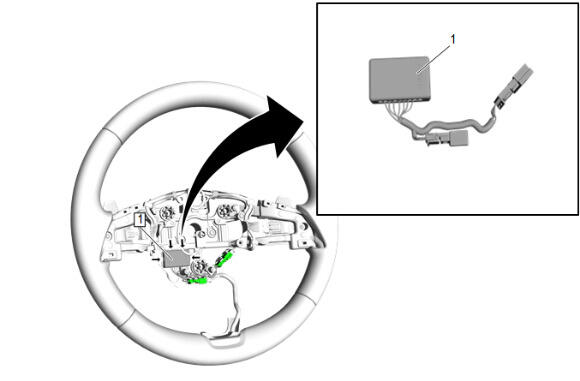

  1. GM6370599Courtesy of GENERAL MOTORS COMPANY

    Heated Steering Wheel Module (1) - Install

  2. Connect the electrical connectors.

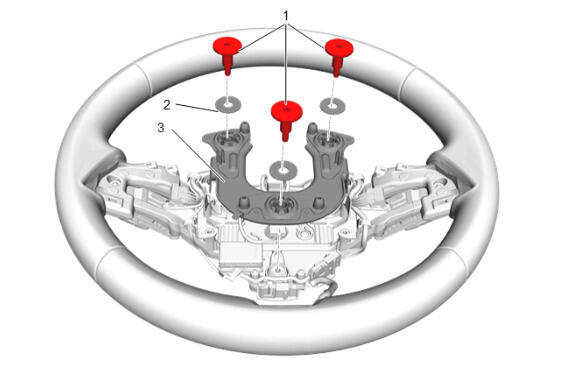

  3. GM6370606Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Horn Contact (3) - Install

  4. Steering Wheel Horn Contact Insulator (2) - Install [3x]
    5. CAUTION:

    Refer to Fastener Caution .

  5. Steering Wheel Horn Switch Bolt (1) - Install and tighten [3x] - Fastener Specifications

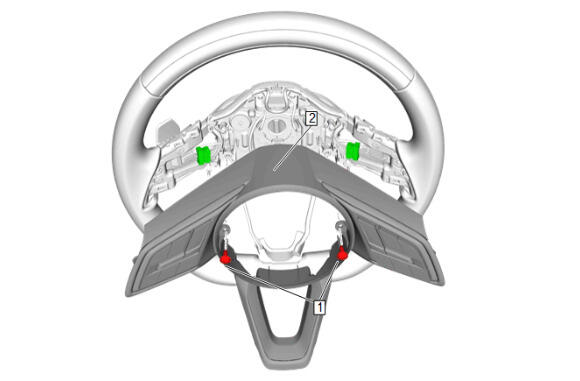

  6. GM6370260Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  7. Steering Wheel Spoke Cover Applique (2) - Install
  8. Steering Wheel Spoke Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
  9. Steering Wheel Shroud - Install - Steering Wheel Shroud Replacement
  10. Enable the SIR System. SIR Disabling and Enabling
