Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

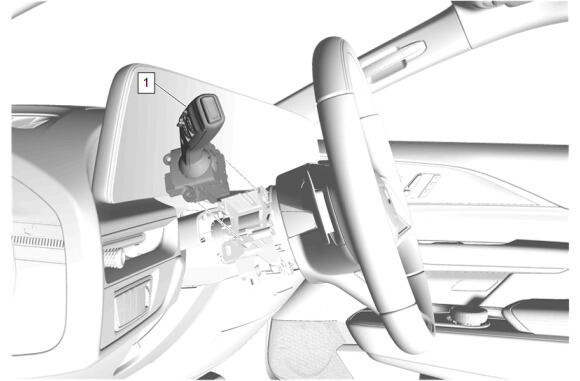

Turn Signal Switch (1) - Install
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution .

Turn Signal Switch Bolt (1) - Install and tighten [2x] - Fastener Specifications
Instrument Panel Steering Column Lower Trim Cover - Install - Instrument Panel Steering Column Lower Trim Cover Replacement
