Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

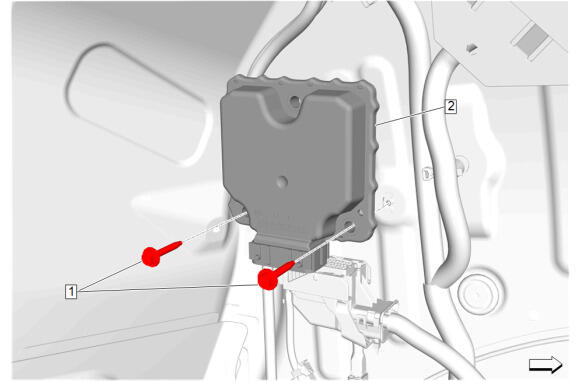

Electronic Suspension Control Module (2) - Install

CAUTION:

Refer to Fastener Caution .

Electronic Suspension Control Module Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

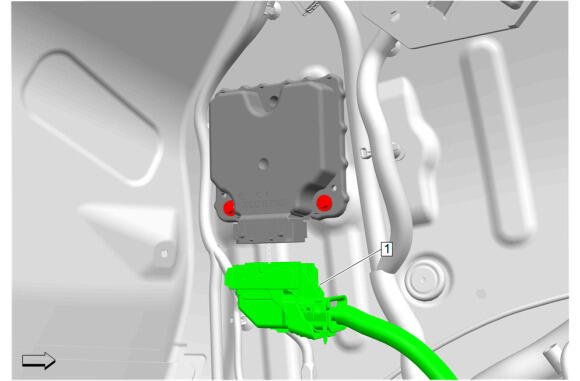

Electrical Connector (1) - Connect
Quarter Lower Rear Trim Panel - Install - Quarter Lower Rear Trim Panel Replacement
