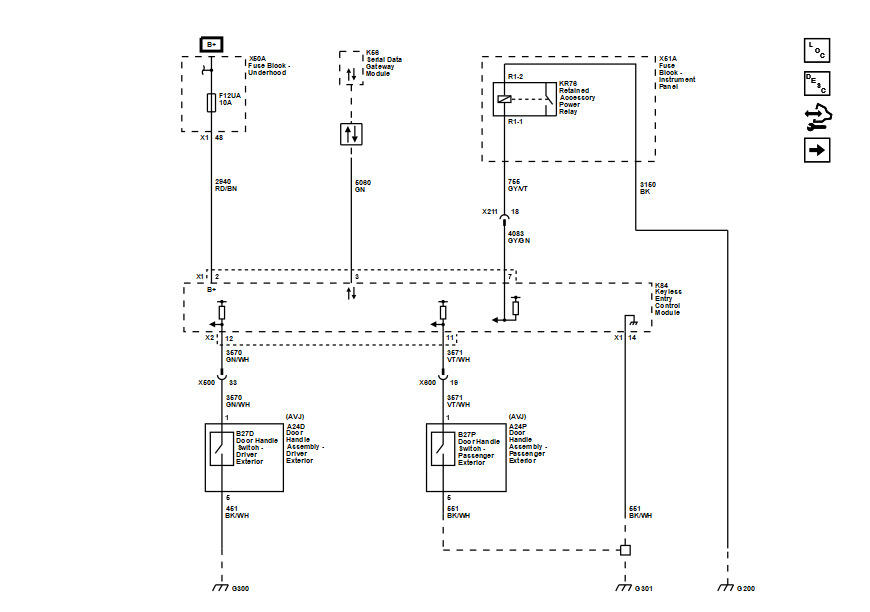

Keyless Entry Control Module Power, Ground, Serial Data, and Passive Entry
Keyless Entry Control Module Power, Ground, Serial Data, and Passive Entry
