Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Wireless Charging System Module Bracket (2) @ Wireless Charging System Module - Install

CAUTION:

Wireless Charging System Module Bolt (1) - Tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Wireless Charging System Module Assembly (2) @ Front Floor Console Stowage Tray - Remove (3) - Install
Wireless Charging System Module Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Stowage Tray (2) - Install
Front Floor Console Stowage Tray Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

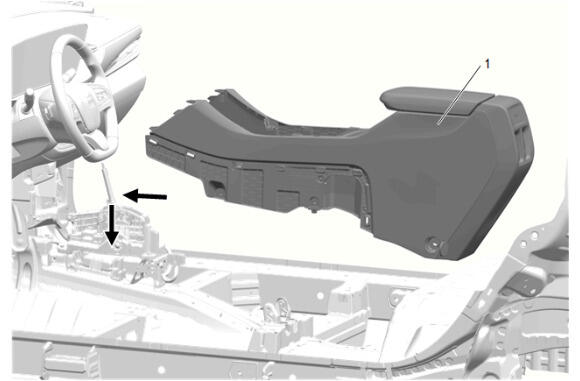

Front Floor Console (1) - Install - Front Floor Console Removal and Installation
