Removal Procedure

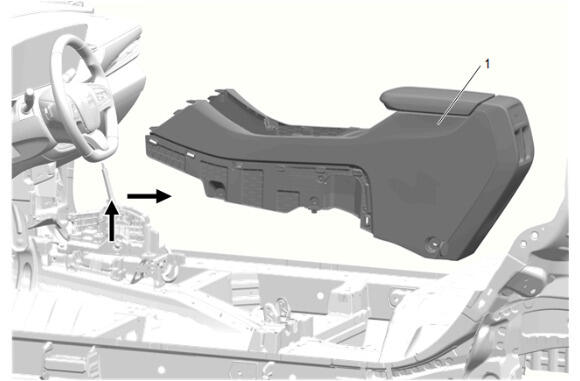

  1. GM5968846Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Remove - Front Floor Console Removal and Installation

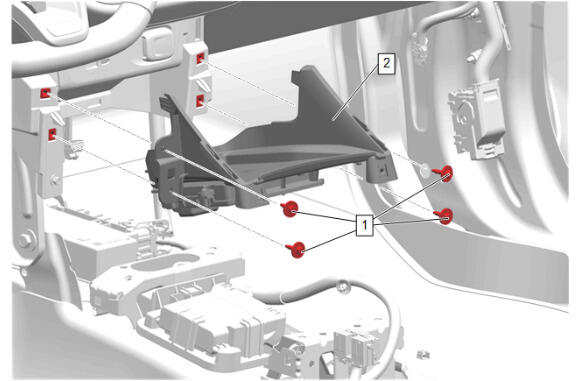

  2. GM5970759Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Stowage Tray Bolt (1) - Remove [4x]

  3. Front Floor Console Stowage Tray (2) - Remove

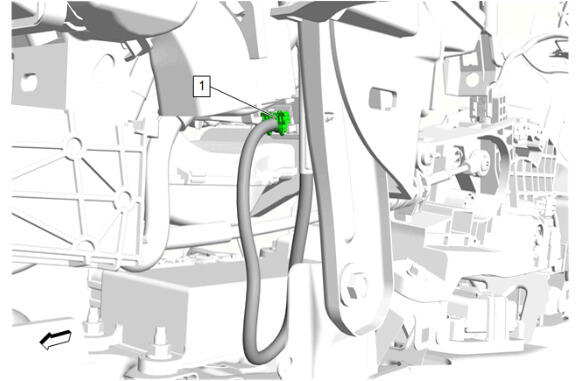

  4. GM5911641Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.(1)

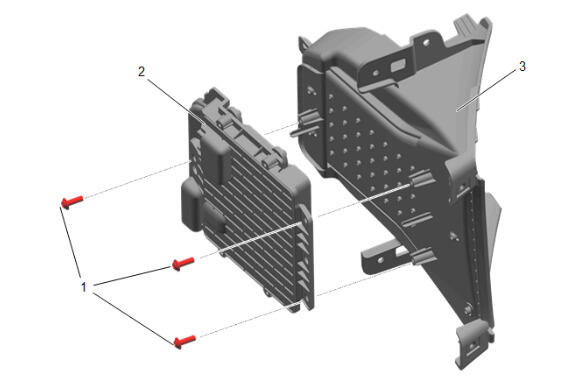

  5. GM5970767Courtesy of GENERAL MOTORS COMPANY

    Wireless Charging System Module Bolt (1) - Remove [3x]

  6. Wireless Charging System Module Assembly (2) @ Front Floor Console Stowage Tray - Remove (3)
  7. GM5918303Courtesy of GENERAL MOTORS COMPANY

    Wireless Charging System Module Bolt (1) - Remove [4x]

  8. Wireless Charging System Module (2) @ Wireless Charging System Module Bracket - Remove
