Control Module

Do not attempt to repair control module. Insure connectors are tight and fully seated. If all other components of system test out okay, replace control module.

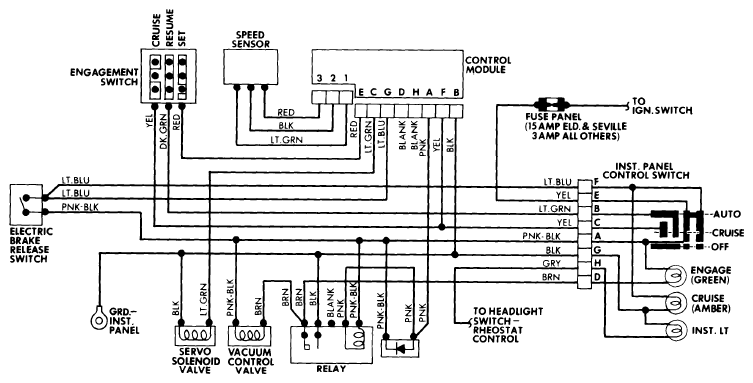

Fig 1: Wiring Diagram of General Motors (Cadillac) Electronic Cruise Control System
G09343999Courtesy of GENERAL MOTORS COMPANY
