Repair and Diagnosis
›
Engine Performance
›
Fuel Delivery
›
Electronic Fuel Injection
›
Wiring Diagrams
Wiring Diagrams

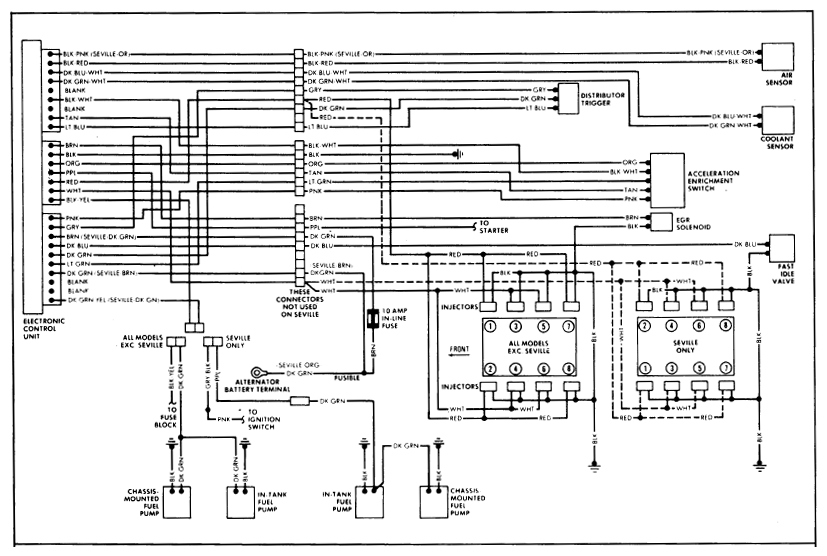

Fig 1: 1975-77 Electronic Fuel Injection Wiring Diagram
Courtesy of GENERAL MOTORS COMPANY

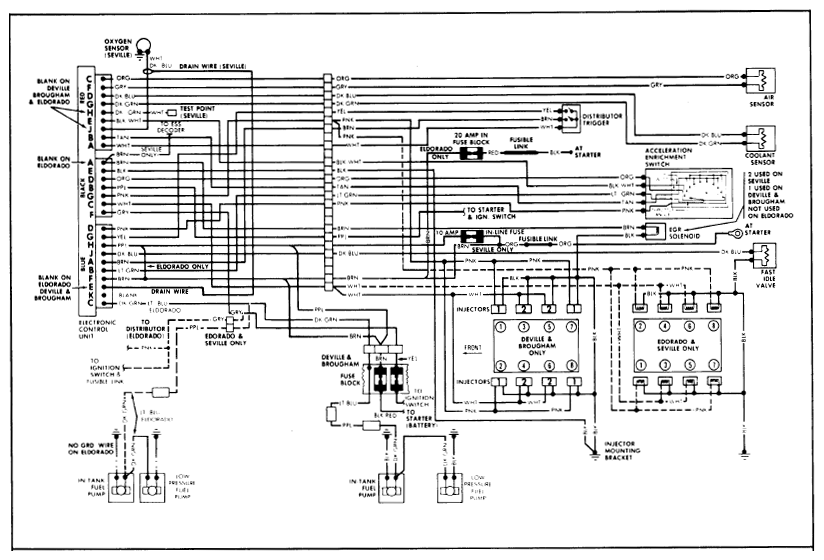

Fig 2: 1978-79 Electronic Fuel Injection Wiring Diagram
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
