Performance Chart

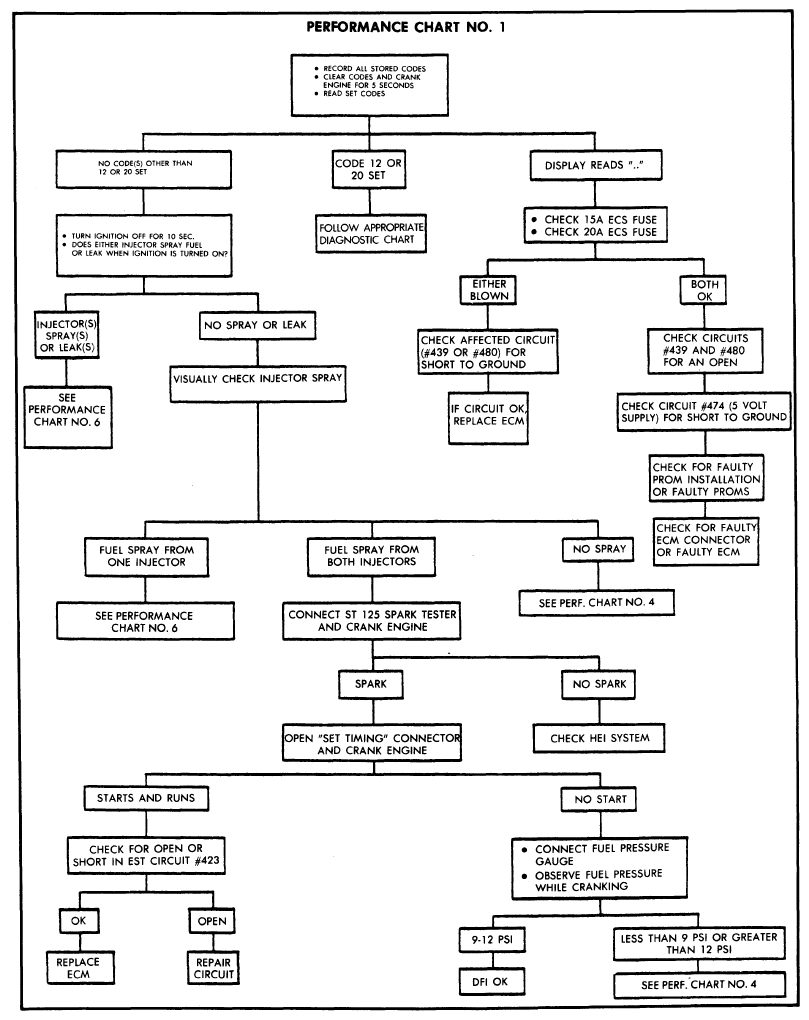

Fig 1: Performance Chart No. 1

G09340073

Courtesy of GENERAL MOTORS COMPANY

Fig 2: Performance Chart No. 2

G09340074

Courtesy of GENERAL MOTORS COMPANY

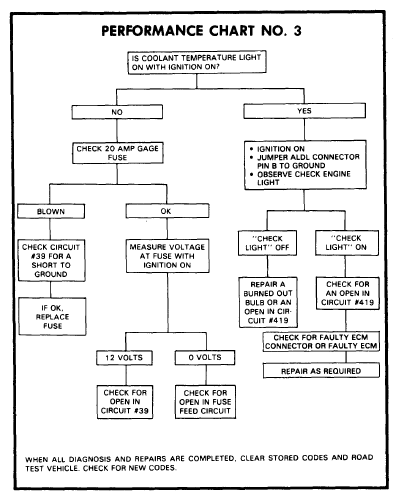

Fig 3: Performance Chart No. 3

G09340076

Courtesy of GENERAL MOTORS COMPANY

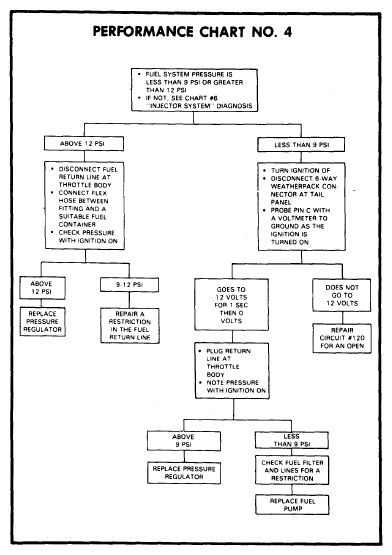

Fig 4: Performance Chart No. 4

G09340075

Courtesy of GENERAL MOTORS COMPANY

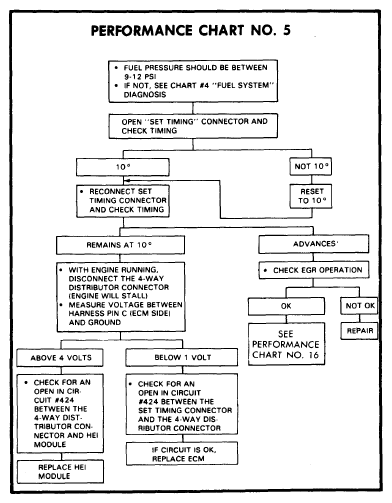

Fig 5: Performance Chart No. 5

G09340077

Courtesy of GENERAL MOTORS COMPANY

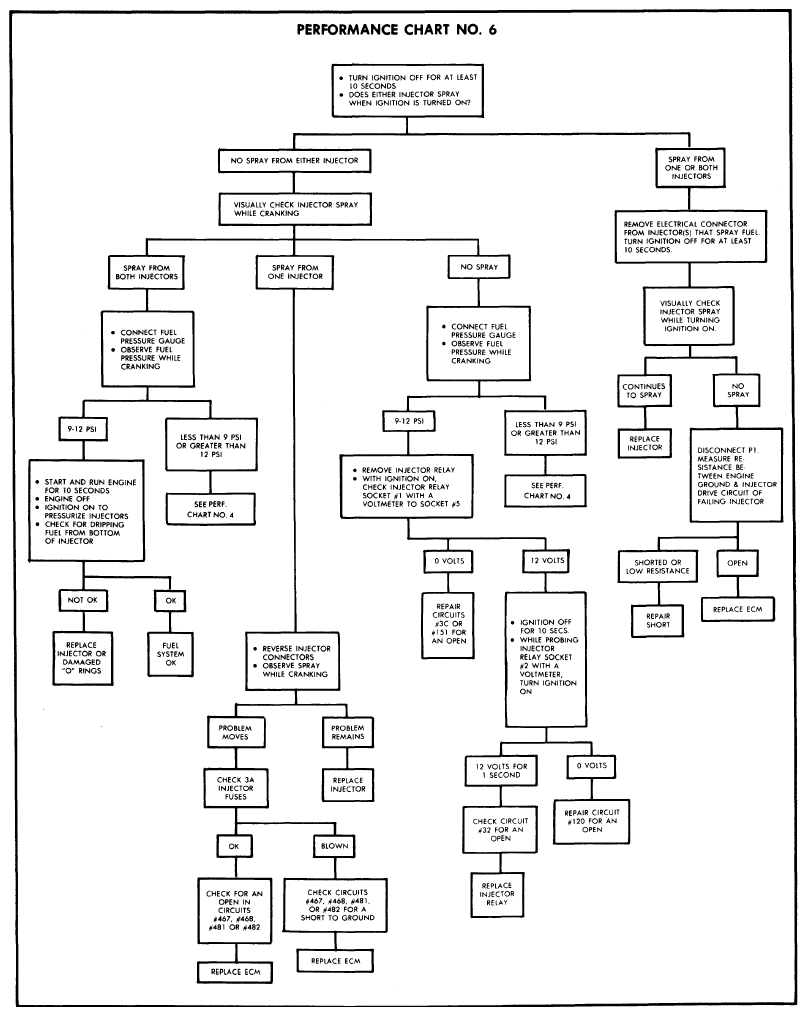

Fig 6: Performance Chart No. 6

G09340078

Courtesy of GENERAL MOTORS COMPANY

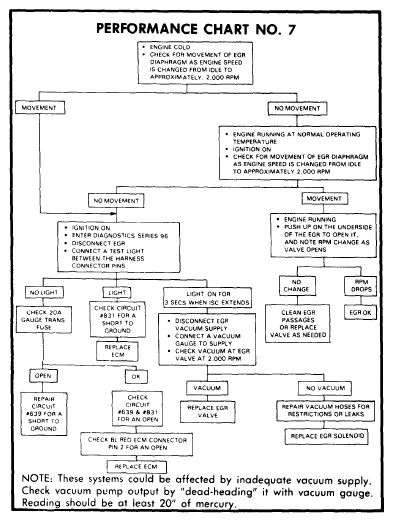

Fig 7: Performance Chart No. 7

G09340079

Courtesy of GENERAL MOTORS COMPANY

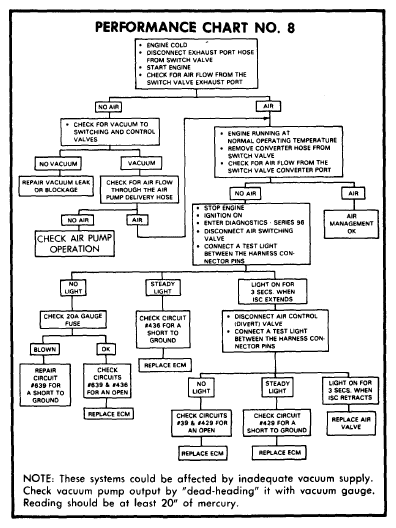

Fig 8: Performance Chart No. 8

G09340081

Courtesy of GENERAL MOTORS COMPANY

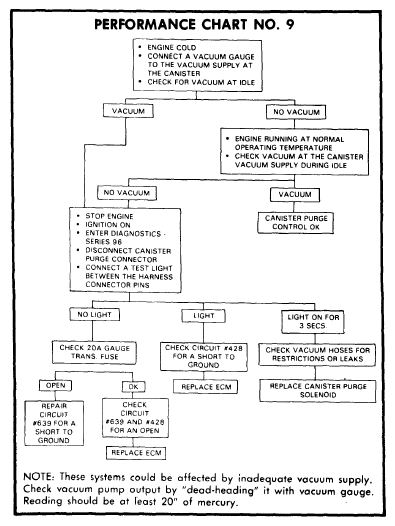

Fig 9: Performance Chart No. 9

G09340080

Courtesy of GENERAL MOTORS COMPANY

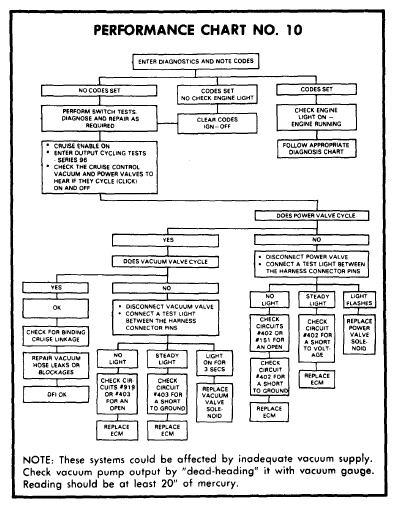

Fig 10: Performance Chart No. 10

G09340082

Courtesy of GENERAL MOTORS COMPANY

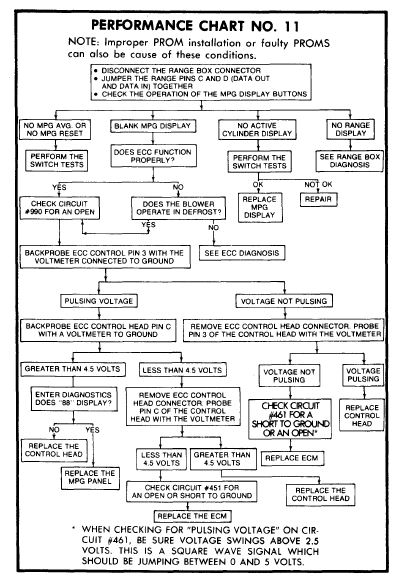

Fig 11: Performance Chart No. 11

G09340083

Courtesy of GENERAL MOTORS COMPANY

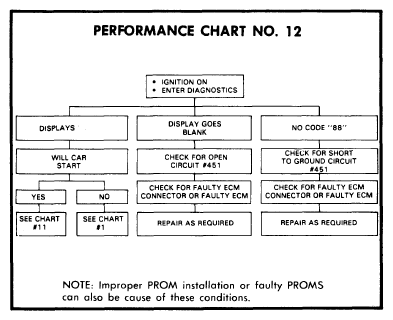

Fig 12: Performance Chart No. 12

G09340084

Courtesy of GENERAL MOTORS COMPANY

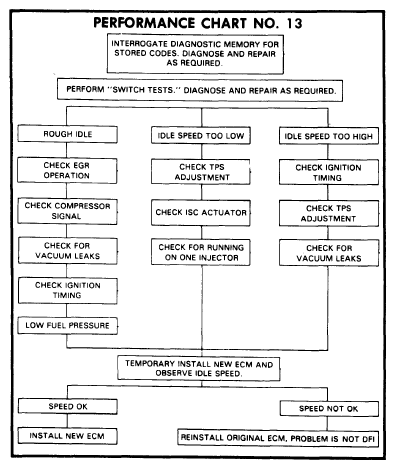

Fig 13: Performance Chart No. 13

G09340085

Courtesy of GENERAL MOTORS COMPANY

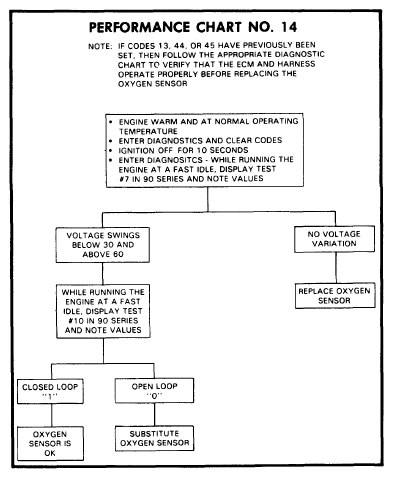

Fig 14: Performance Chart No. 14

G09340086

Courtesy of GENERAL MOTORS COMPANY

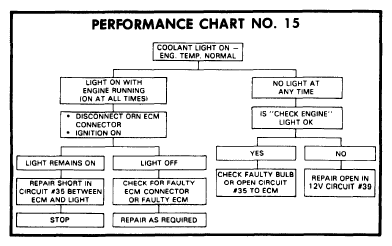

Fig 15: Performance Chart No. 15

G09340087

Courtesy of GENERAL MOTORS COMPANY

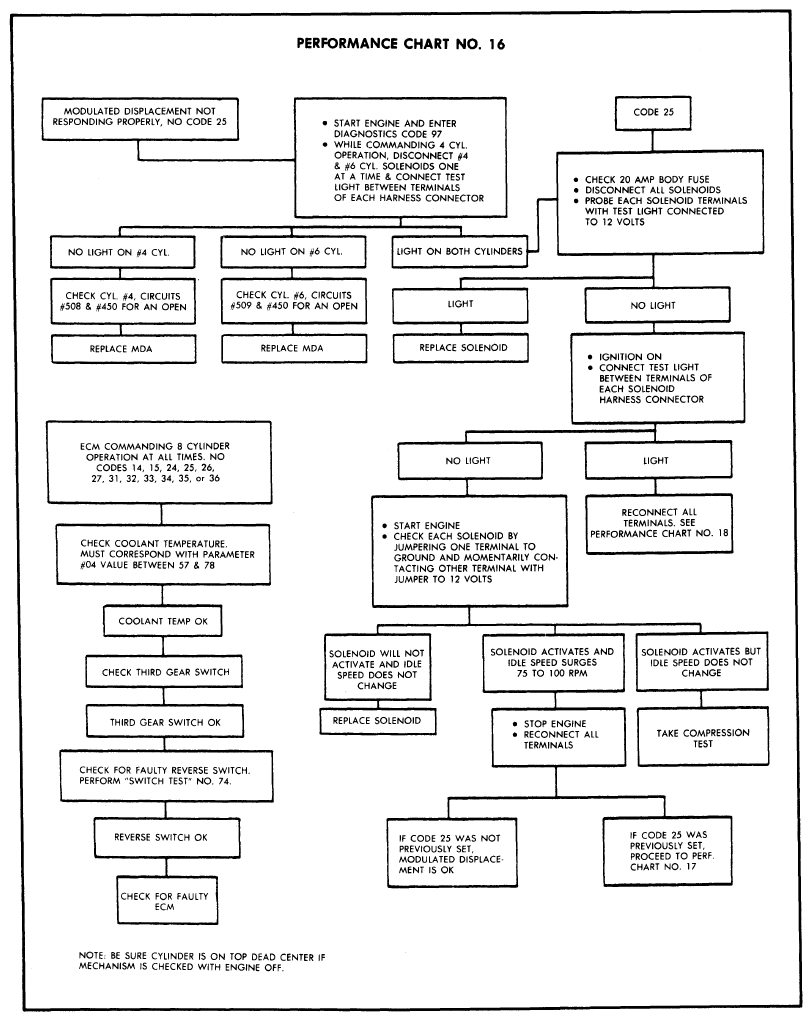

Fig 16: Performance Chart No. 16

G09340088

Courtesy of GENERAL MOTORS COMPANY

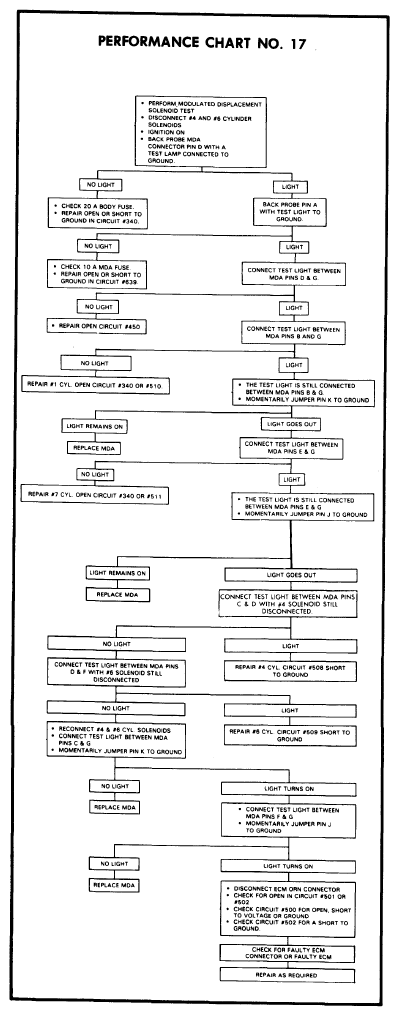

Fig 17: Performance Chart No. 17

G09340089

Courtesy of GENERAL MOTORS COMPANY

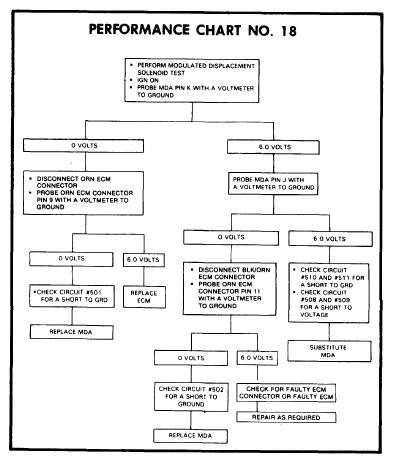

Fig 18: Performance Chart No. 18

G09340090

Courtesy of GENERAL MOTORS COMPANY
