Throttle Position Sensor (TPS): Installation

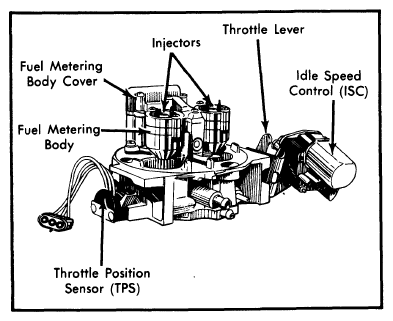

Position TPS over throttle shaft with TPS pickup lever following throttle lever tang. Install retainers, lock washers and 2 new screws. Tighten screws so TPS will move but is not loose. Install throttle body, reconnect electrical connector and adjust TPS.
