Stator Grounds

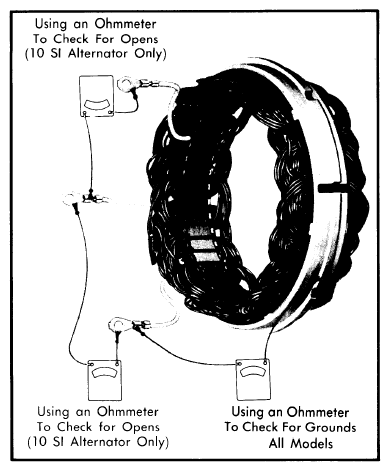

Connect a 110 volt test lamp or an ohmmeter set to the x 1000 scale. Touch leads to stator frame and any stator lead. See Figure . If test lamp lights or resistance is low (should be infinity), stator is grounded and must be replaced.
Connect a 110 volt test lamp or an ohmmeter set to the x 1000 scale. Touch leads to stator frame and any stator lead. See Figure . If test lamp lights or resistance is low (should be infinity), stator is grounded and must be replaced.
