Chart 3: No Code 12 Displayed

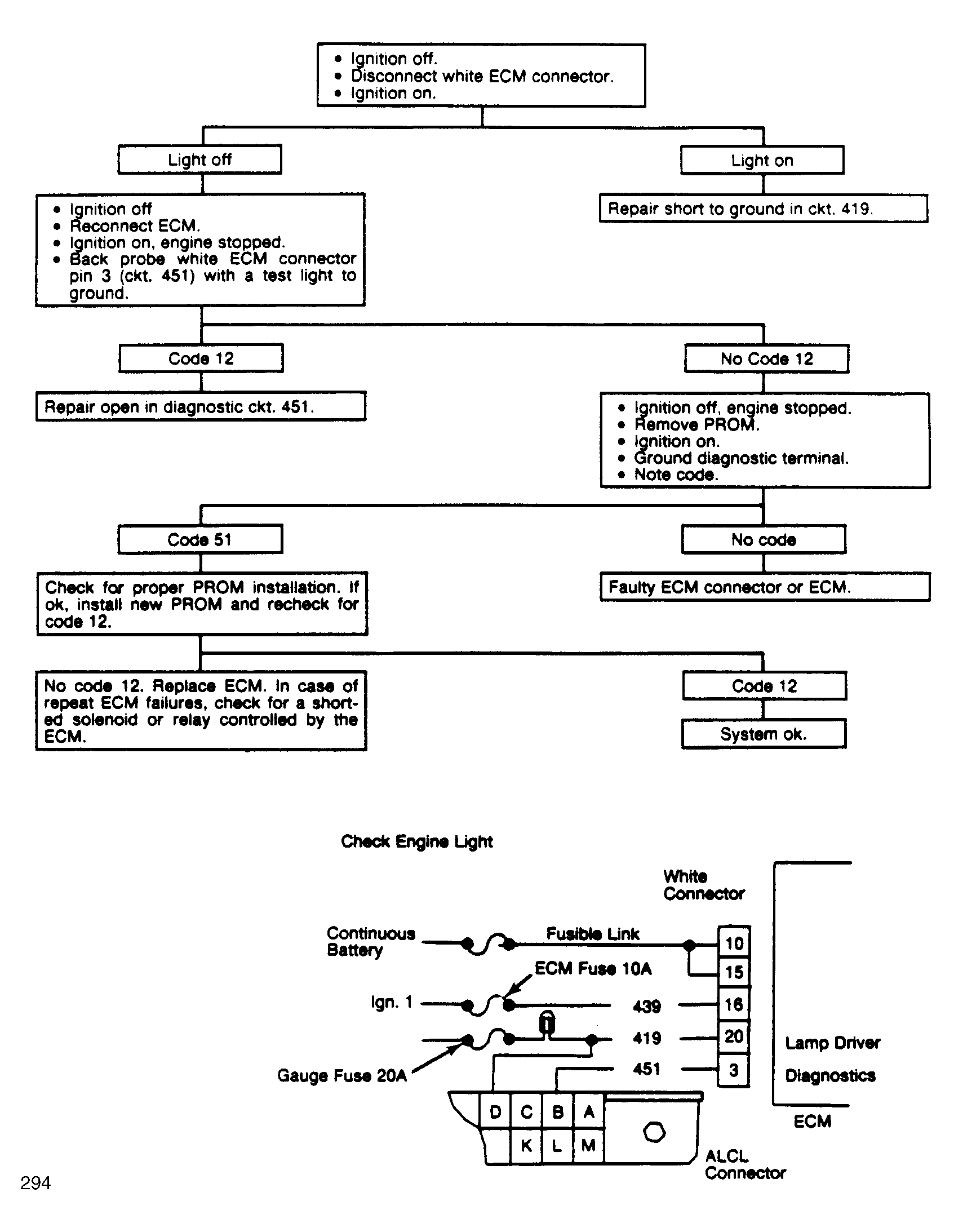

Fig 1: Chart 3: No Code 12 Displayed Flow Chart

G294

Fig 2: Chart 3: No Code 12 Displayed Flow Chart

GB0045641
