Chart 9B: Crank Signal
Chart 9B: Crank Signal

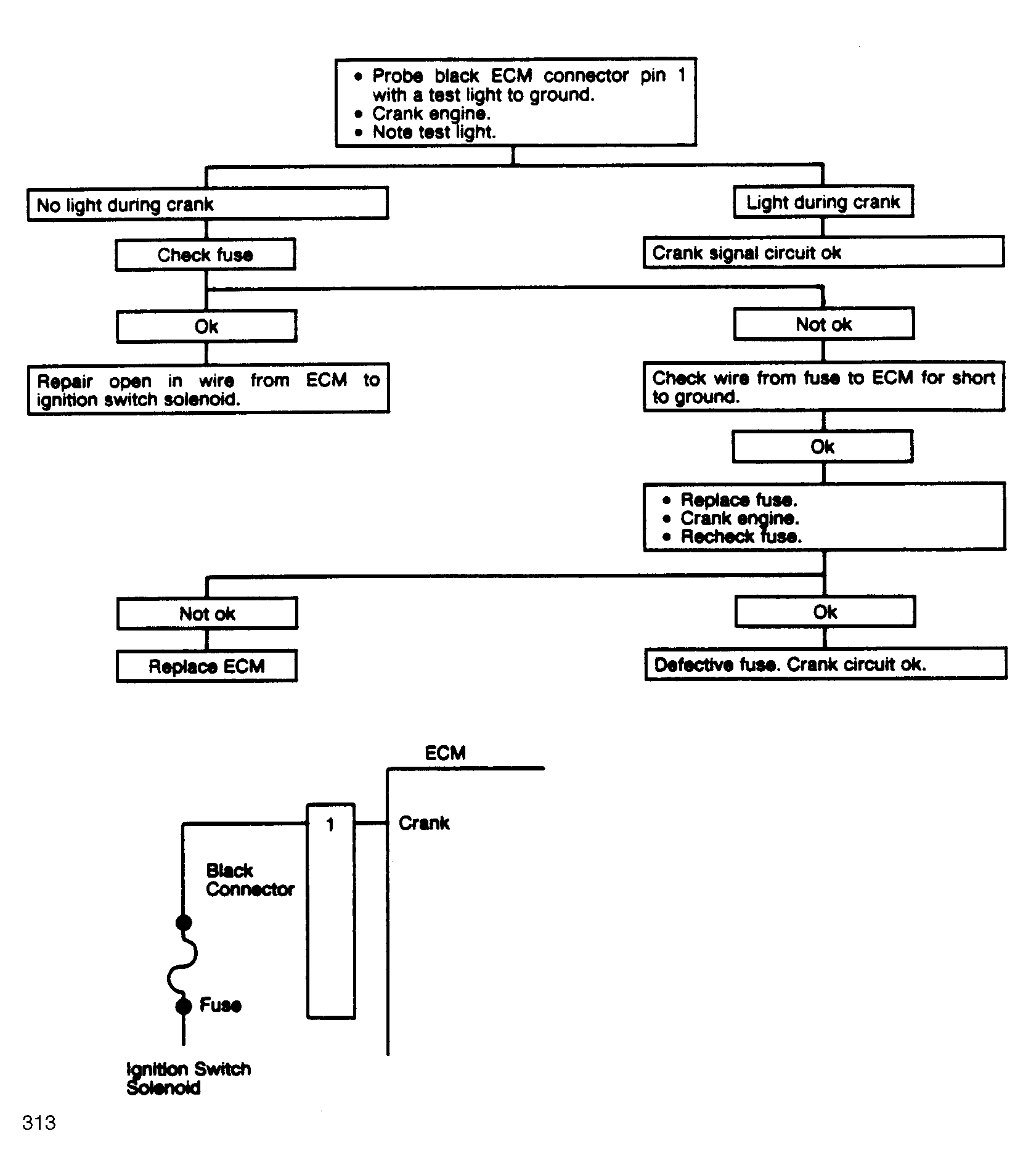

Fig 1: Chart 9B: Crank Signal Flow Chart
Fig 2: Chart 9B: Crank Signal Flow Chart
