Code 13: Open Oxygen (O2) Sensor Circuit

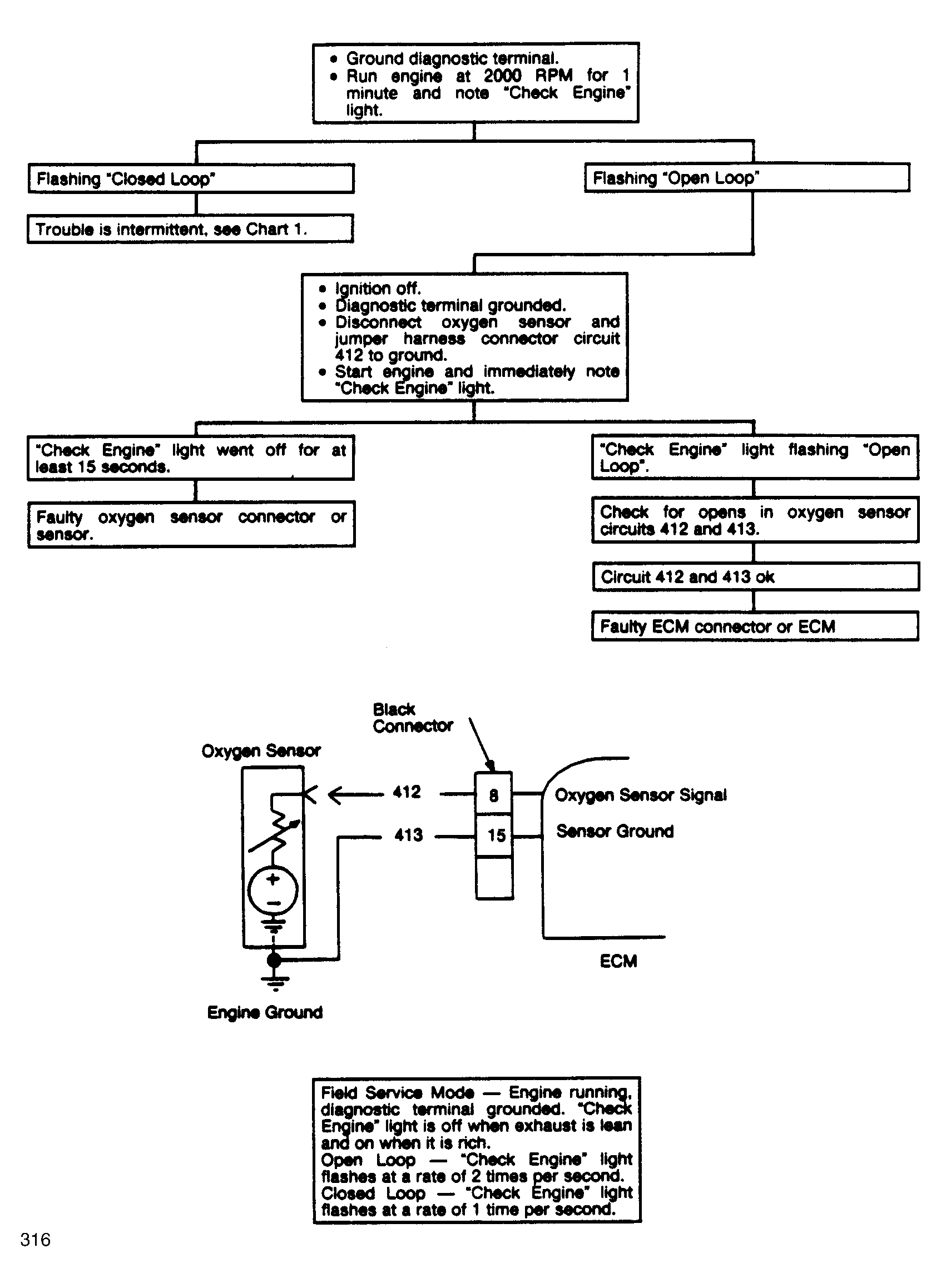

Fig 1: Code 13: Open Oxygen (O2) Sensor Circuit Flow Chart

G316

Fig 2: Code 13: Open Oxygen (O2) Sensor Circuit Flow Chart

GB0045663
