EFE (Electrically Heated) Check

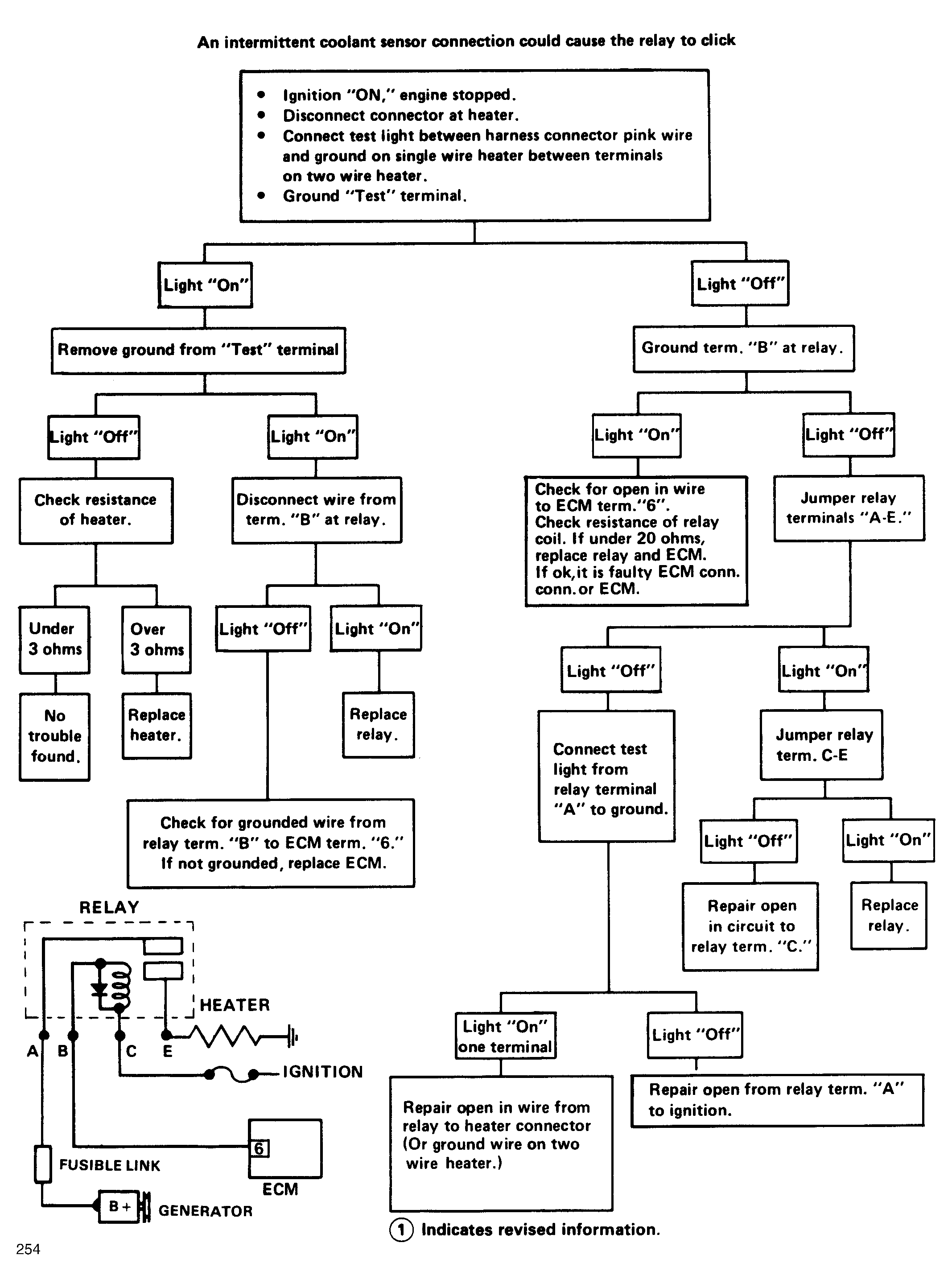

Fig 1: EFE (Vacuum Servo) Check Flow Chart

G254

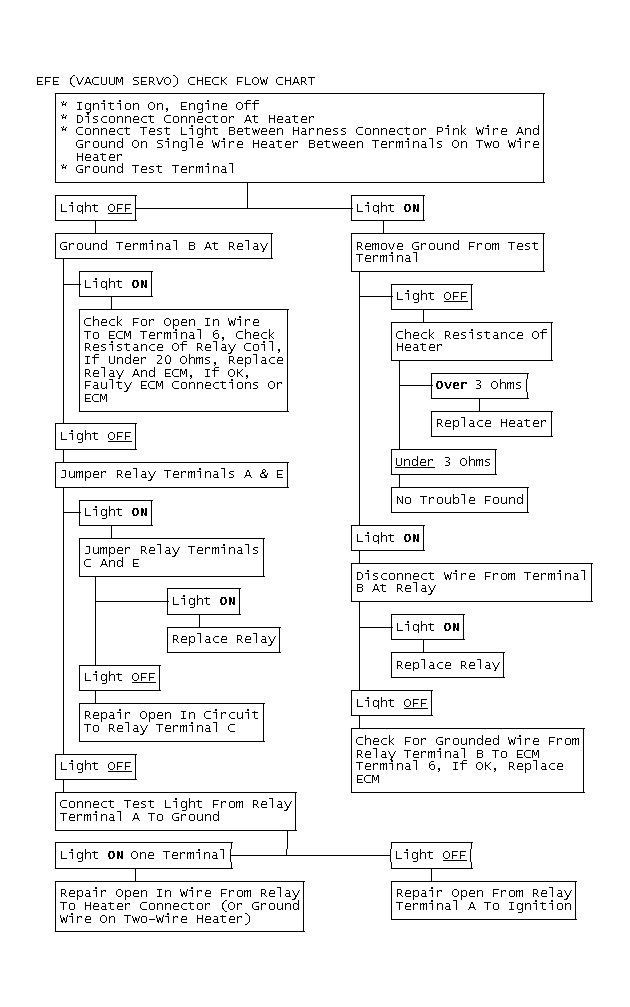

Fig 2: EFE (Vacuum Servo) Check Flow Chart

GB0045677
