EFE (Vacuum Servo) Check

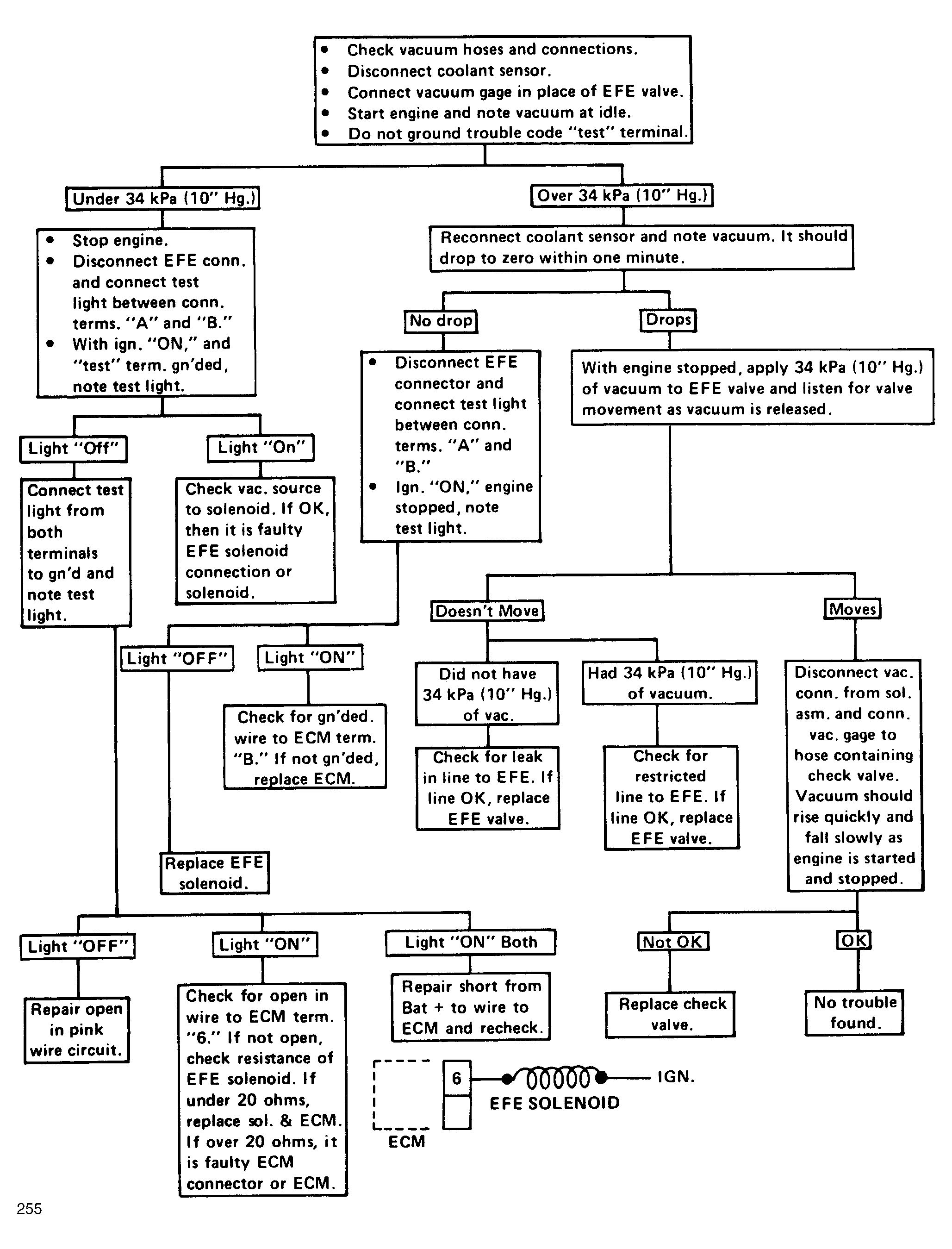

Fig 1: EFE (Vacuum Servo) Check Flow Chart

G255

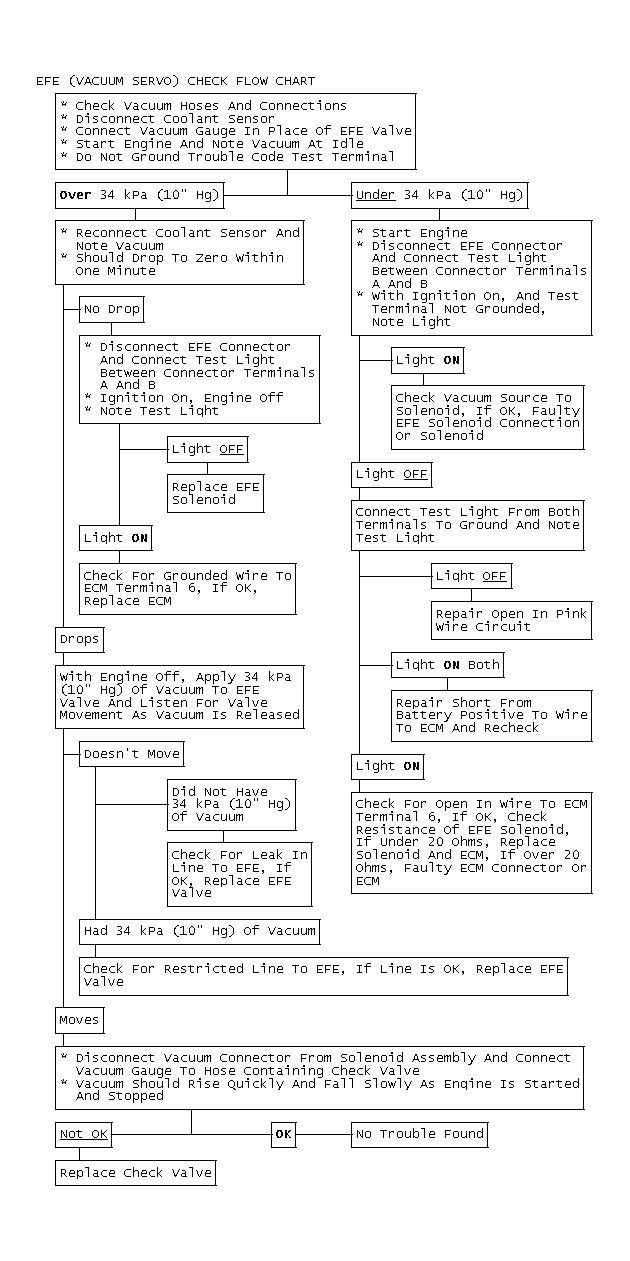

Fig 2: EFE (Vacuum Servo) Check Flow Chart

GB0045676
