TBI Tests W/Codes
›
Wiring Diagrams
Wiring Diagrams

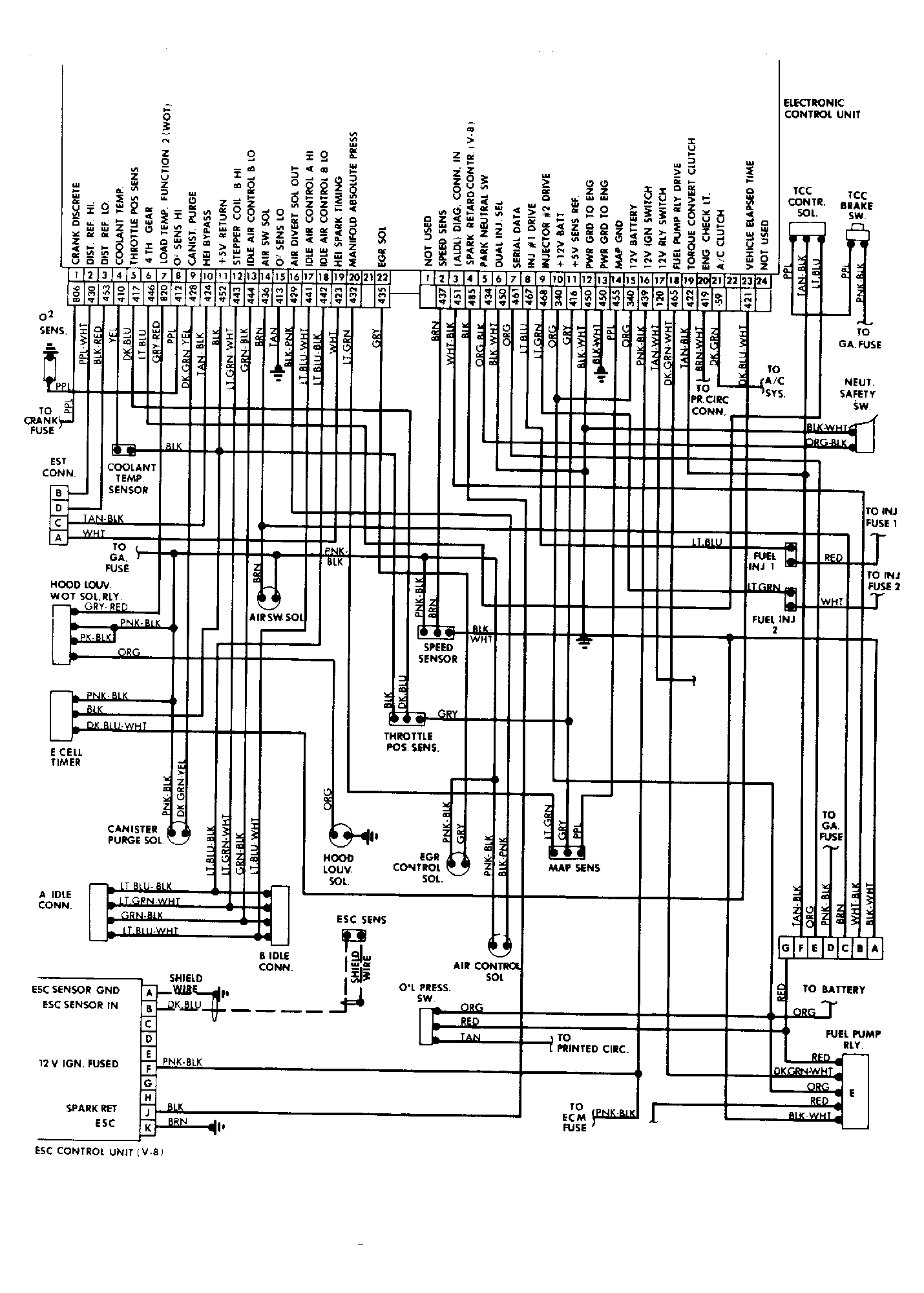

Fig 1: EFI (Exc. 5.0L) System Wiring Diagram

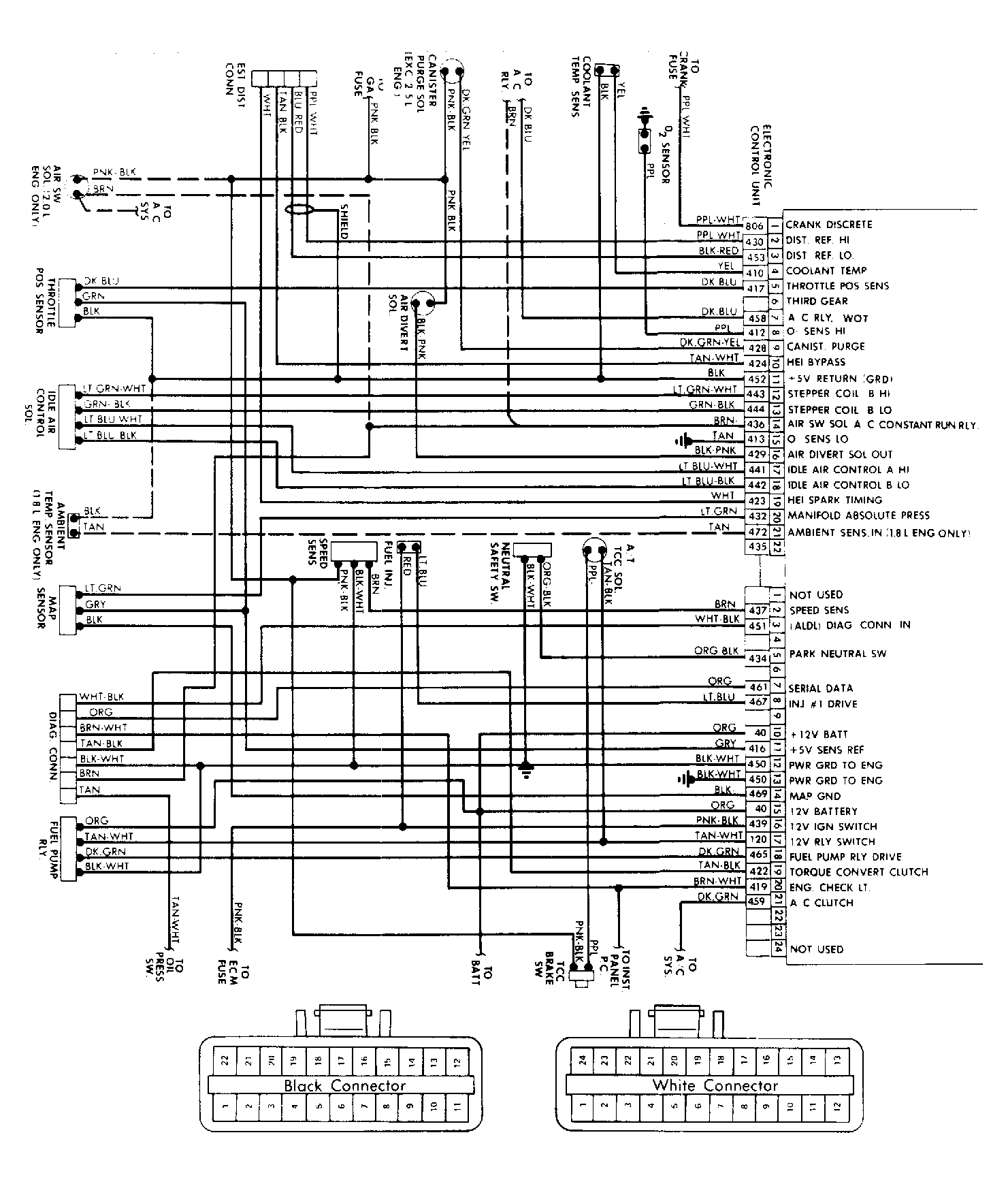

Fig 2: EFI (5.0L) System Wiring Diagram (Camaro & Firebird Only)
