Injector System Diagnosis

Fig 1: Injector System Diagnosis (1 of 2)
G50J07322

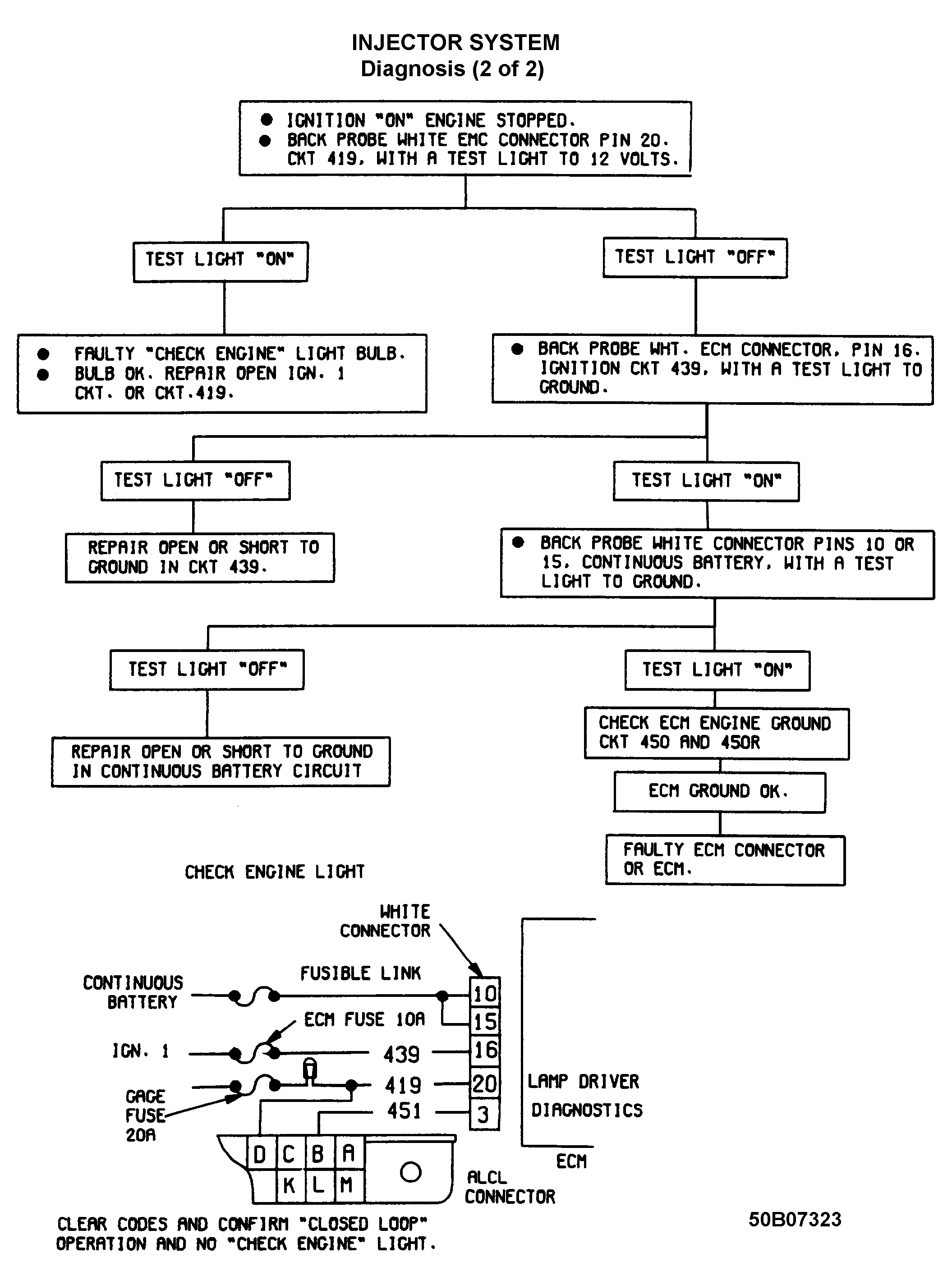

Fig 2: Injector System Diagnosis (2 of 2)
G50B07323
