Code 24: Vehicle Speed Sensor (VSS) Circuit

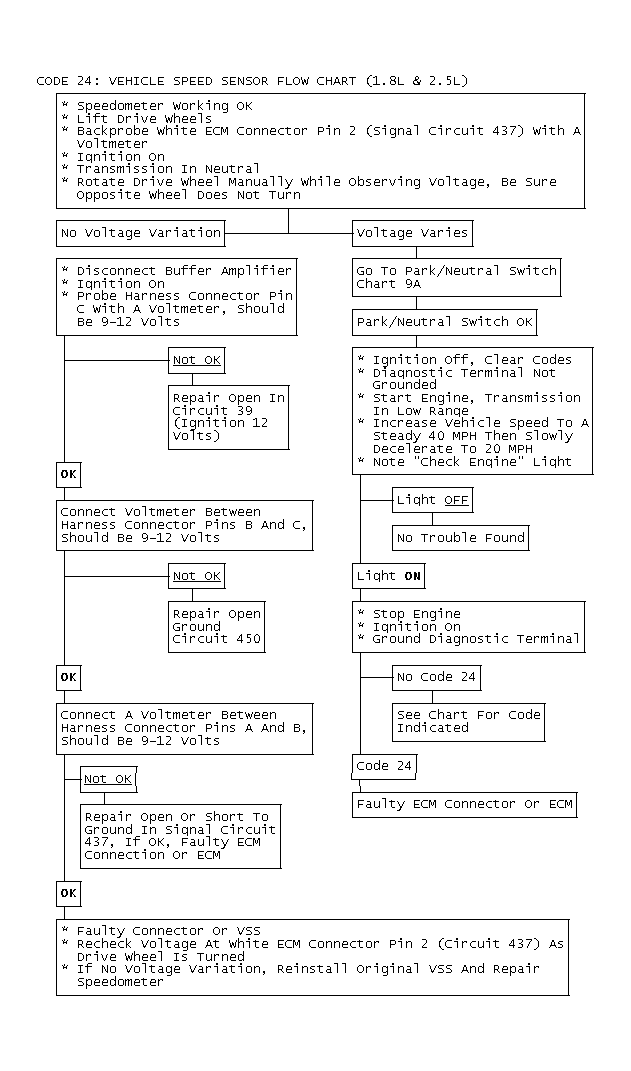

Fig 1: Code 24: Vehicle Speed Sensor Flow Chart (1.8L & 2.5L)

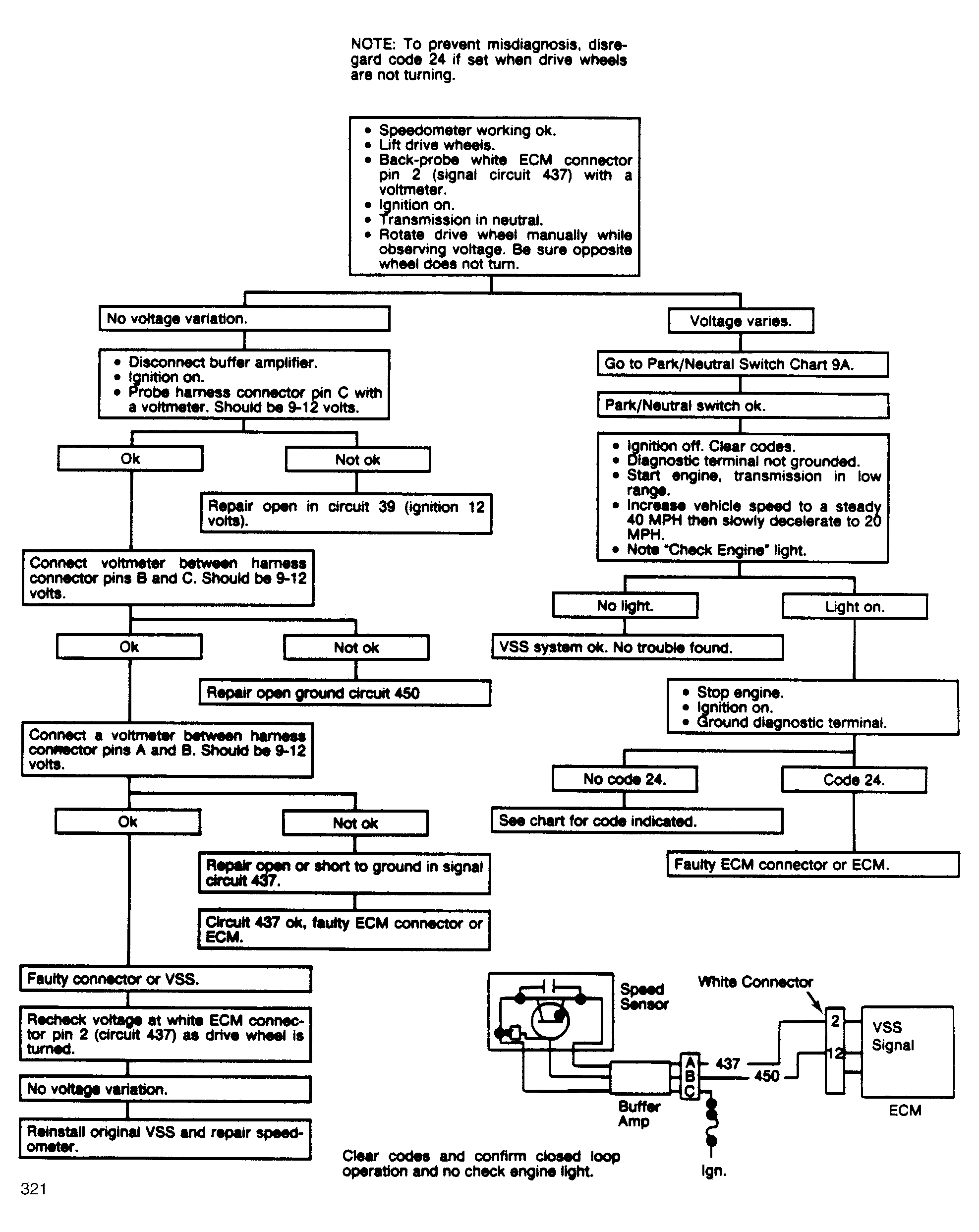

Fig 2: Code 24: Vehicle Speed Sensor Flow Chart (1.8L & 2.5L)

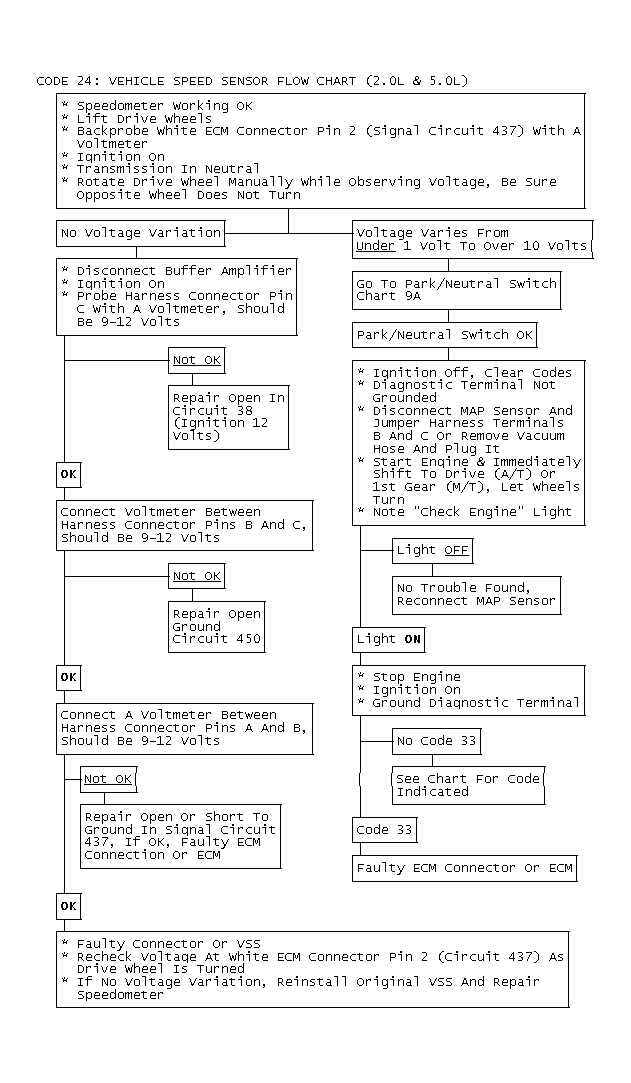

Fig 3: Code 24: Vehicle Speed Sensor Flow Chart (2.0L & 5.0L)

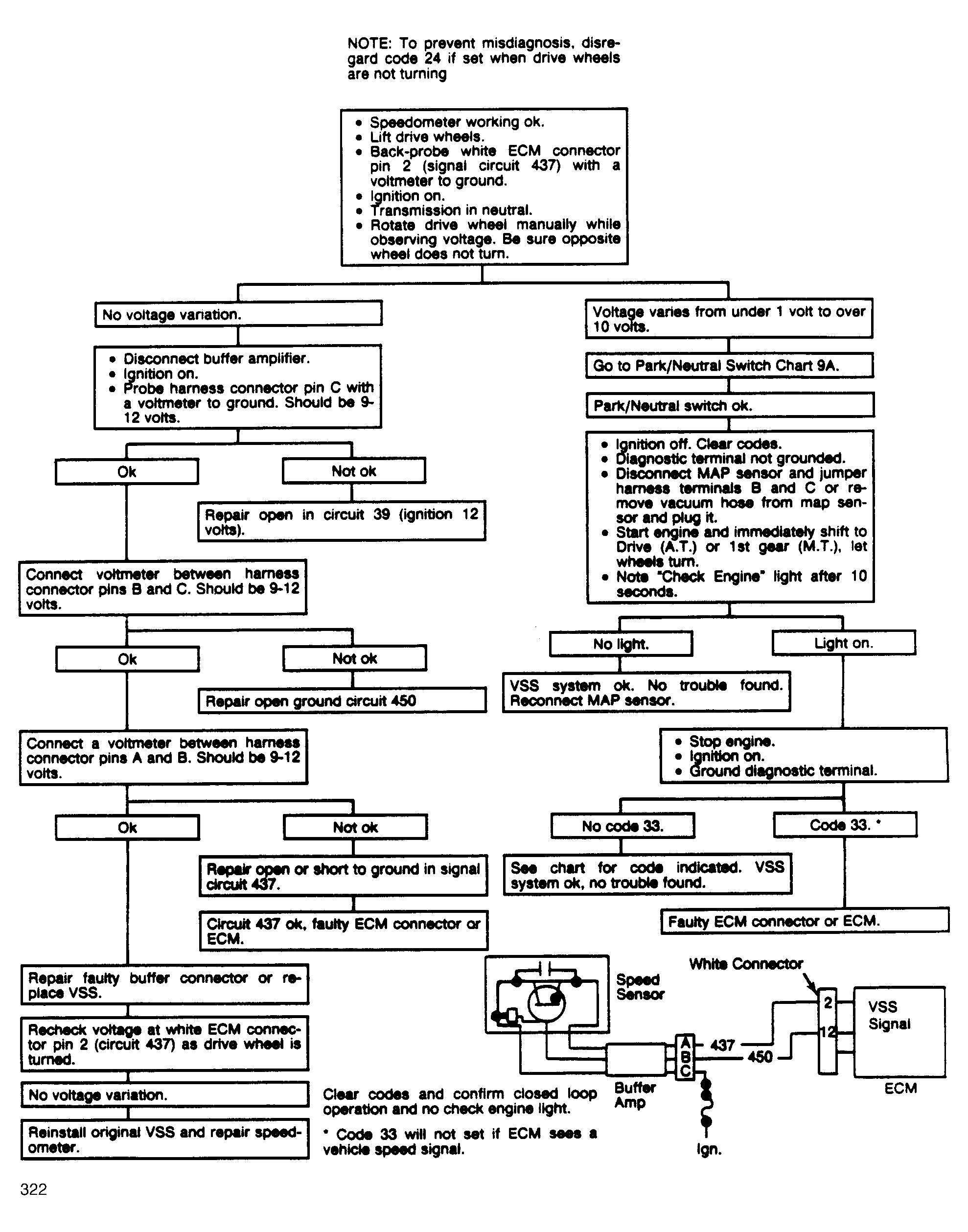

Fig 4: Code 24: Vehicle Speed Sensor Flow Chart (2.0L & 5.0L)
