Chart 6 - Injector System
›
Notes
Chart 6 - Injector System: Notes

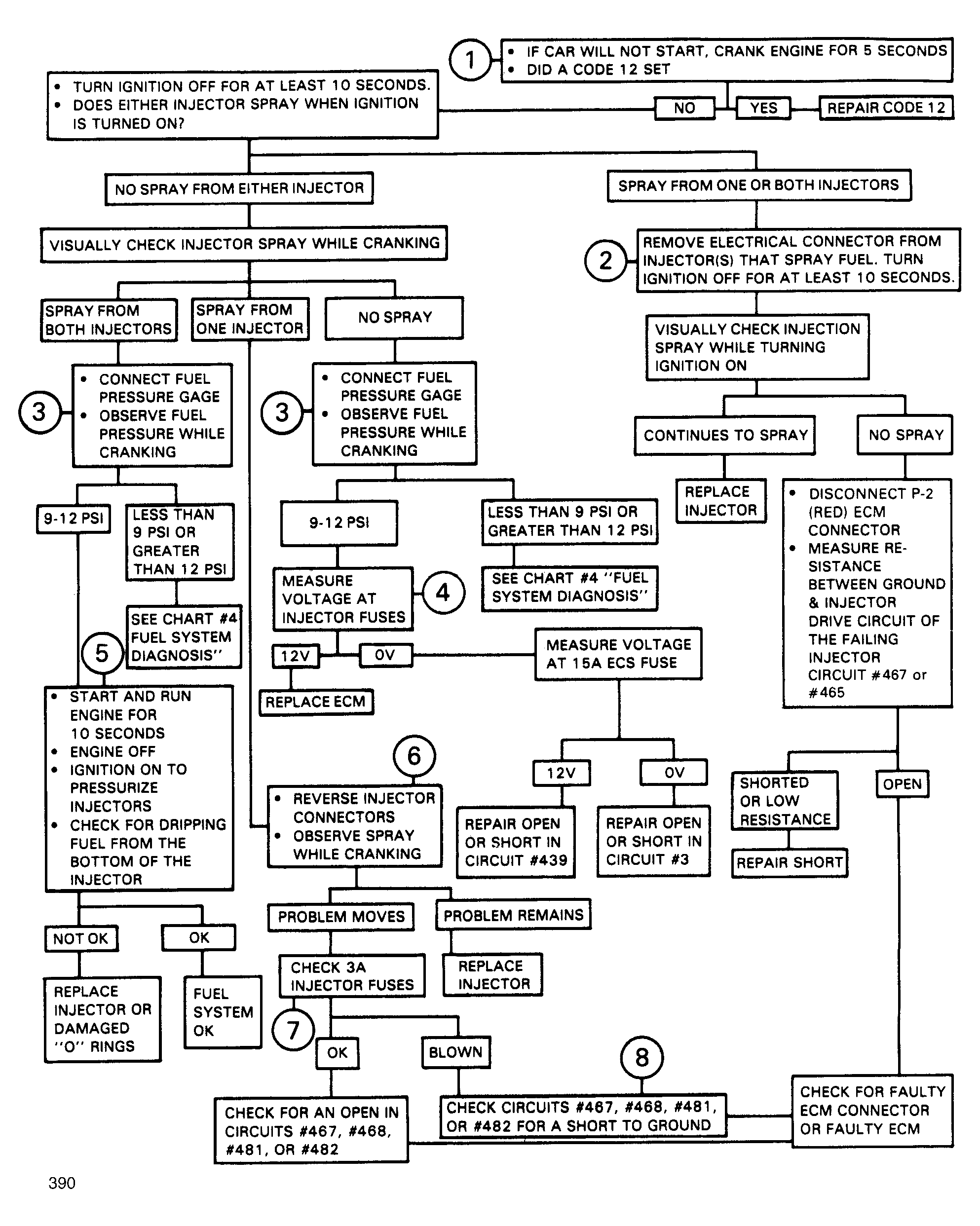

Fig 1: Performance Chart No. 6 - Injector System Diagnosis
