Code 15 - Open Cts Circuit: Notes

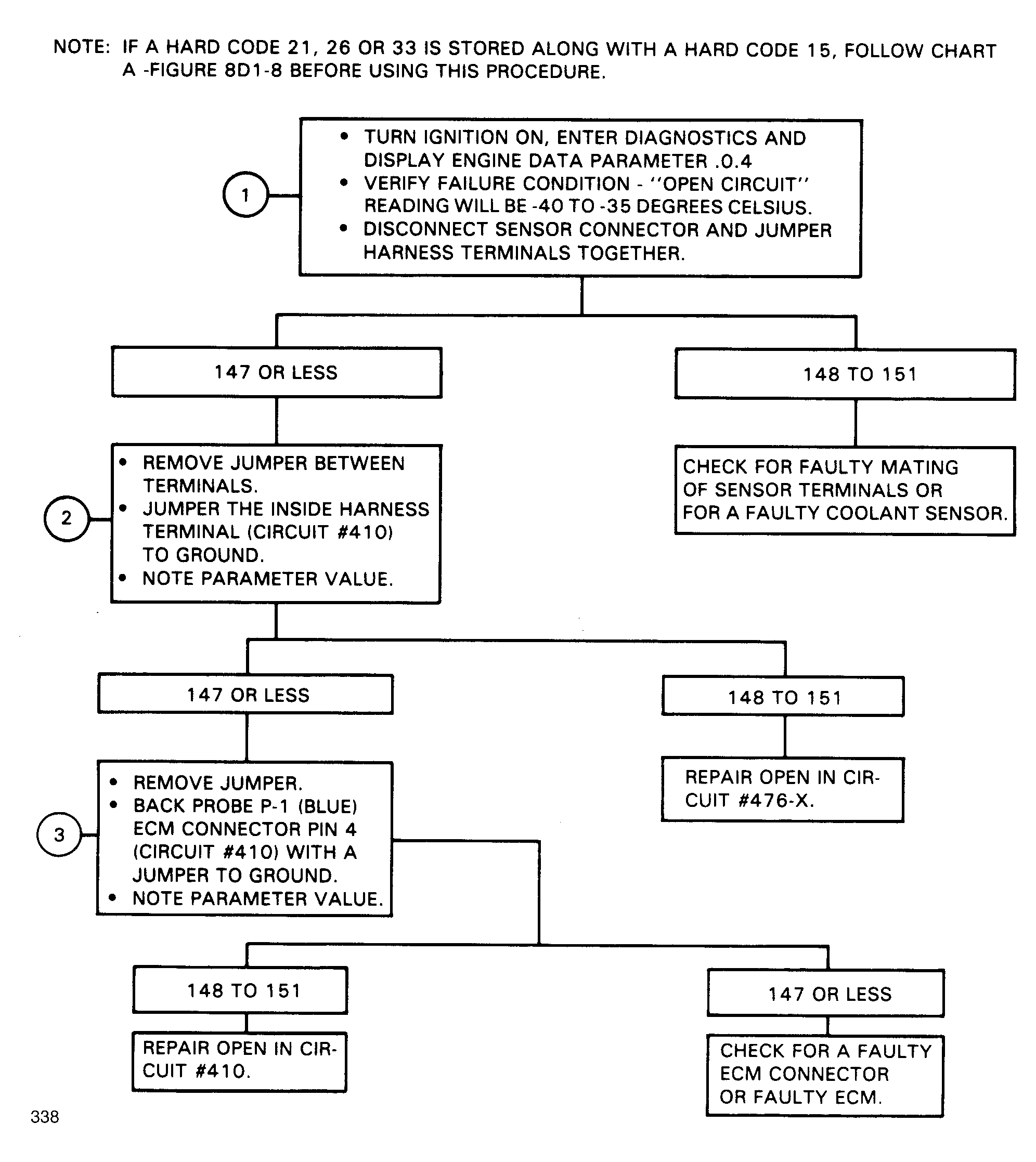

Fig 1: Flow Chart, Code 15 - Open Coolant Temperature Sensor (CTS) Circuit

G338

Fig 2: Flow Chart, Code 15 - Open Coolant Temperature Sensor (CTS) Circuit

GB0046313
