Code 19 - Shorted Fuel Pump Circuit: Notes

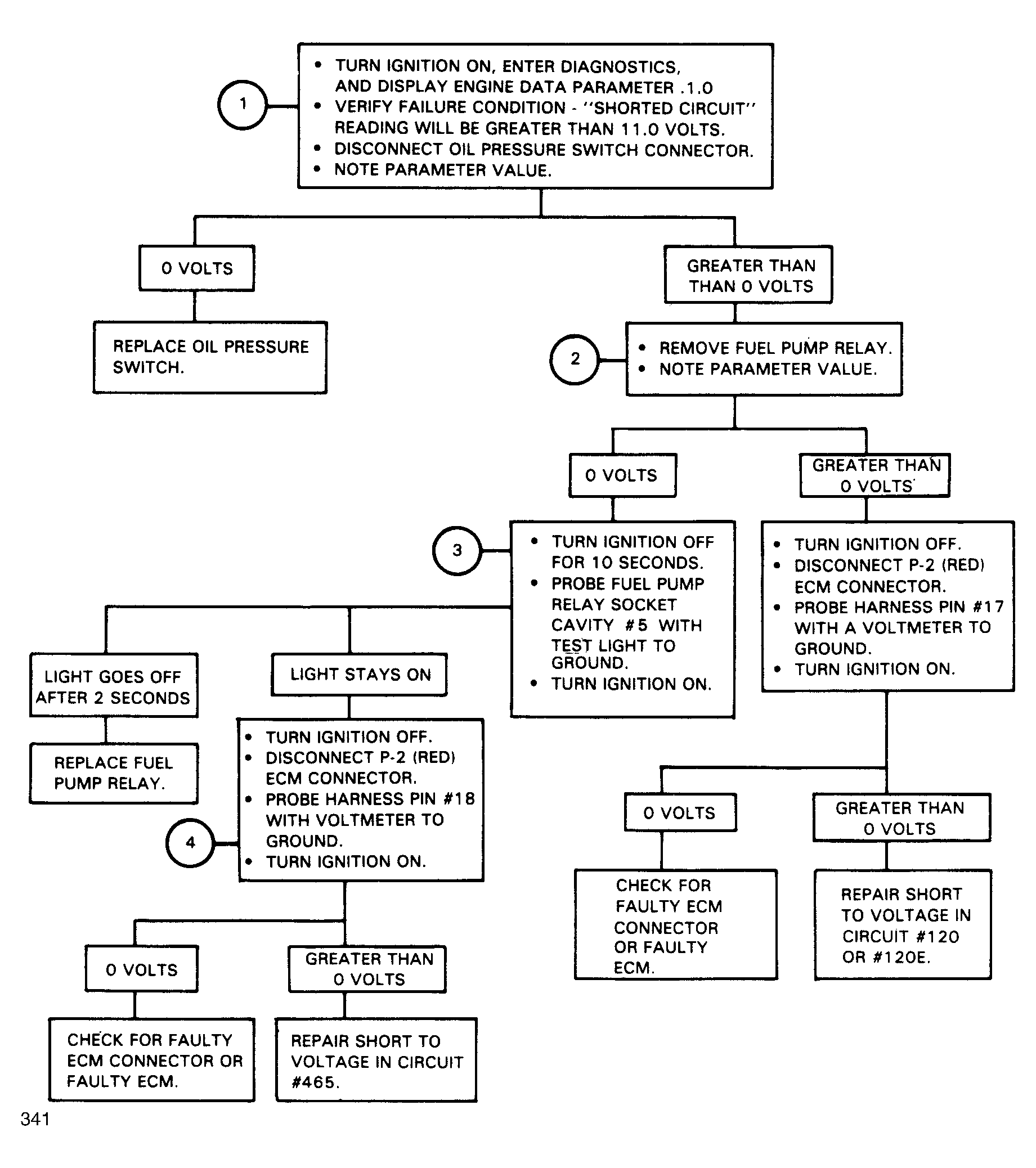

Fig 1: Flow Chart, Code 19 - Shorted Fuel Pump Circuit

G341

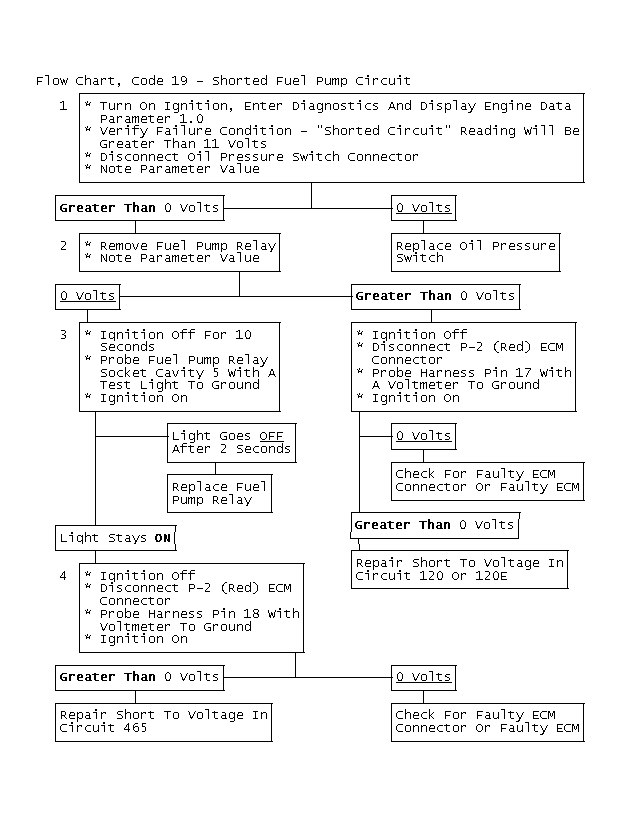

Fig 2: Flow Chart, Code 19 - Shorted Fuel Pump Circuit

GB0046316
