Code 24A - VSS CKT Fault: Notes

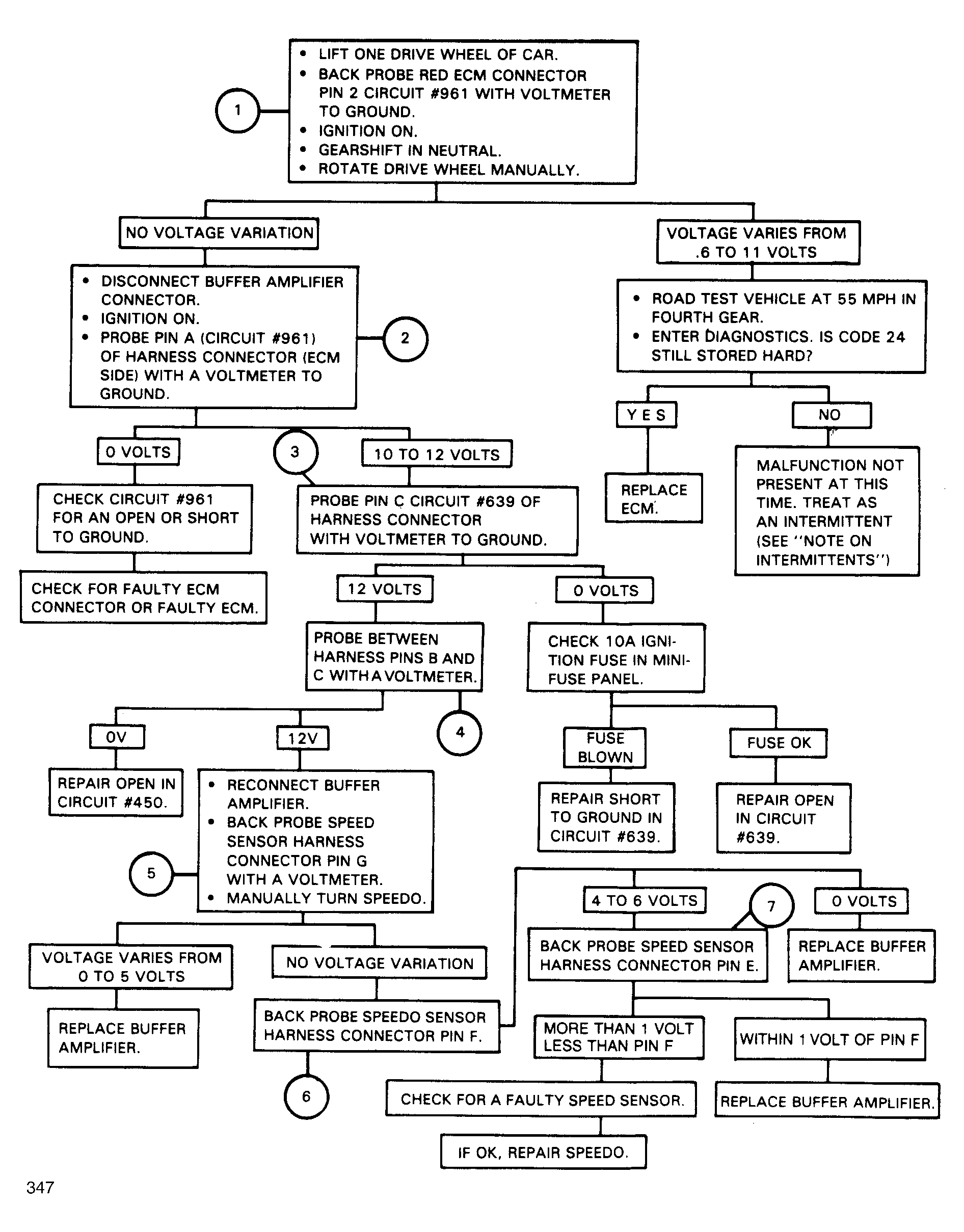

Fig 1: Flow Chart, Code 24A (W/O Digital Cluster) - Vehicle Speed Sensor (VSS) Circuit Problem

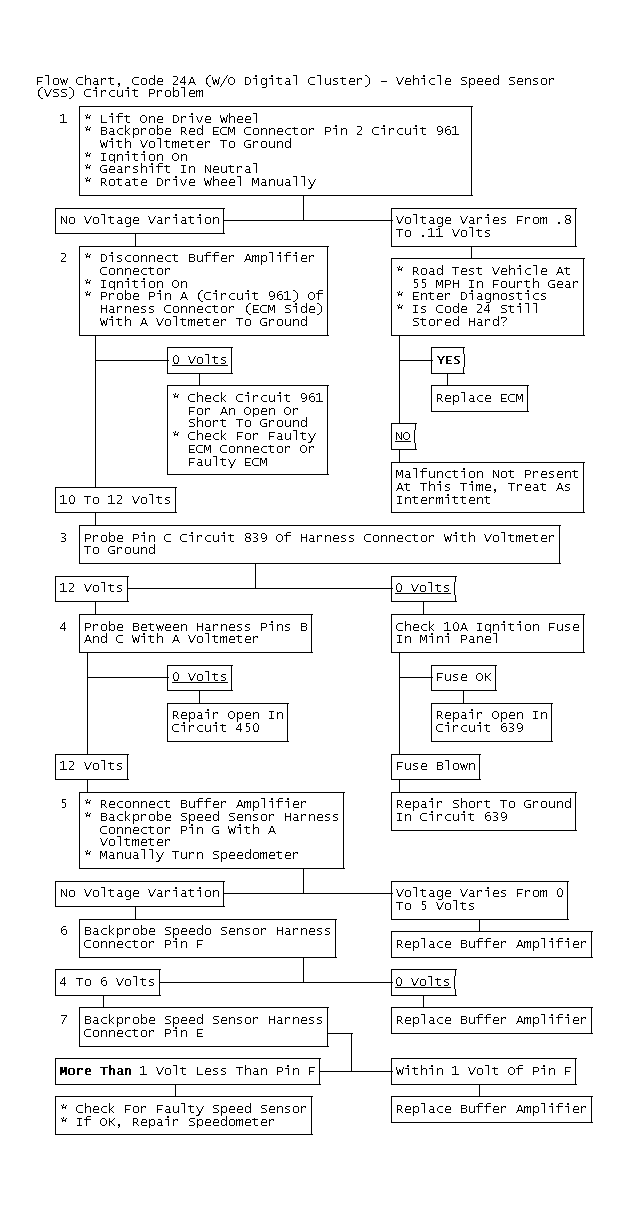

Fig 2: Flow Chart, Code 24A (W/O Digital Cluster) - Vehicle Speed Sensor (VSS) Circuit Problem
