Home › Cadillac › 1983 › Seville 4.1 8 › Repair and Diagnosis › Engine Performance › System › DFI Tests W/Codes › Diagnostic Code Charts › Code 27 - Open TPS Circuit › Notes

Code 27 - Open TPS Circuit: Notes

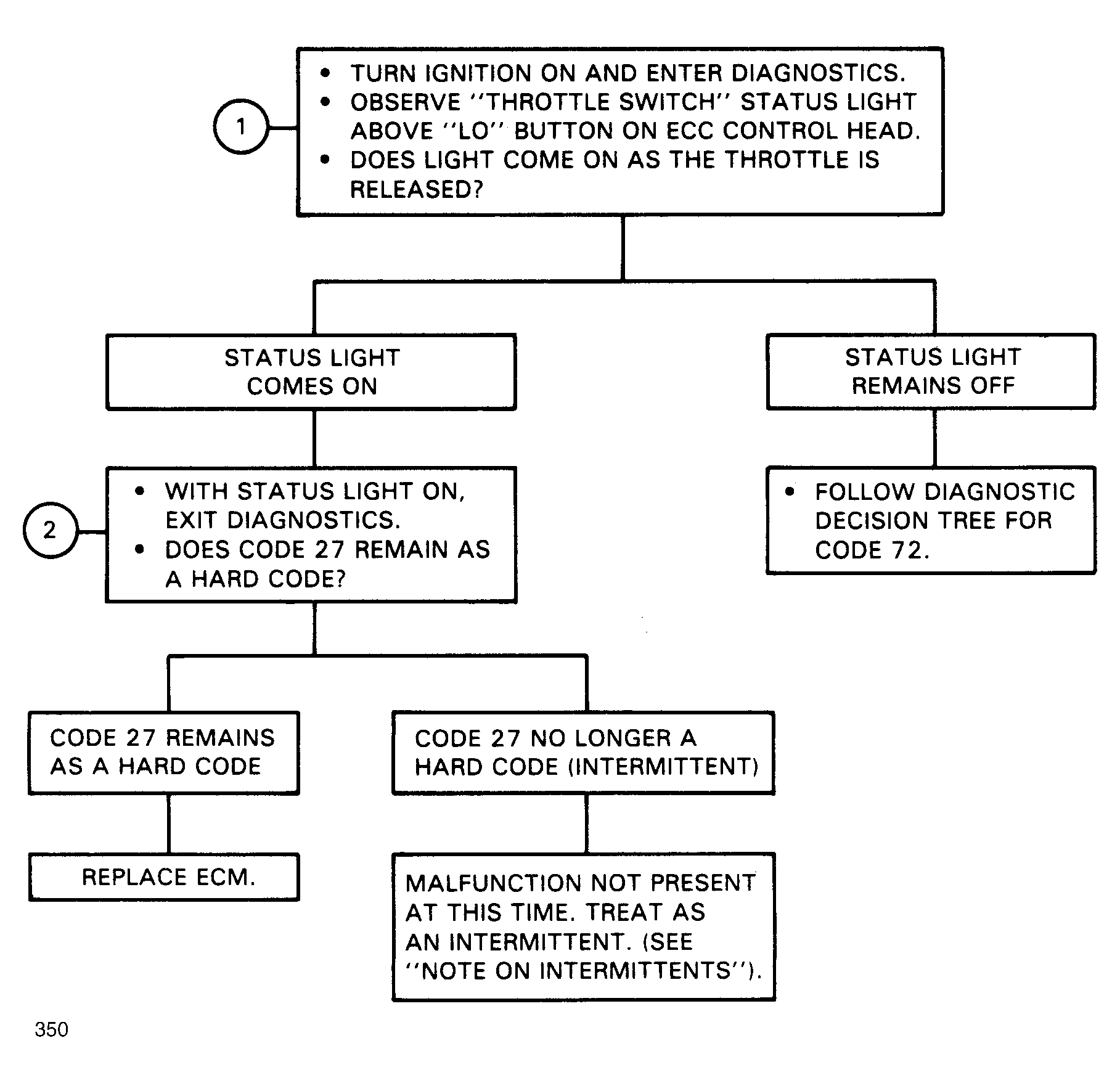

Fig 1: Flow Chart, Code 27 - Open Throttle Switch Circuit

G350

Fig 2: Flow Chart, Code 27 - Open Throttle Switch Circuit

GB0046326
