Code 32 - Open Map Sensor Circuit: Notes

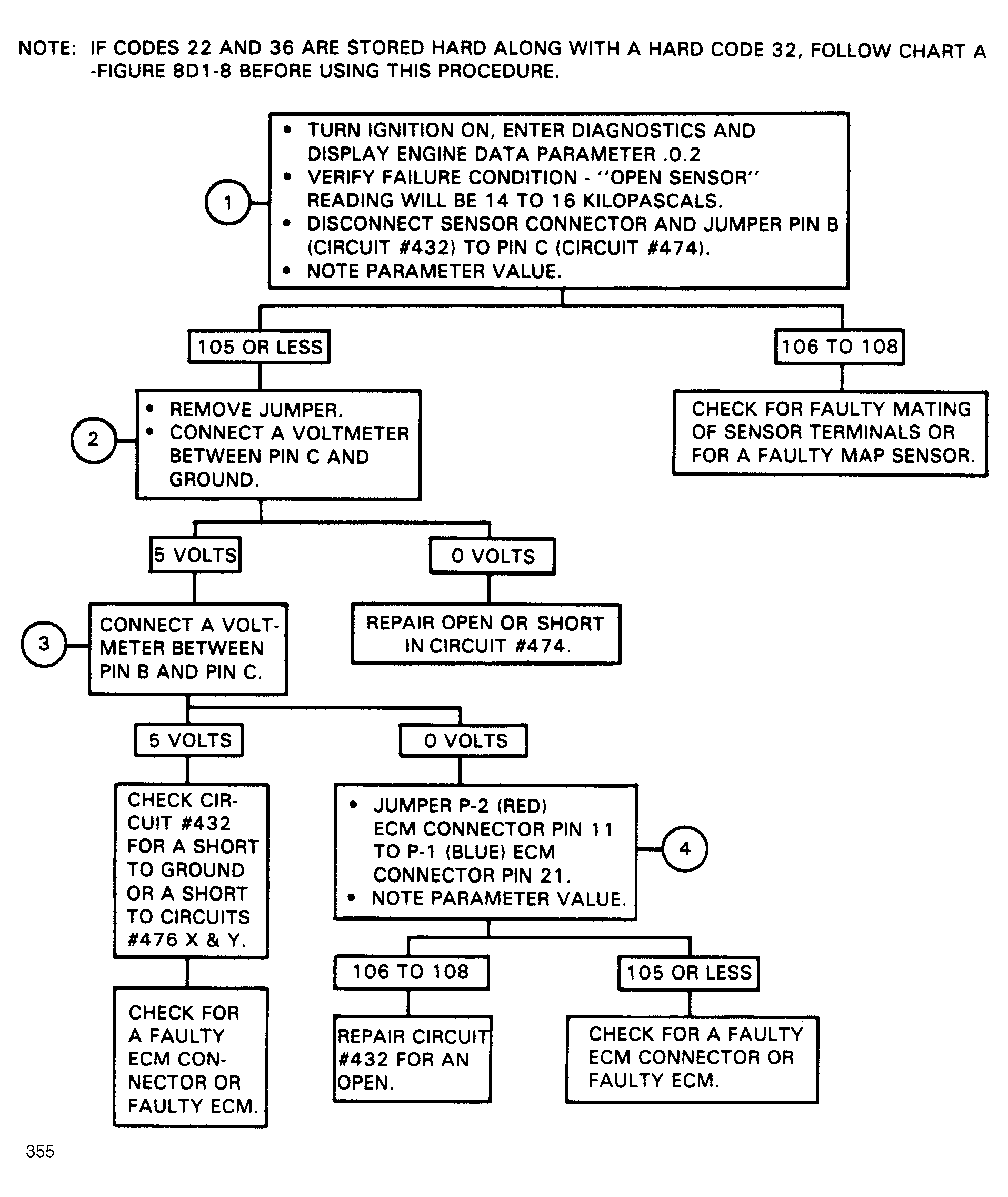

Fig 1: Flow Chart, Code 32 - Open Map Sensor Circuit

G355

Fig 2: Flow Chart, Code 32 - Open Map Sensor Circuit

GB0046332
