Code 36 - Open BARO Sensor: Notes

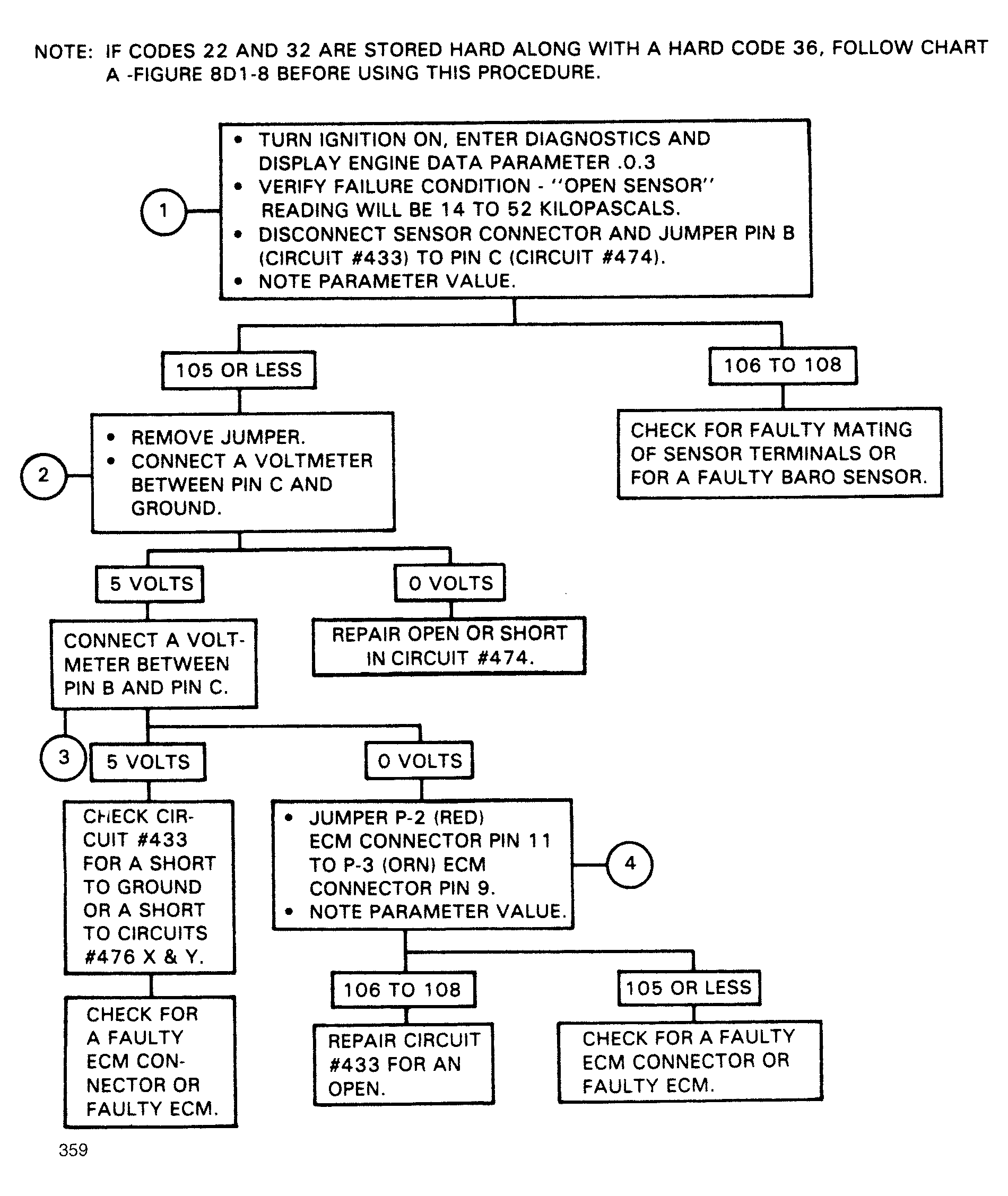

Fig 1: Flow Chart, Code 36 - Open BARO Sensor Circuit

G359

Fig 2: Flow Chart, Code 36 - Open BARO Sensor Circuit

GB0046336
