Code 71 - Cruise Control Brake Circuit: Notes

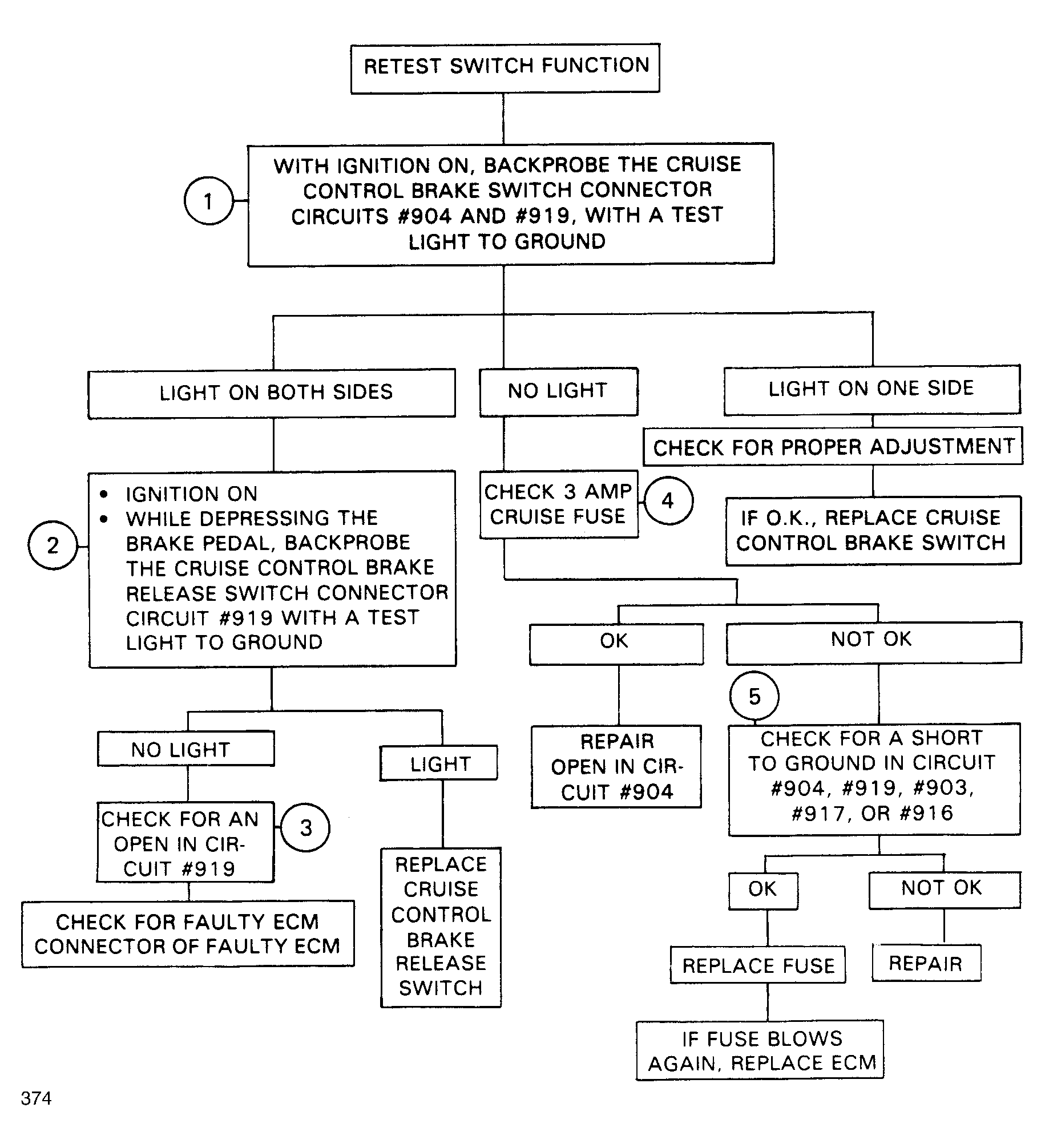

Fig 1: Flow Chart, Code 71 - Cruise Control Brake Circuit

G374

Fig 2: Flow Chart, Code 71 - Cruise Control Brake Circuit

GB0046347
