Code 72 - Throttle Switch Circuit: Notes

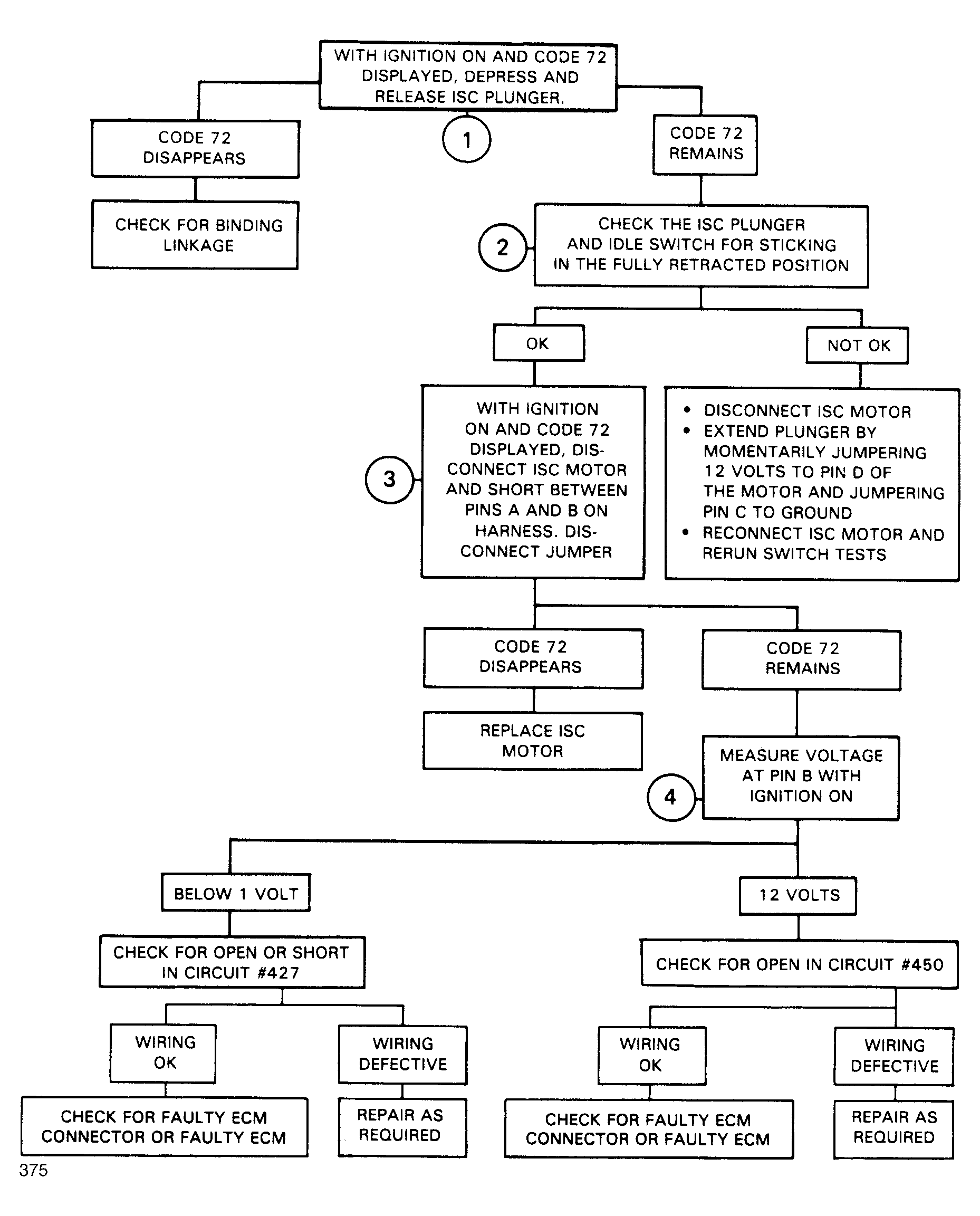

Fig 1: Flow Chart, Code 72 - Throttle Switch Circuit

G375

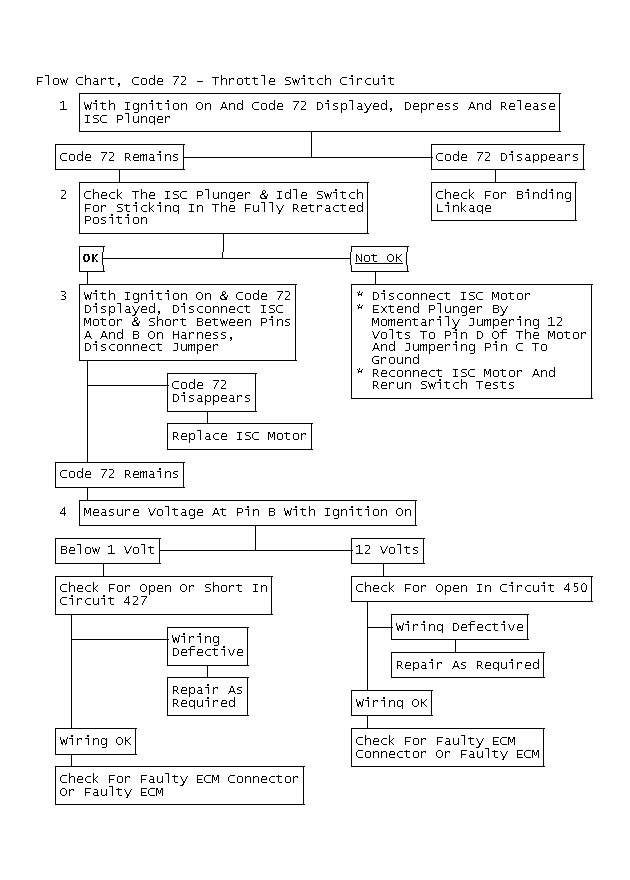

Fig 2: Flow Chart, Code 72 - Throttle Switch Circuit

GB0046348
