Code 77 - Cruise Resume/ACCEL Circuit: Notes

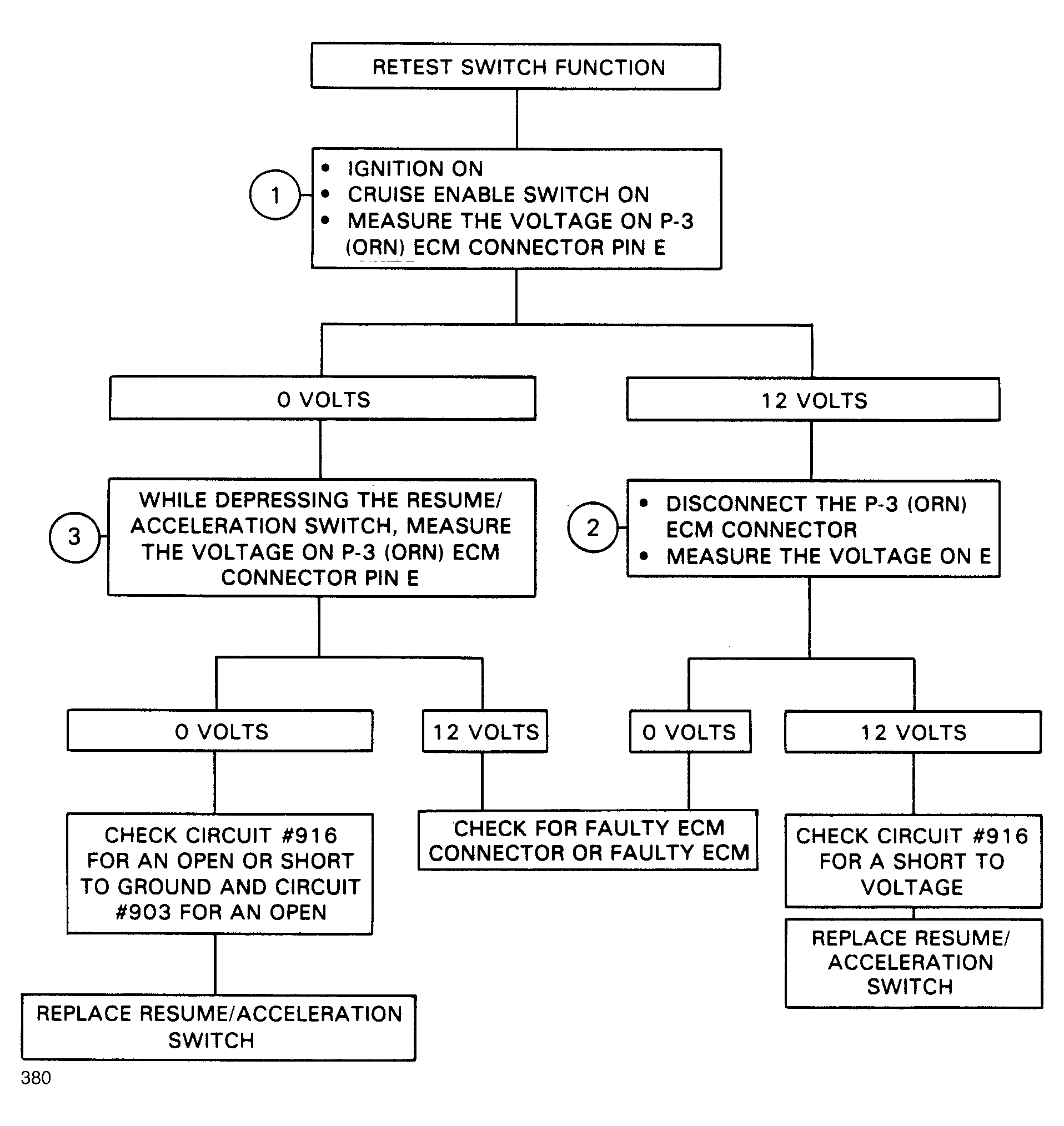

Fig 1: Flow Chart, Code 77 - Cruise Resume/Accel. Circuit

G380

Fig 2: Flow Chart, Code 77 - Cruise Resume/Accel. Circuit

GB0046353
