Code 79 - "Reset" Circuit: Notes

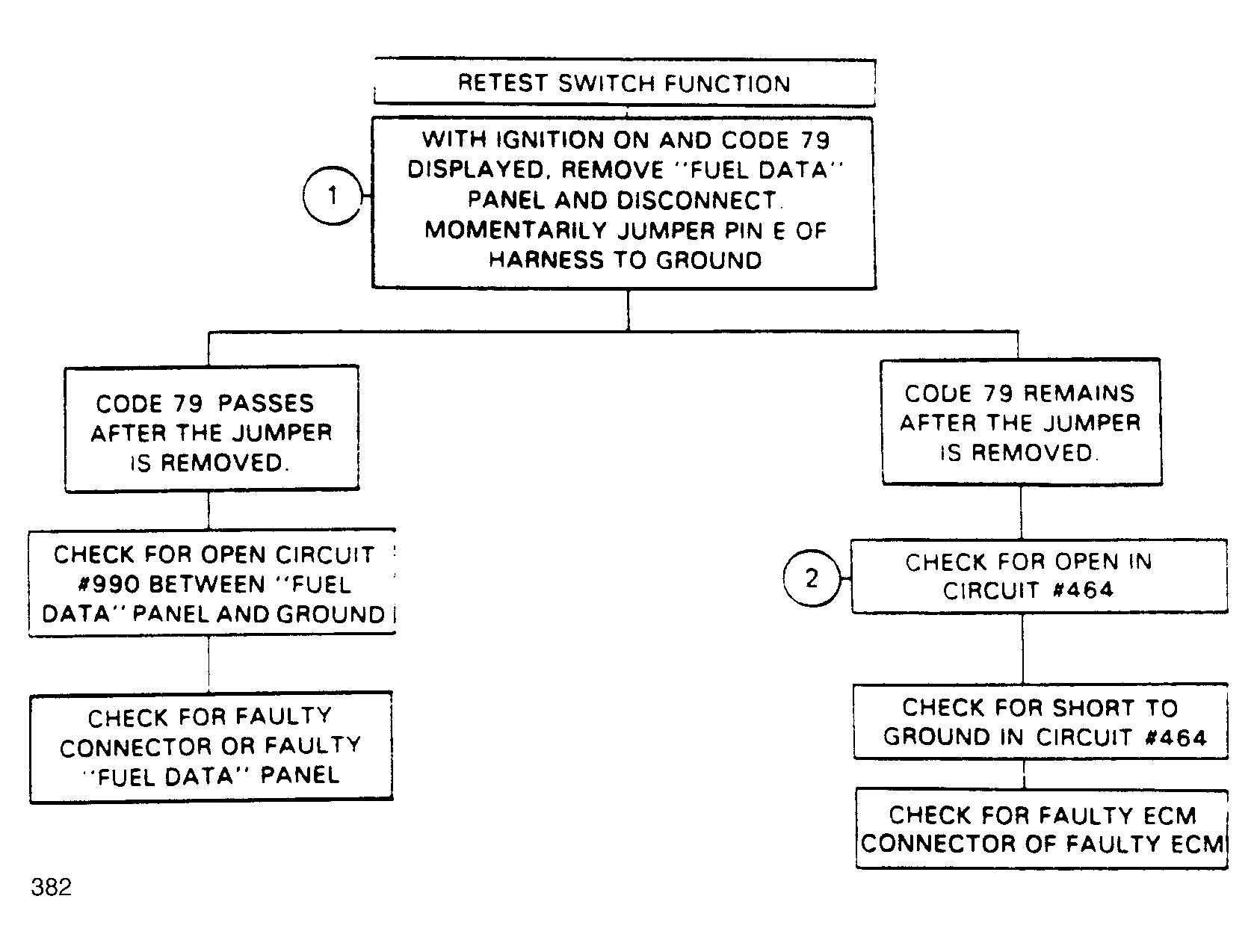

Fig 1: Flow Chart, Code 79 - "Reset" Circuit

G382

Fig 2: Flow Chart, Code 79 - "Reset" Circuit

GB0046355
