Home › Cadillac › 1983 › Seville 4.1 8 › Repair and Diagnosis › Engine Performance › System › DFI Tests W/Codes › Wiring Diagram

DFI Tests W/Codes: Wiring Diagram

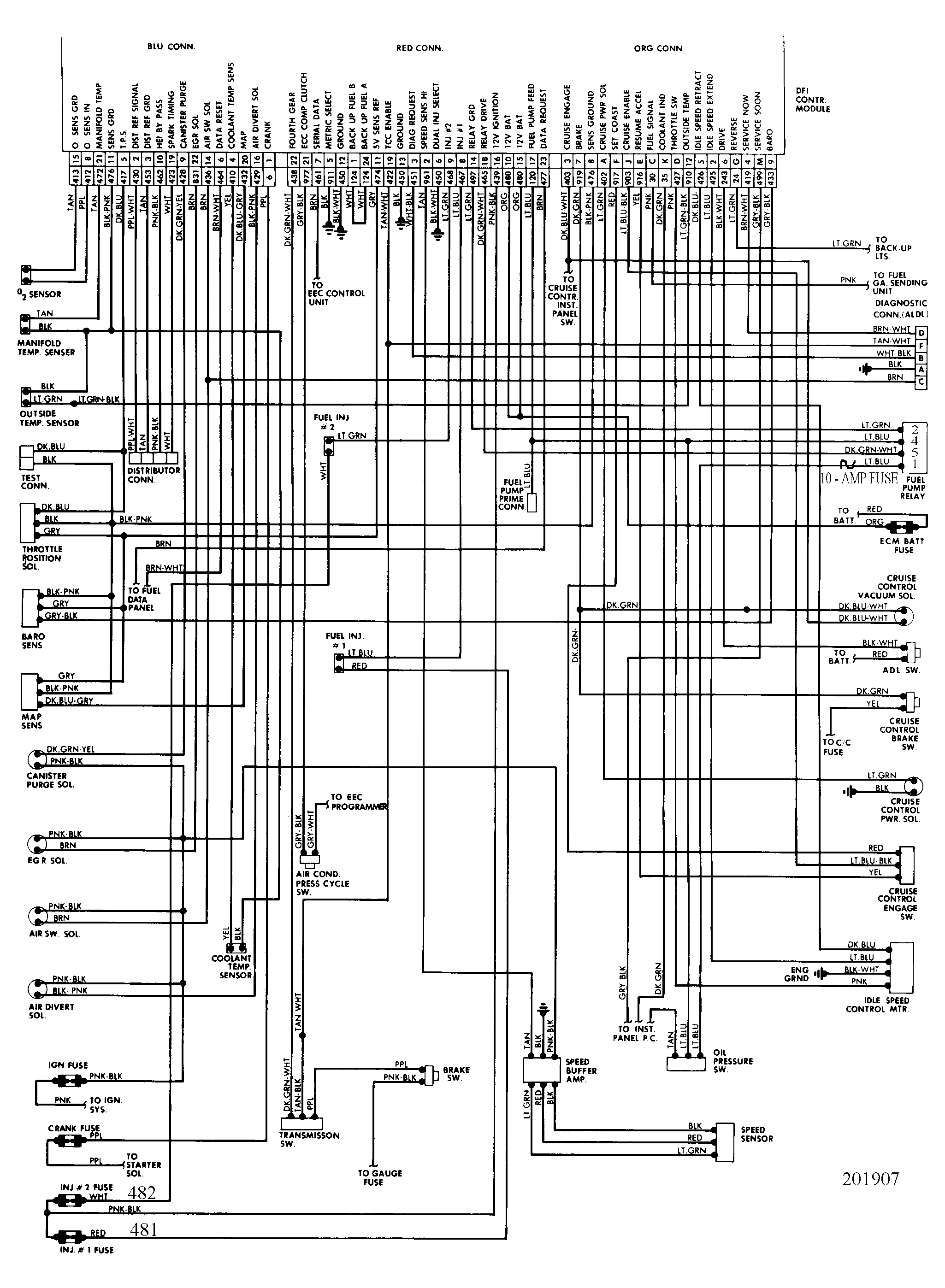

Fig 1: DFI Control System Wiring Diagram
G201907
