Chart 11B - Wrong Fuel Data Display: Notes

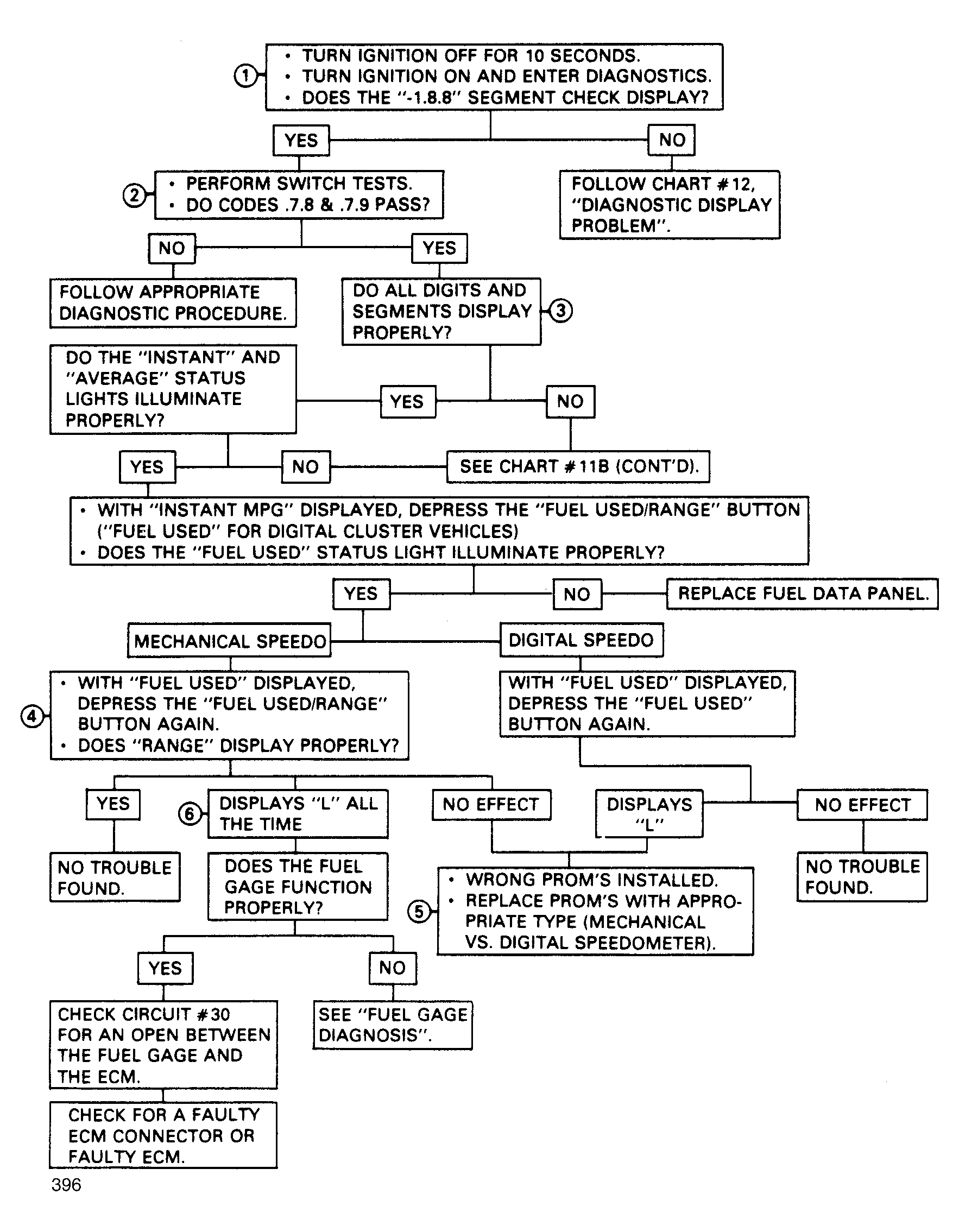

Fig 1: Performance Chart No. 11B - Improper Fuel Data Display

G396
