Code 21 - Shorted TPS Circuit: Notes

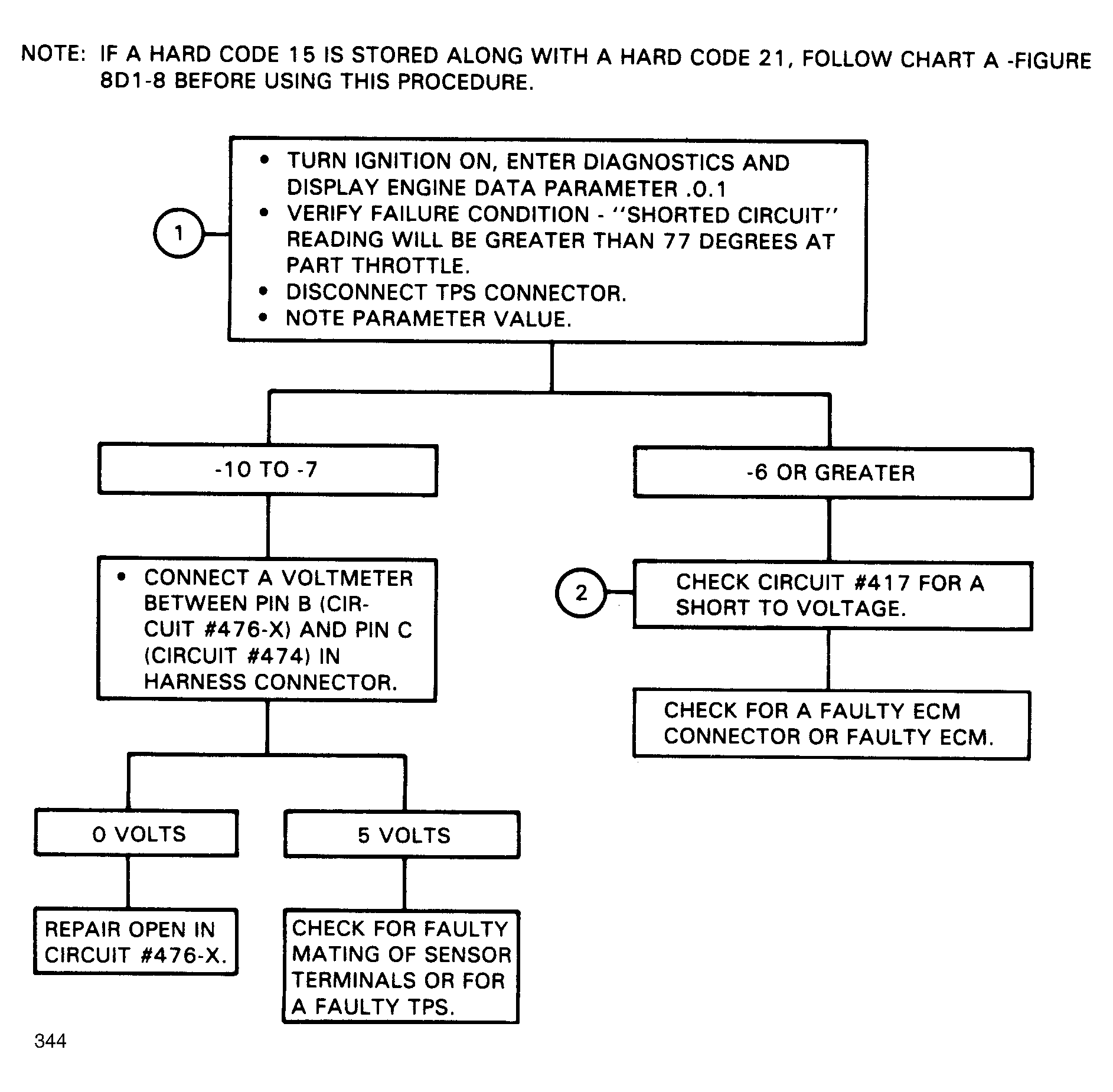

Fig 1: Flow Chart, Code 21 - Shorted TPS Circuit

G344

Fig 2: Flow Chart, Code 21 - Shorted TPS Circuit

GB0046319
