Code 24B - VSS CKT Fault: Notes

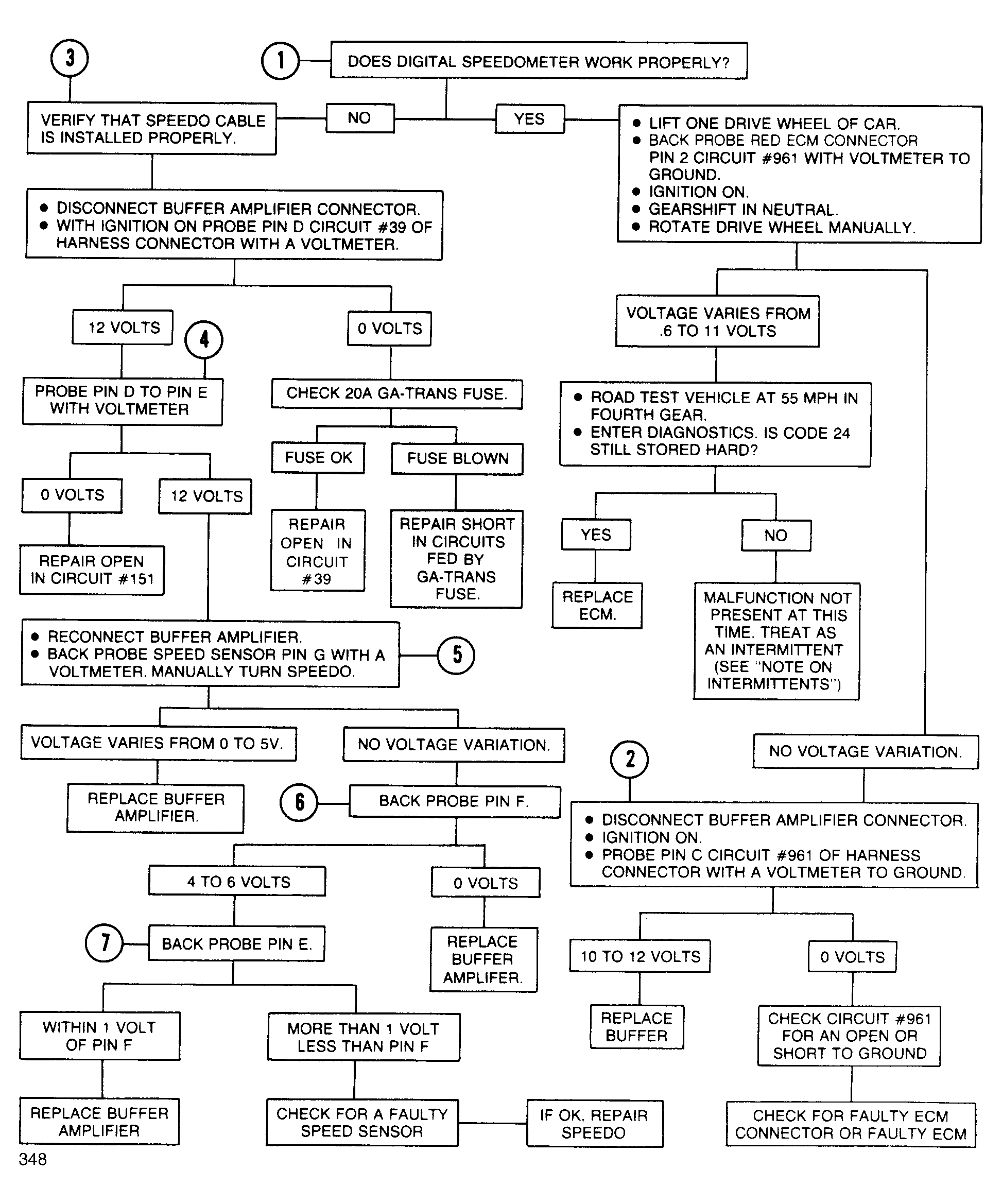

Fig 1: Flow Chart, Code 24B (W/ Digital Cluster) - Vehicle Speed Sensor (VSS) Circuit Problem

Fig 2: Flow Chart, Code 24B (W/ Digital Cluster) - Vehicle Speed Sensor (VSS) Circuit Problem (1 Of 2)

Fig 3: Flow Chart, Code 24B (W/ Digital Cluster) - Vehicle Speed Sensor (VSS) Circuit Problem (2 Of 2)
