ECM Terminal Identification
ECM Terminal Identification

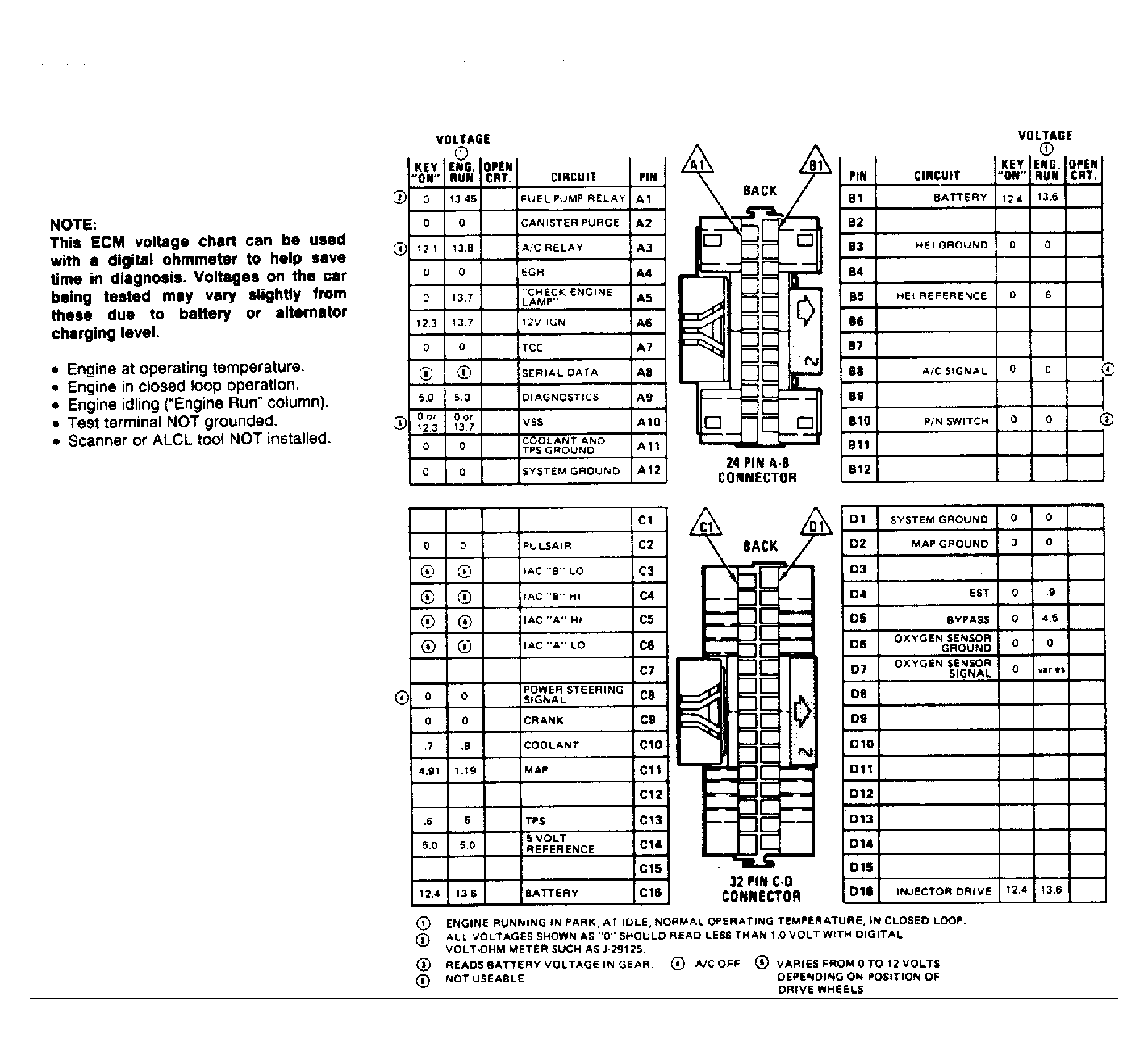

Fig 1: Throttle Body Injection Terminal ID 2.0L Engine
