Wiring Diagrams

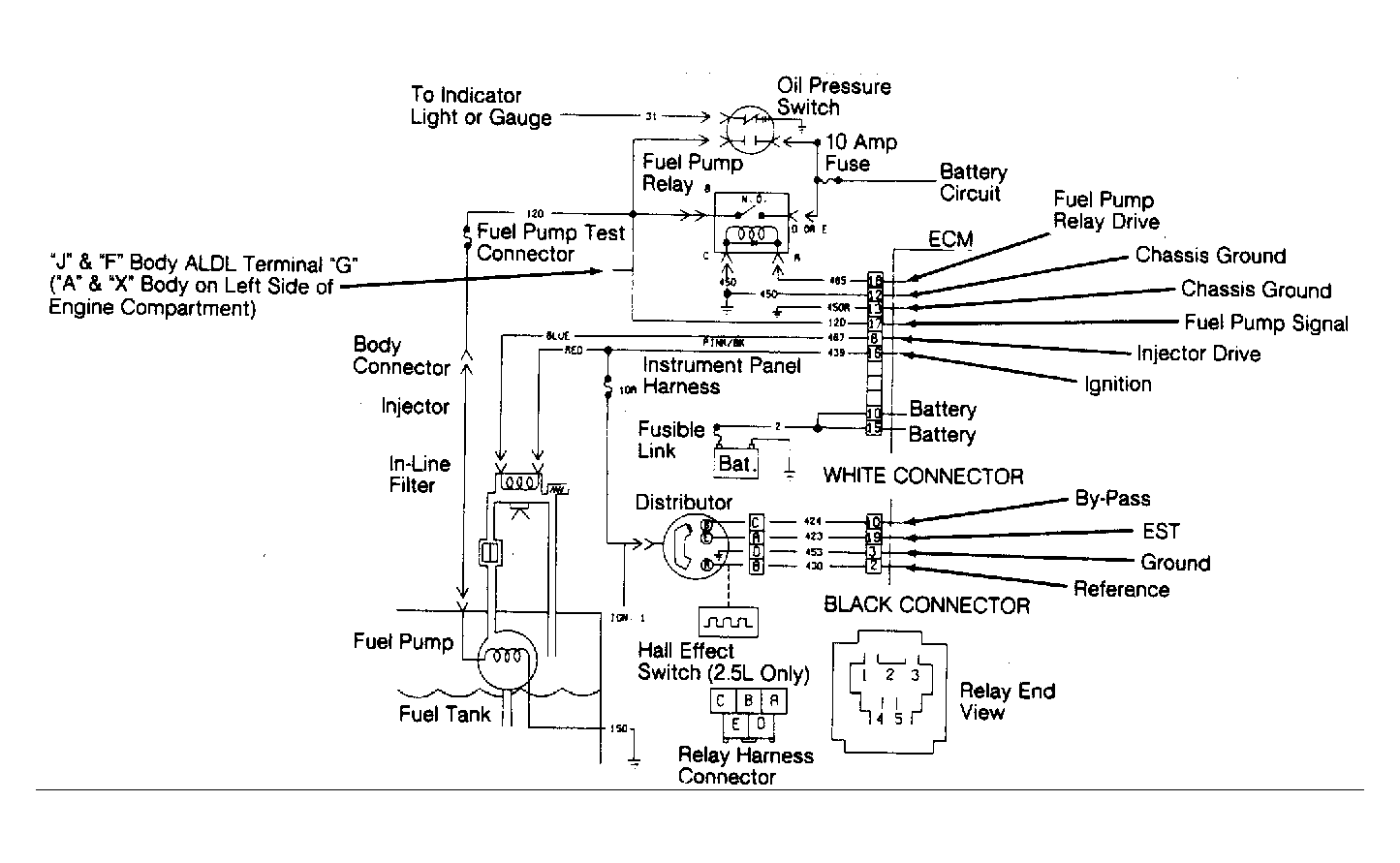

Fig 1: 1.8L and 2.5L Fuel Injection Wiring Diagram
G1684

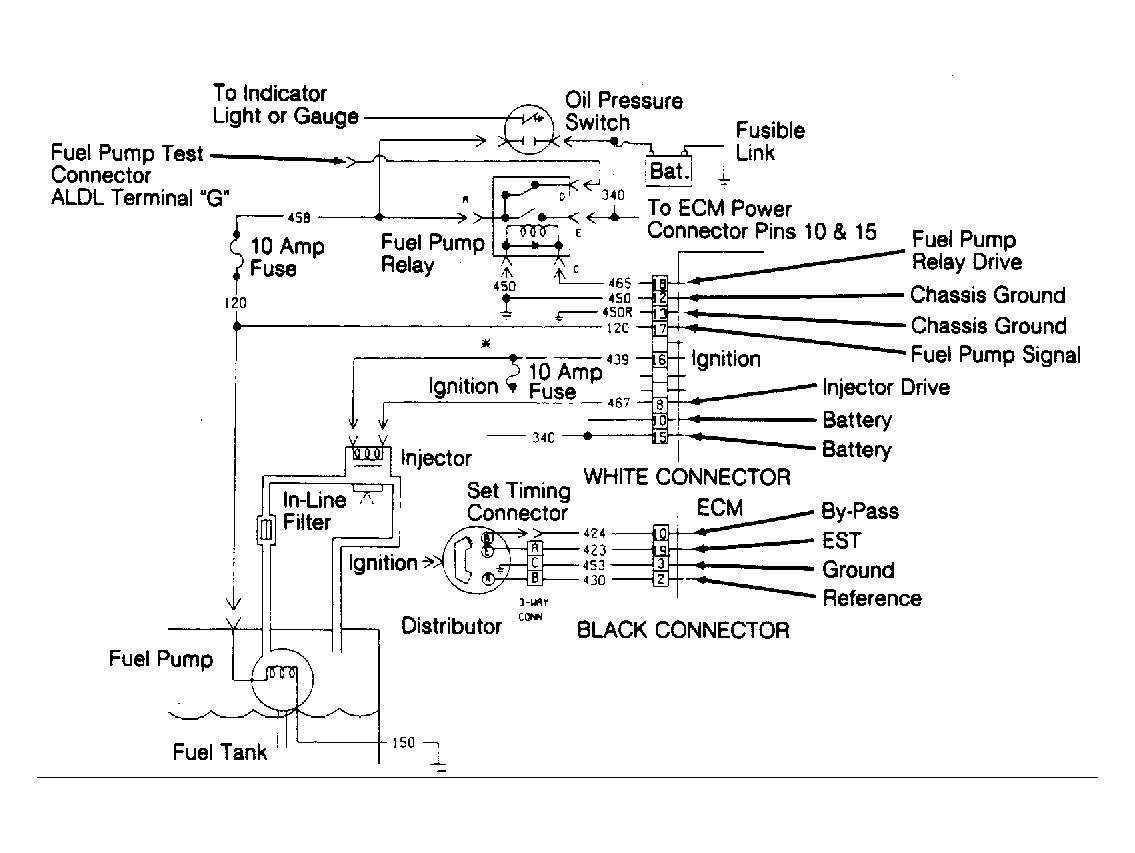

Fig 2: 2.0L Fuel Injection Wiring Diagram
G1685
