Stator Grounds

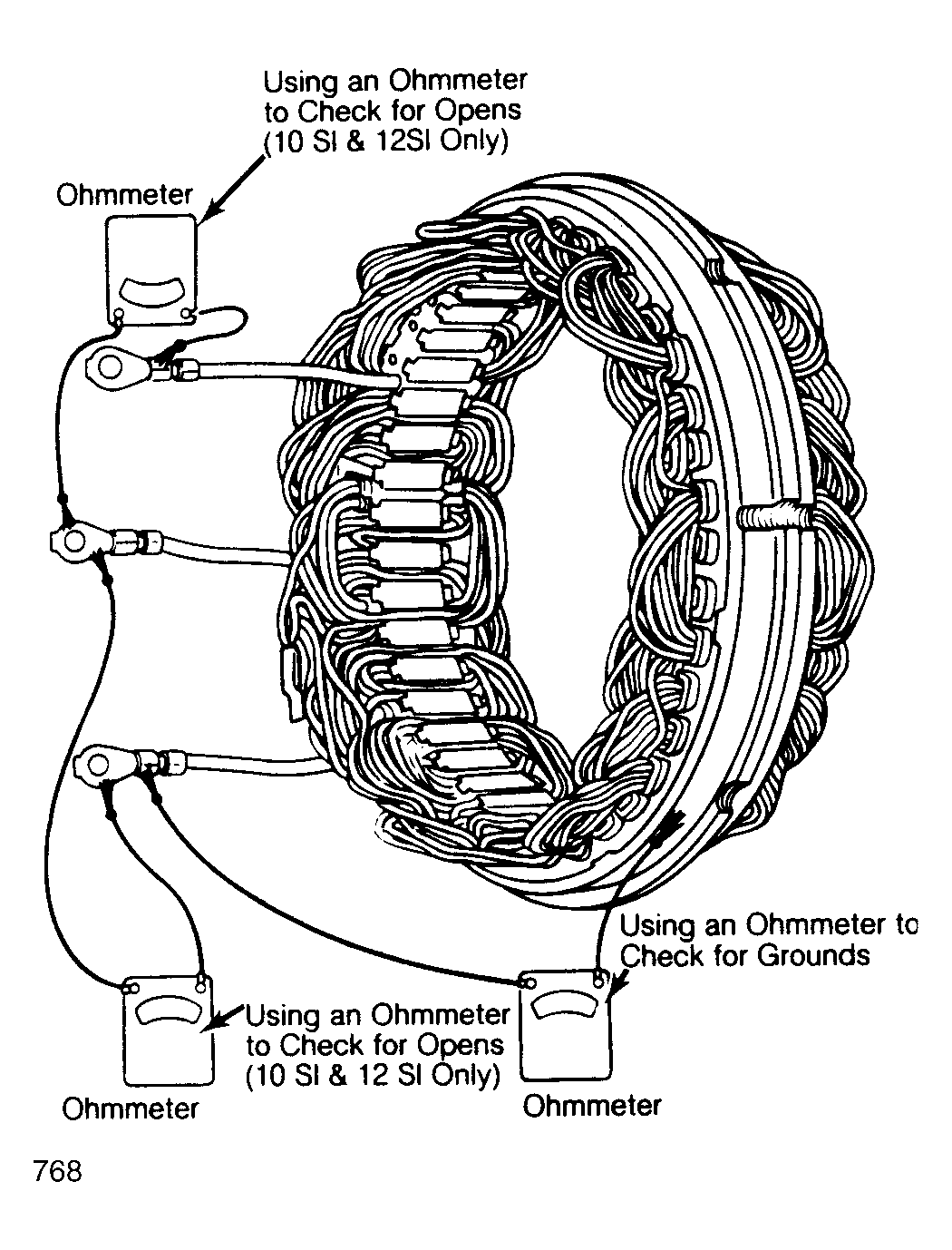

Fig 1: Bench Testing Stator for Grounds Also test opens on 10 SI and 12 SI alternators.

Check stator for grounds using an ohmmeter set to x1000 scale. Connect ohmmeter leads to stator frame and any stator lead. See Fig 1 . Resistance reading should be infinity. If resistance is low, stator is grounded and must be replaced.
