DFI Tests W/Codes
›
Diagnostic Testing
›
Code .7.6 Diagnostic Flow Chart
Code .7.6 Diagnostic Flow Chart

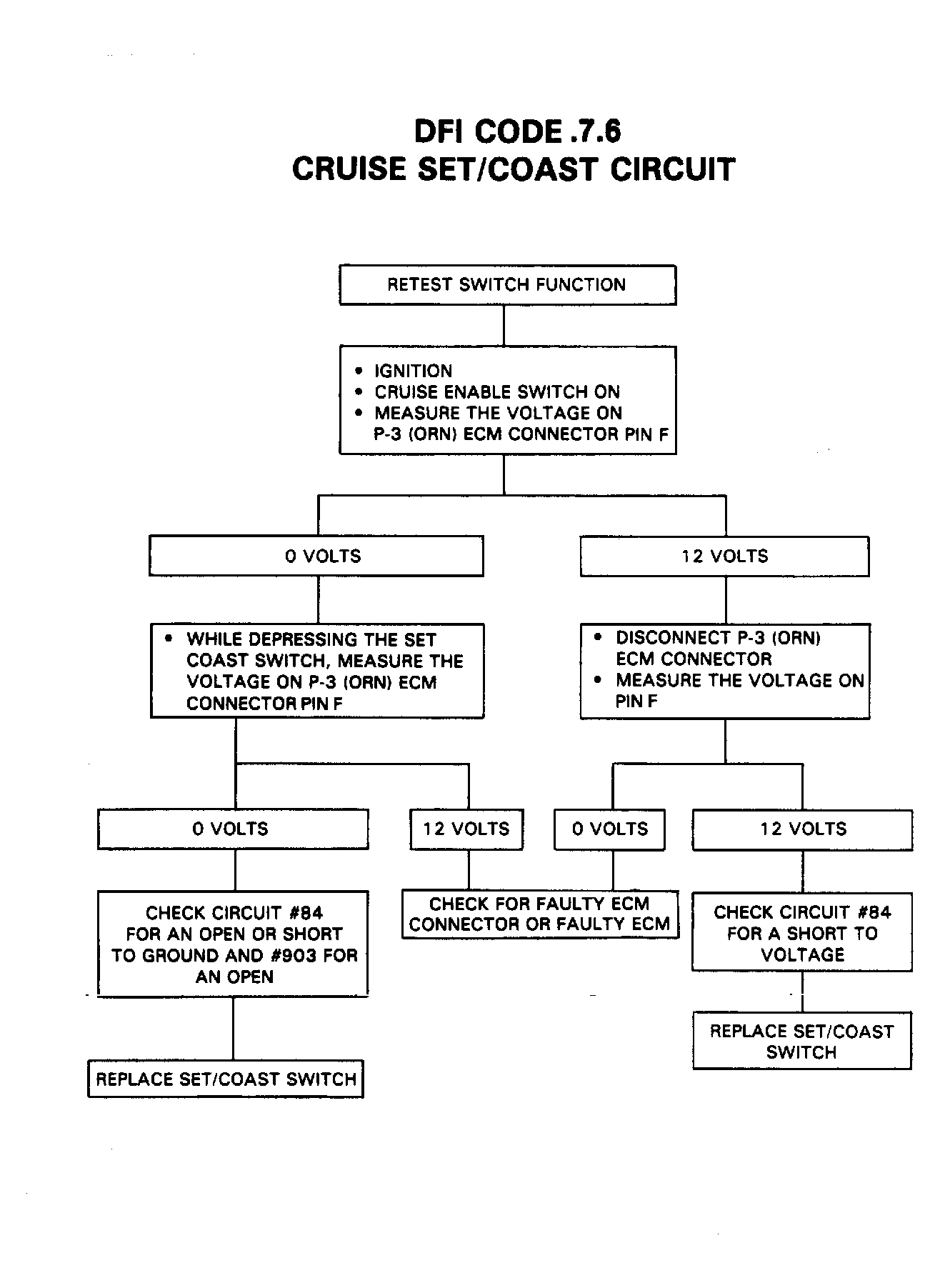

Fig 1: Trouble Code .7.6
