Code 20 Diagnostic Flow Chart

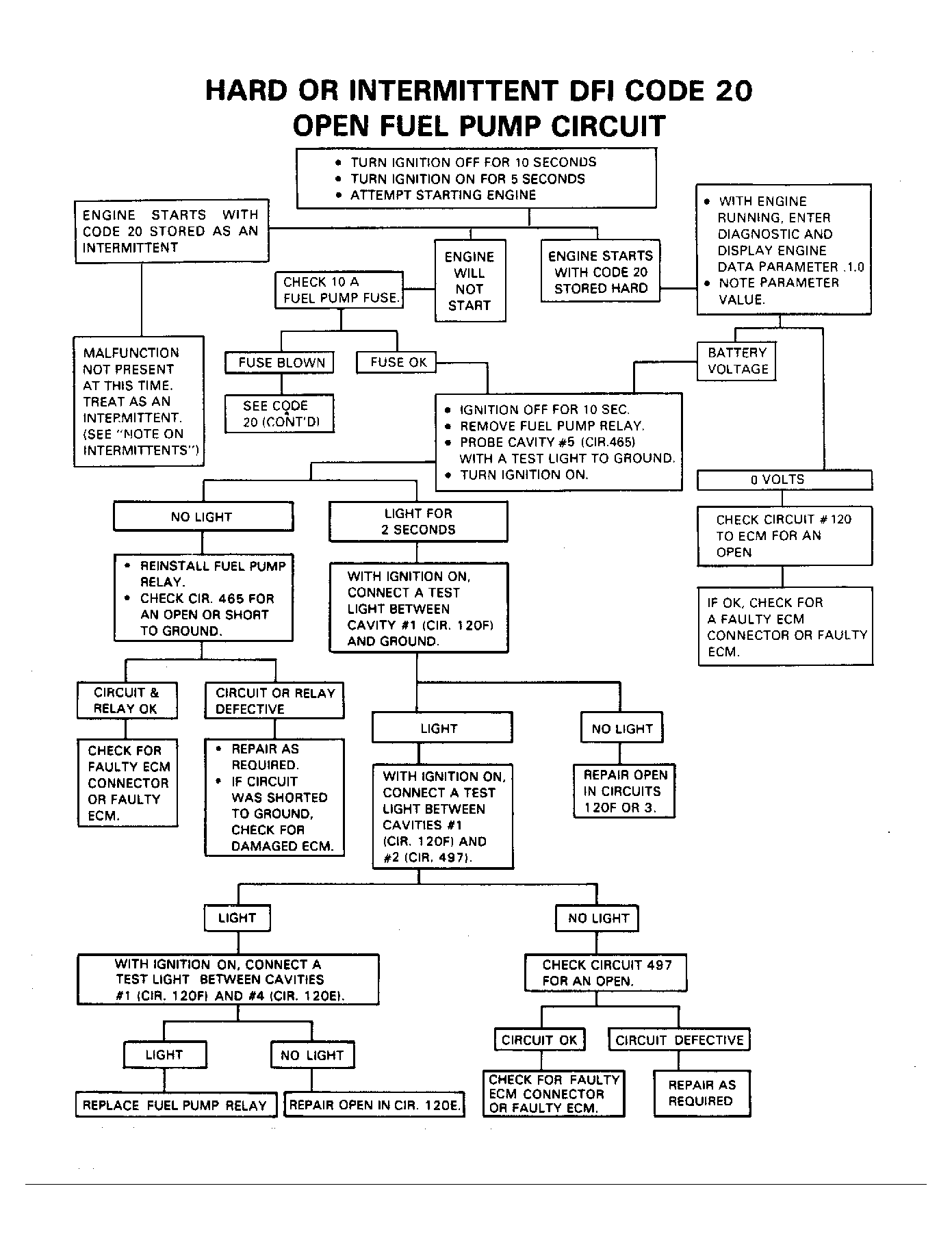

Fig 1: Hard Or Intermittent Trouble Code 20

G9219

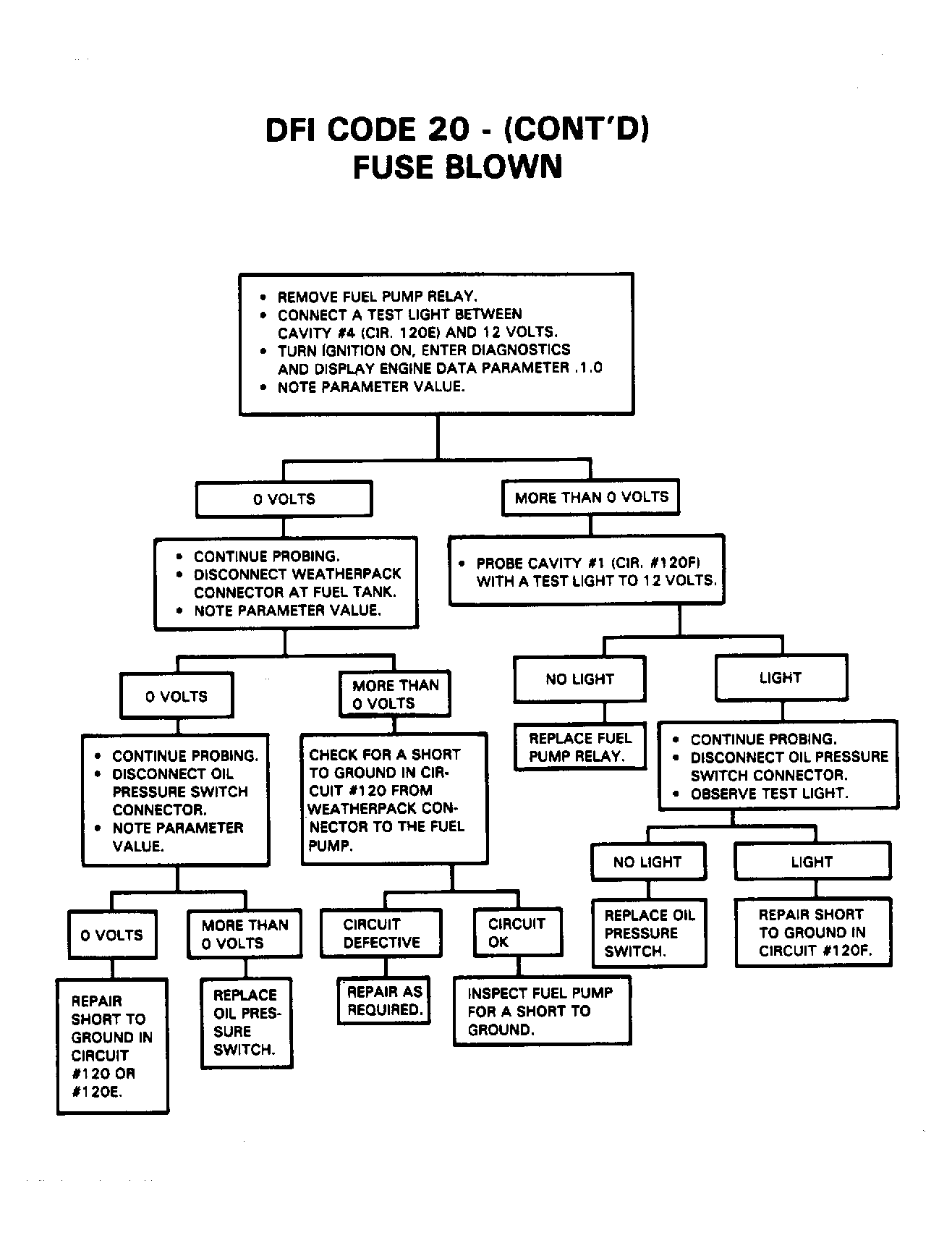

Fig 2: Hard Or Intermittent Trouble Code 20 (Cont.)

G9220
