Code 24 Diagnostic Flow Chart

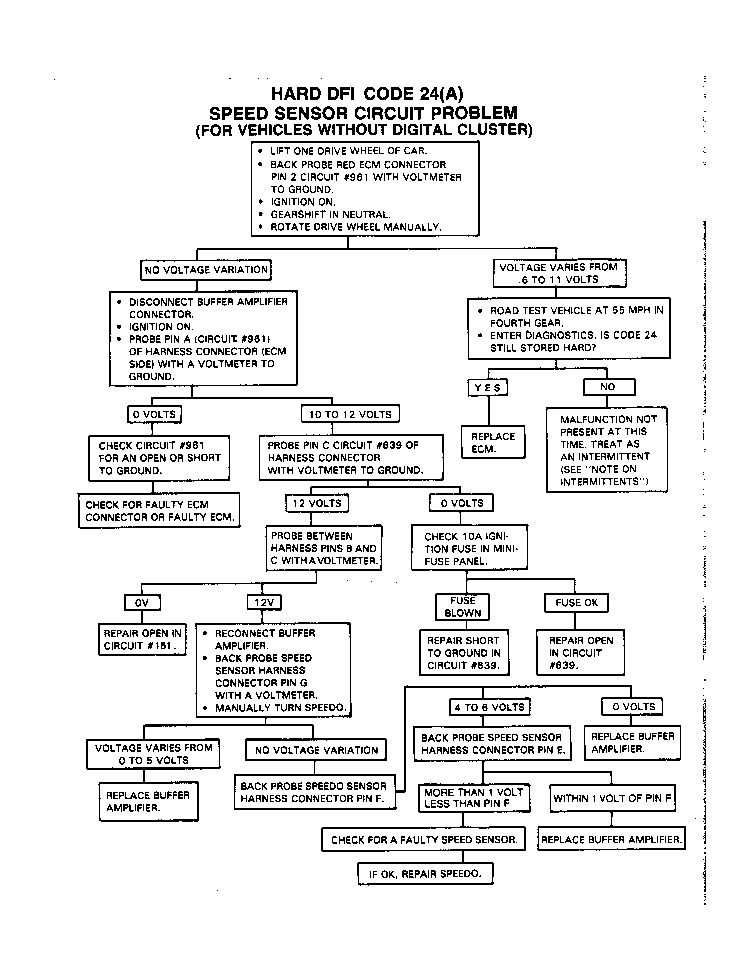

Fig 1: Hard Trouble Code 24 (Without Digital Cluster)

G9224

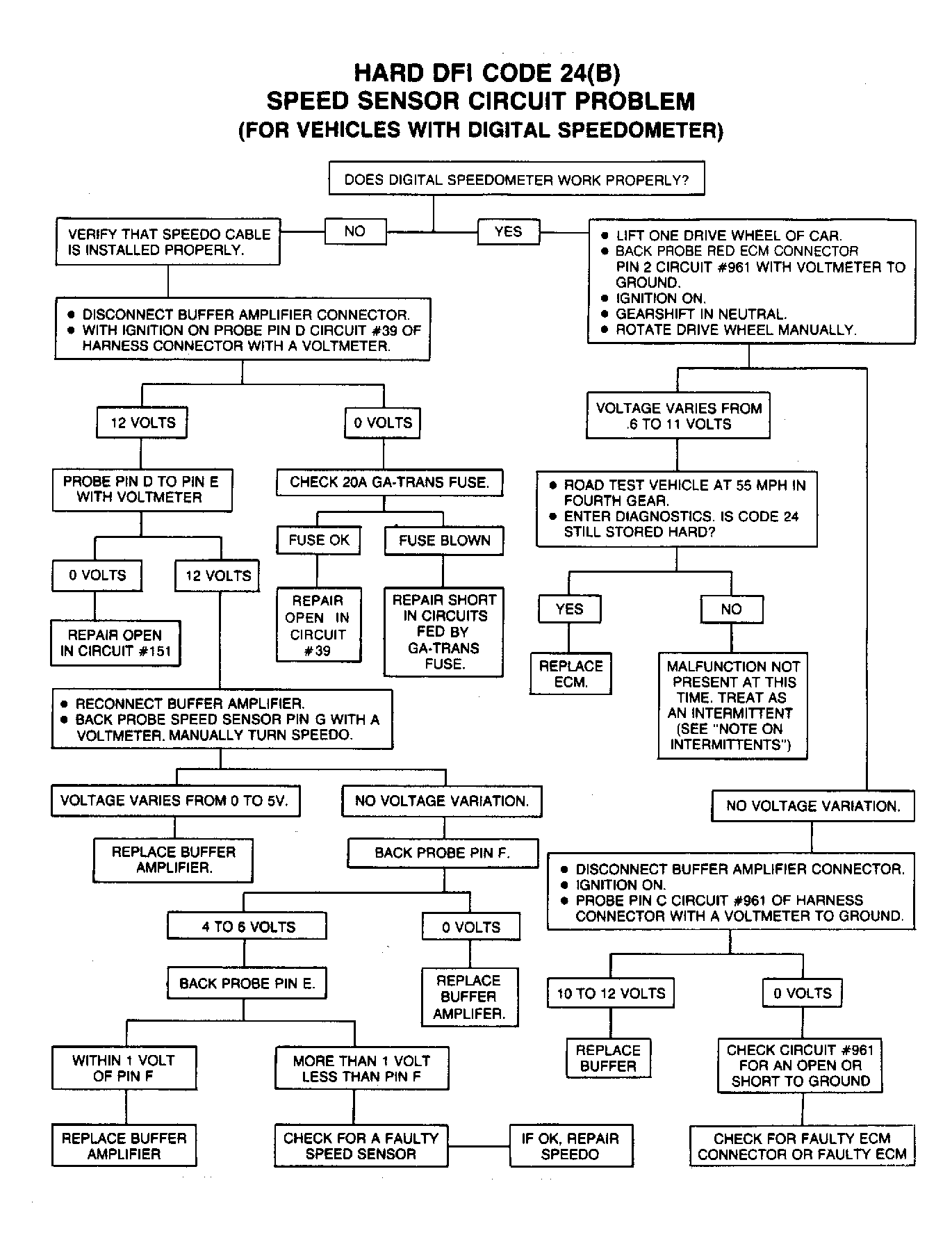

Fig 2: Hard Trouble Code 24 (With Digital Cluster)

G9225
