FixVault
Home
›
Cadillac
›
1984
›
Seville 4.1 8
›
Repair and Diagnosis
›
Engine Performance
›
System
›
DFI Tests W/Codes
›
Diagnostic Testing
›
Code 34 Diagnostic Flow Chart
Code 34 Diagnostic Flow Chart

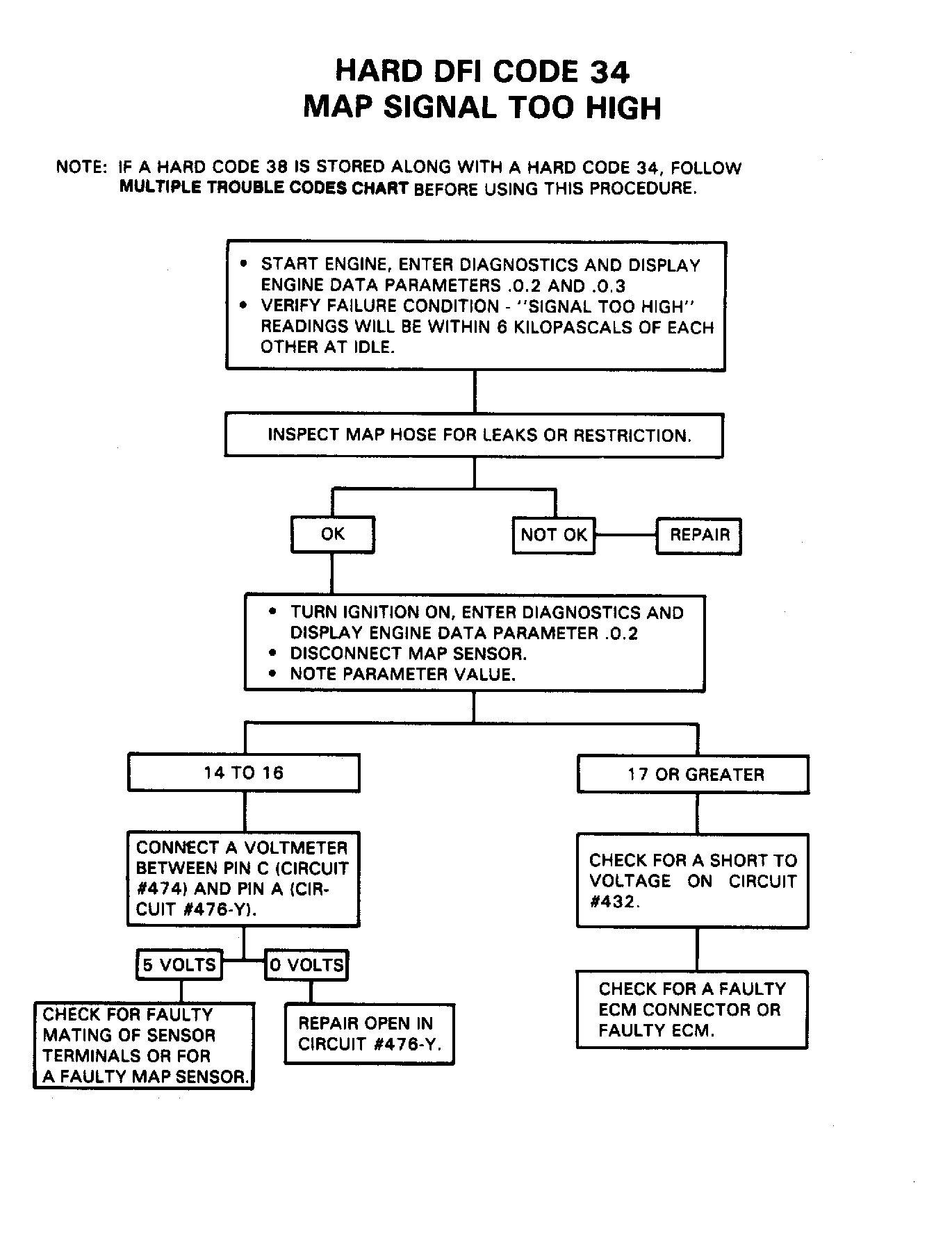

Fig 1: Hard Trouble Code 34
