FixVault
Home
›
Cadillac
›
1984
›
Seville 4.1 8
›
Repair and Diagnosis
›
Engine Performance
›
System
›
DFI Tests W/Codes
›
Diagnostic Testing
›
Diagnostic Flow Chart Code 23
Diagnostic Flow Chart Code 23

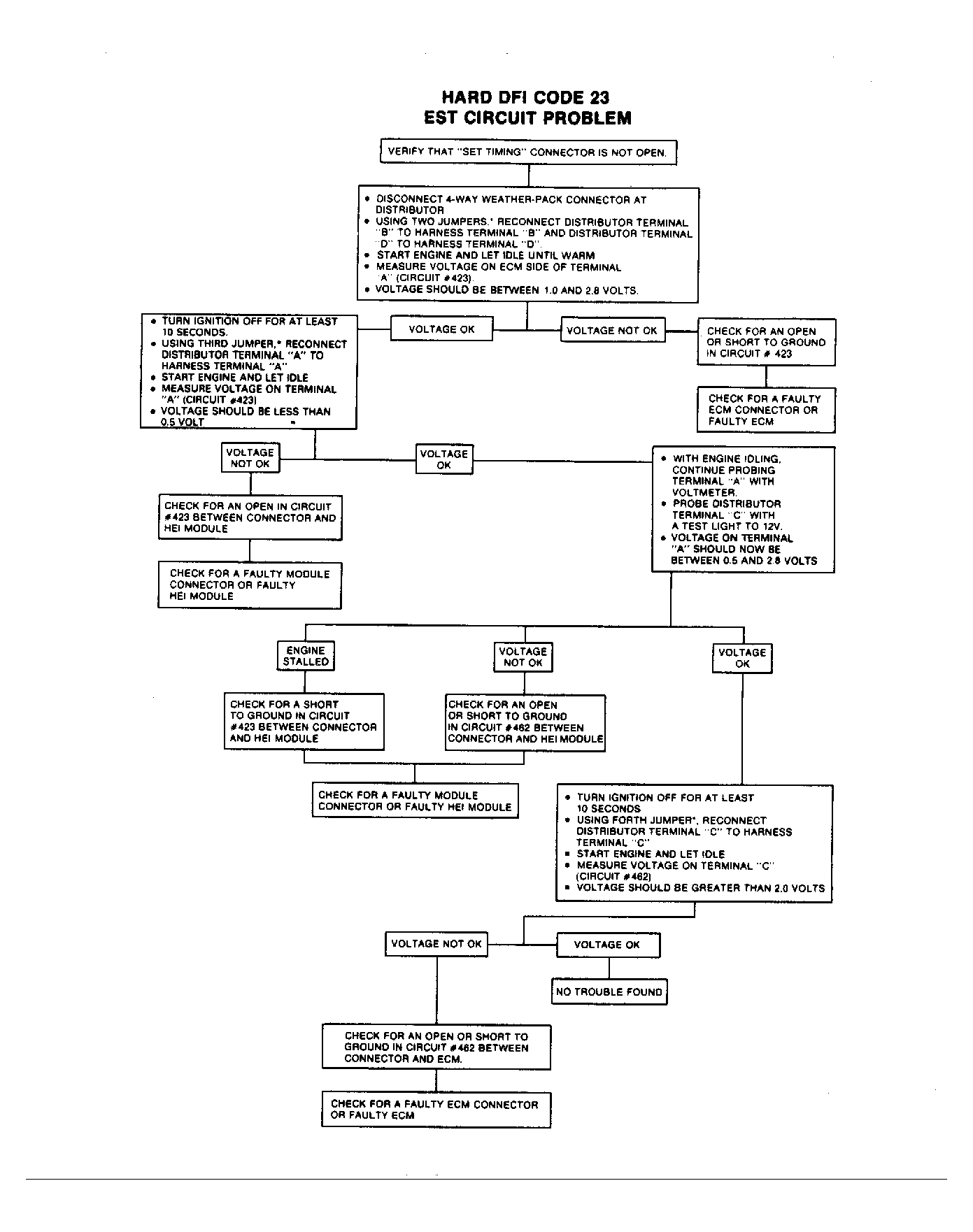

Fig 1: Hard Trouble Code 23
