Note On INTERMITTENTS

If intermittent code is being set, connect test light to circuit No. 422 on ALDL connector (pin F). Test light should see 12 volts and light. Manipulate related wiring while observing test light. If failure is induced, test light will turn off. This will help to isolate location of malfunction.

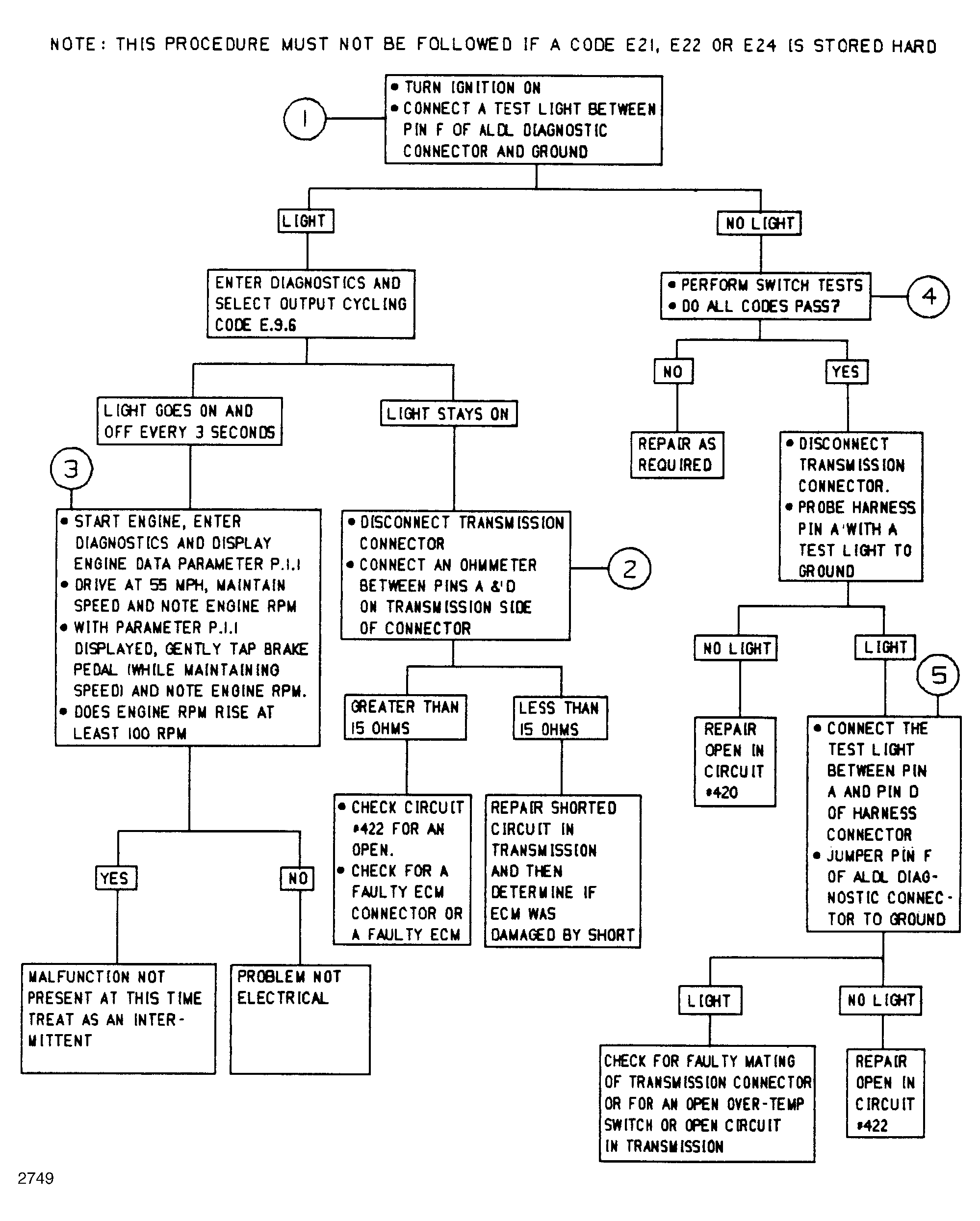

Fig 1: Hard or Intermittent Trouble Code E39
G2749

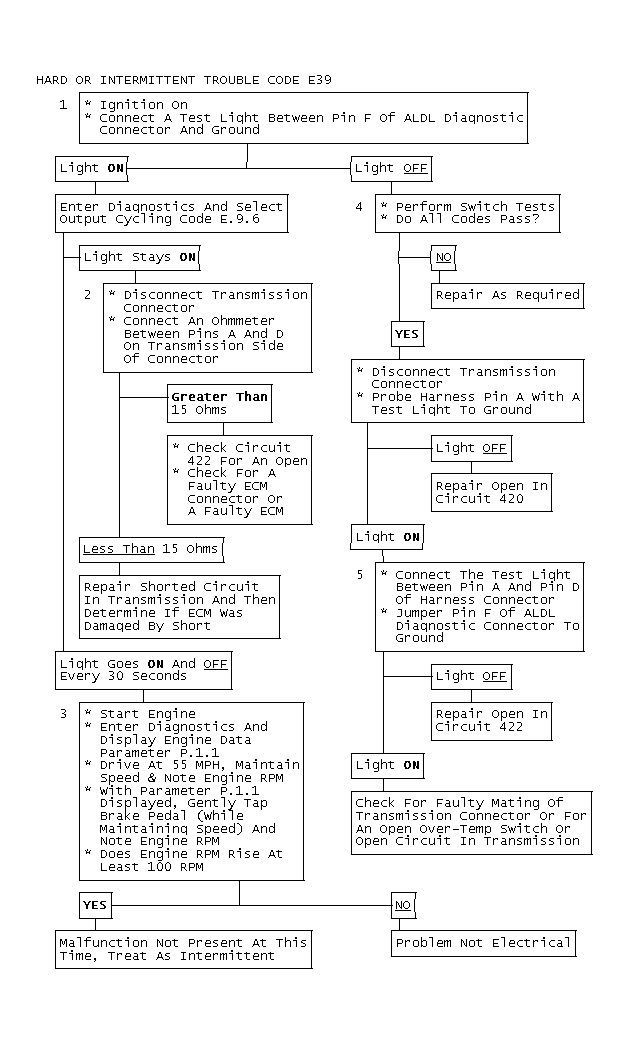

Fig 2: Hard Or Intermittent Trouble Code E39
GB0045825
