Note On INTERMITTENTS

If intermittent code is being set, manipulate related wiring while observing engine data parameter "P.0.7" at part throttle with engine warm. If failure is induced, reading will change from normal varying voltage (above .60 and below .30) to reading never going below 0.5 volt. This will help to isolate location of malfunction.

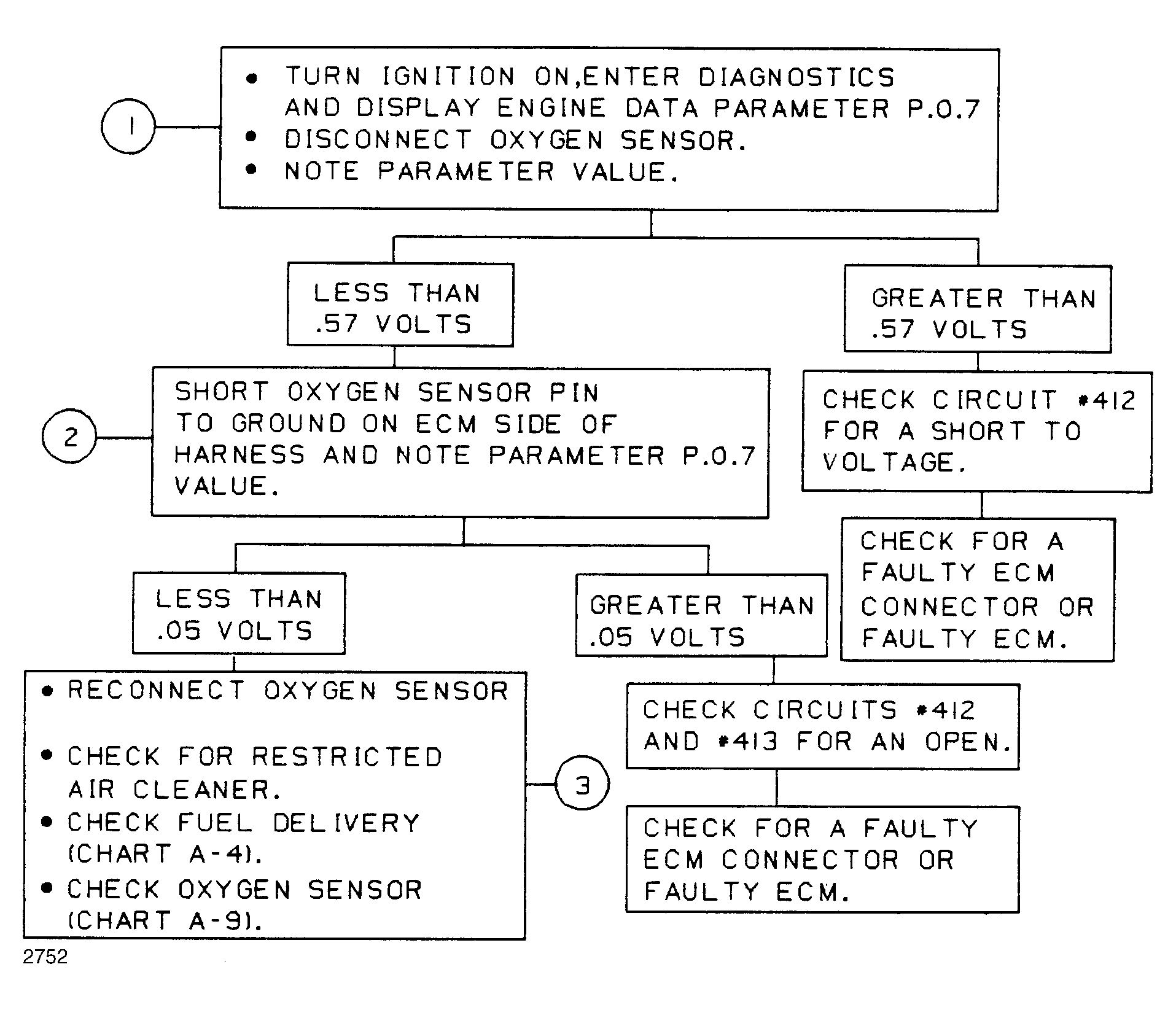

Fig 1: Hard or Intermittent Trouble Code E45
G2752
Fig 2: Hard Or Intermittent Trouble Code E45
GB0045828
